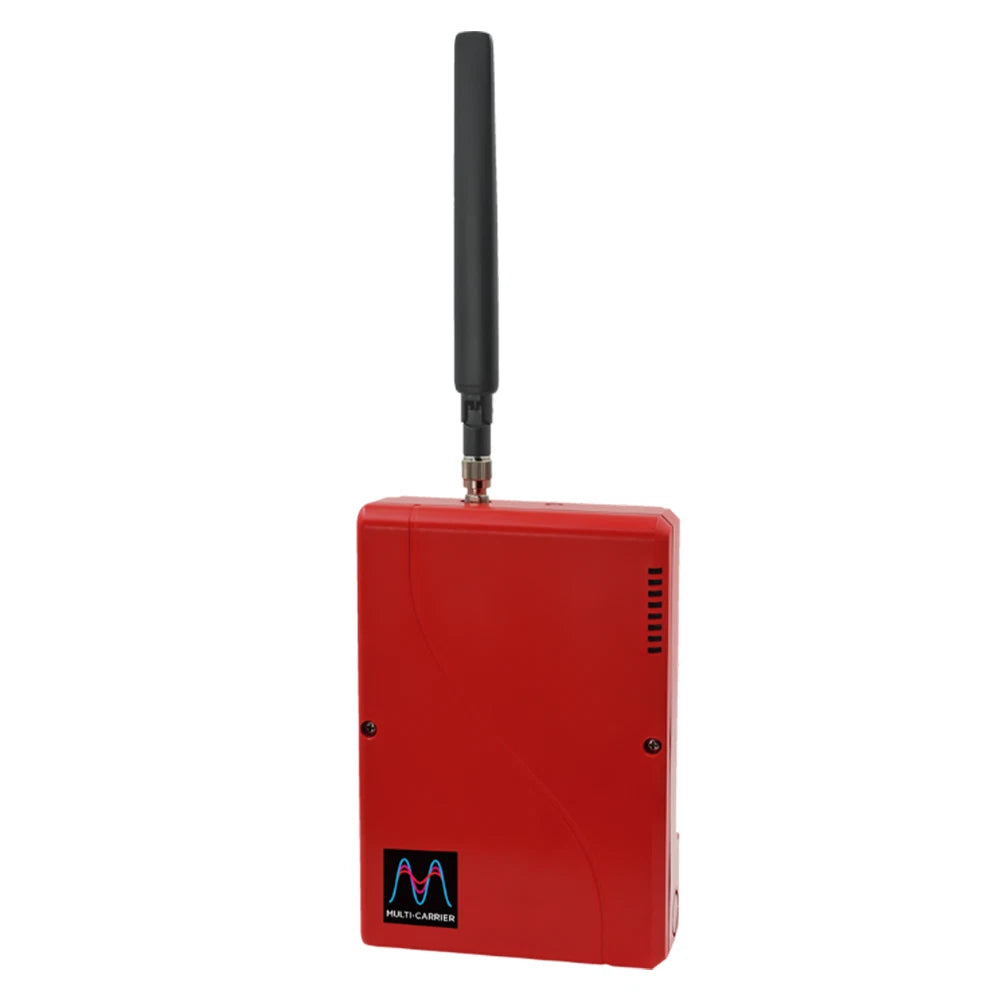

Telguard TG-7FM Multi-Carrier 5G LTE-M Sole Path Commercial Fire Alarm Communicator
- Regular price
- $437.00
- Sale price
- $437.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TG-7FM
Description
The Telguard TG-7FM is a multi-carrier 5G LTE-M sole-path cellular communicator designed for commercial fire alarm systems. It connects to compatible fire alarm control panels through a DACT interface and transmits alarm signals over available cellular networks, including AT&T, T-Mobile, and Verizon.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Telguard |
| Category | Fire Alarm Systems |
| Part Number | TG-7FM |
| Subcategory | Alarm Communicators |
| Product Type | Commercial fire alarm communicator |
| Communication Technology | 5G LTE-M cellular |
| Communication Path | Sole path |
| Supported Networks | AT&T, T-Mobile, Verizon |
| Power Supply | 12V/24V DC auxiliary power from fire alarm panel |
| Interface | DACT / dial capture |
| Supported Formats | Contact ID, SIA, Pulse 4x2/3x1, Radionics, DMP |
| Certifications | UL 864, UL 2610 |
| Enclosure Material | Red plastic |
| Conduit Knockouts | Three 1/2-inch knockouts |
| Dimensions Without Antenna | 8.25 × 5.75 × 2.0 inches |
| Enclosure Features | Built-in tamper switch and visible status LEDs |
| Package Contents | Communicator, terminal blocks, LTE antenna |
| Weight | 2.2 lbs |
Information About TG-7FM
The TG-7FM belongs to Telguard’s TG-7 commercial fire communicator series and is designed for panel-powered fire alarm communication applications. Its multi-carrier technology evaluates network performance and can automatically switch to another supported carrier when necessary. The communicator operates using the fire panel’s 12V or 24V DC auxiliary power and supports multiple alarm communication formats, including Contact ID, SIA, Pulse, Radionics, and DMP. The unit features a compact red enclosure with visible status LEDs, a built-in tamper switch, and external RSSI and reset controls.
Key Features:
- Multi-Carrier Technology: Supports AT&T, T-Mobile, and Verizon cellular networks.
- LTE-M Connectivity: Uses 5G LTE-M technology for cellular alarm signal transmission.
- Sole-Path Communication: Designed for commercial fire alarm communication applications.
- Panel Power: Operates from a compatible fire panel’s 12V or 24V DC auxiliary power source.
- DACT Interface: Connects to fire alarm panels through a digital alarm communicator transmitter interface.
- Alarm Formats: Supports Contact ID, SIA, Pulse, Radionics, and DMP formats.
- Enclosure: Features a compact red plastic enclosure with three conduit knockouts.
- Status Monitoring: Includes visible LEDs, a built-in tamper switch, RSSI access, and a reset button.
The TG-7FM delivers the reliability and precision required for commercial fire alarm signal communication and cellular monitoring installations.
