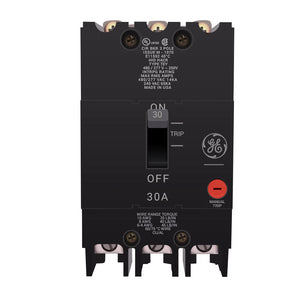

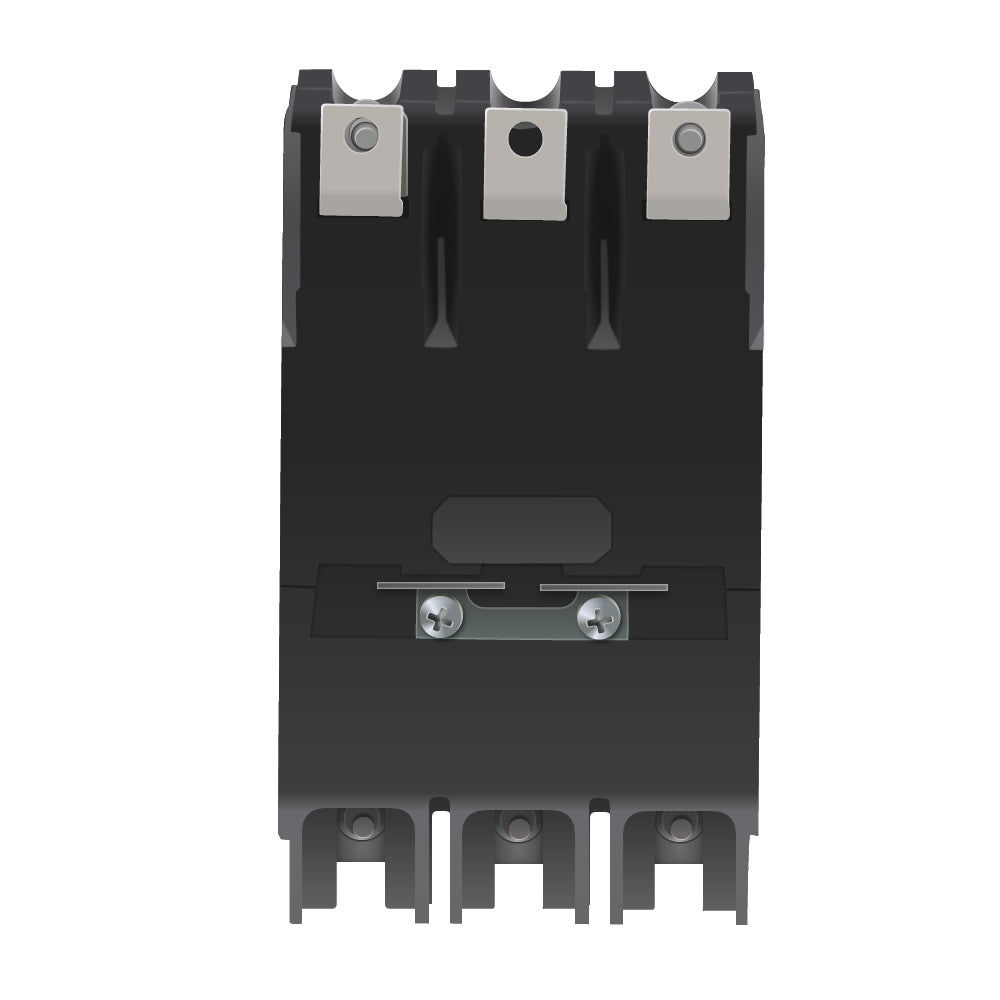

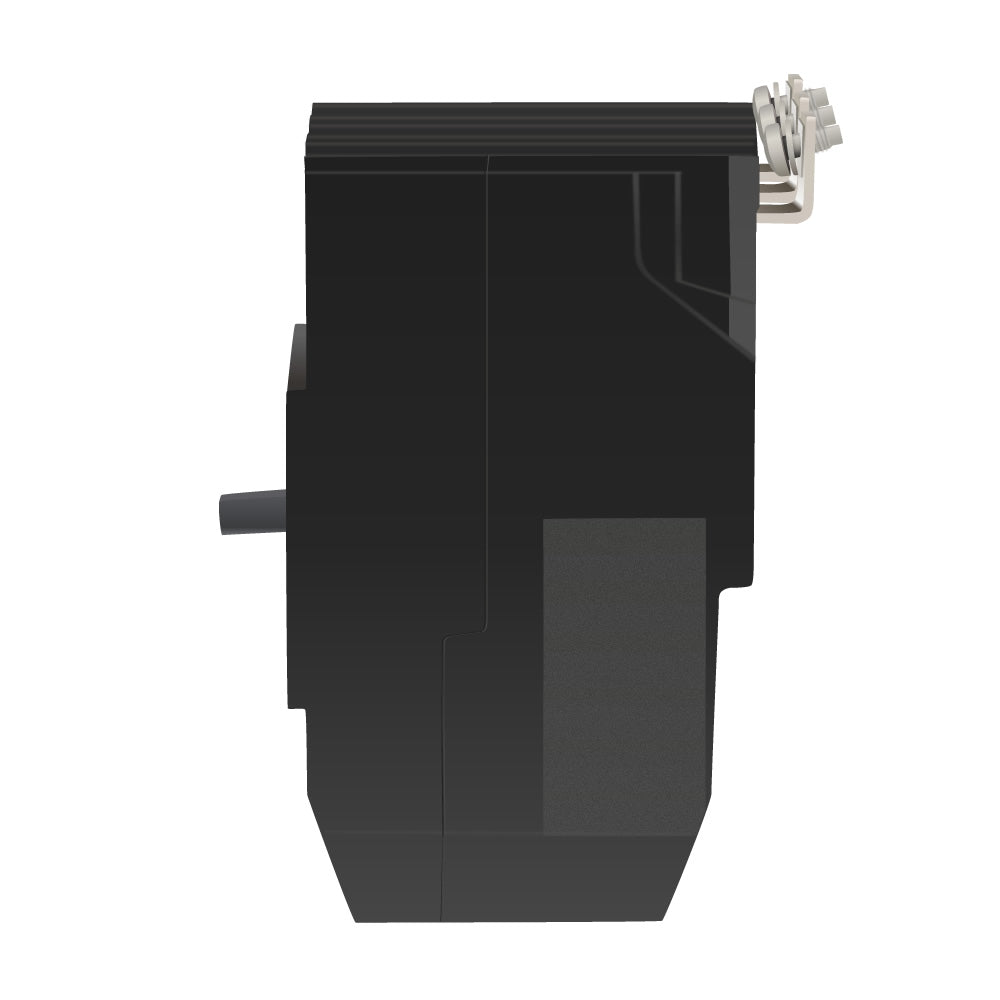

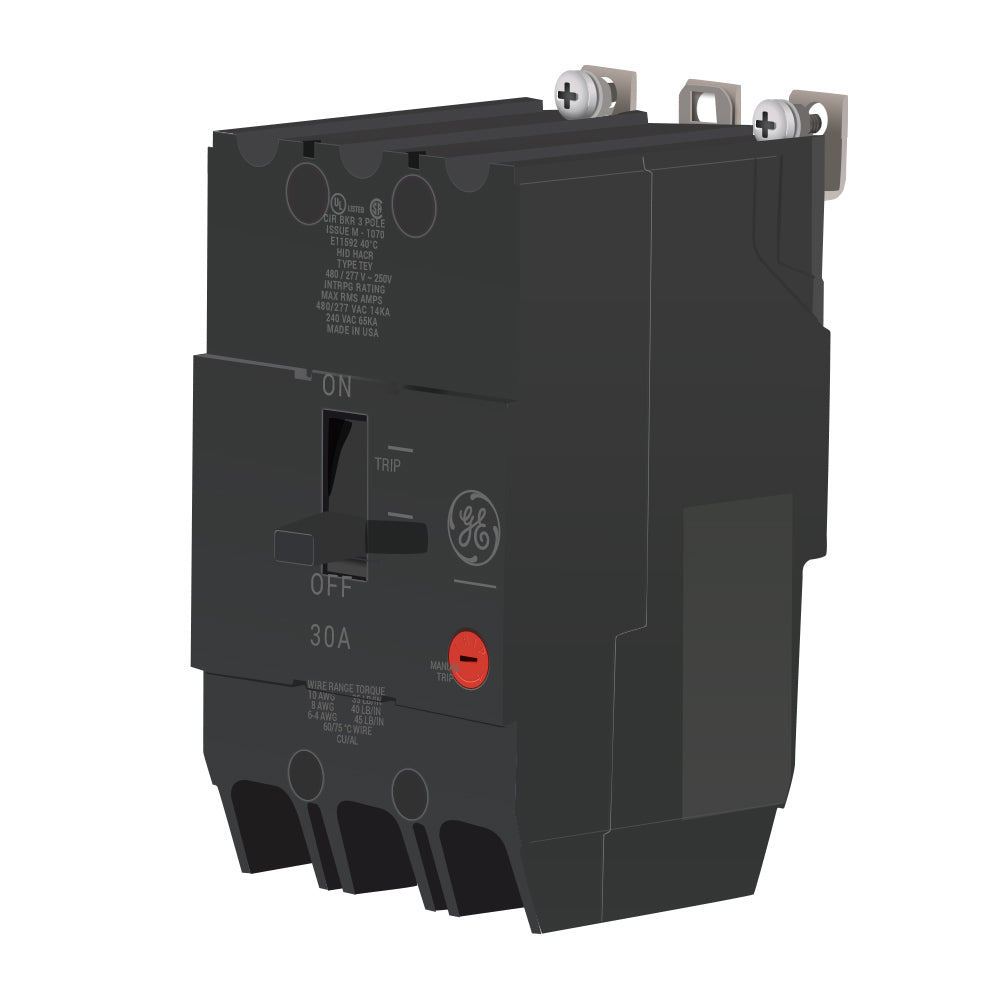

TEY330 | General Electric Q-Line Molded Case Circuit Breaker 30A 3-Pole 277/480V Bolt-O
- Regular price
- $235.00
- Sale price
- $235.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TEY330
Description
The GE TEY330 is a molded case circuit breaker engineered for branch circuit protection in three-phase electrical systems. This General Electric part number TEY330 is rated at 30 amperes and operates at 277/480 volts with a three-pole configuration. It provides thermal-magnetic protection and is designed for bolt-on installation in compatible GE distribution equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | GE |
| Category | Circuit Breaker |
| Part Number | TEY330 |
| Subcategory | Molded Case Circuit Breaker |
| Series / Family | Q-Line |
| Type | TEY |
| Current Rating | 30 A |
| Voltage Rating | 277/480 V |
| Number of Poles | 3 |
| Phase | 3 Phase |
| Protection Type | Thermal Magnetic |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Interrupting Capacity | 14 kA at 480 V |
| Connection Type | Bolt-On |
| Temperature Rating | 40 °C |
Information About TEY330
The TEY330 is a molded case circuit breaker from the General Electric Q-Line series, developed for standardized low-voltage power distribution. It is constructed with a compact molded housing and a non-interchangeable thermal-magnetic trip unit that responds to overload and short-circuit conditions. The breaker integrates into GE-compatible panelboards and switchboards using a bolt-on connection for secure electrical contact. It is commonly used in commercial and industrial environments where reliable three-phase circuit protection and standard interrupting capacity are required.
Key Features
- Q-Line series compatibility: Designed to integrate with GE Q-Line panelboards and distribution equipment.
- Thermal-magnetic protection: Combines long-time overload response with instantaneous short-circuit interruption.
- 30 ampere rating: Supports branch circuits with lower to moderate current requirements.
- Three-pole configuration: Provides coordinated protection across all phases in three-phase systems.
- 277/480 V operation: Suitable for common commercial and industrial distribution voltages.
- Bolt-on mounting design: Ensures a secure and stable mechanical and electrical connection.
- Standard interrupting capacity: Rated at 14 kA at 480 V for controlled fault interruption.
The TEY330 delivers the reliability and precision required for protecting three-phase branch circuits in commercial and industrial power distribution systems.
