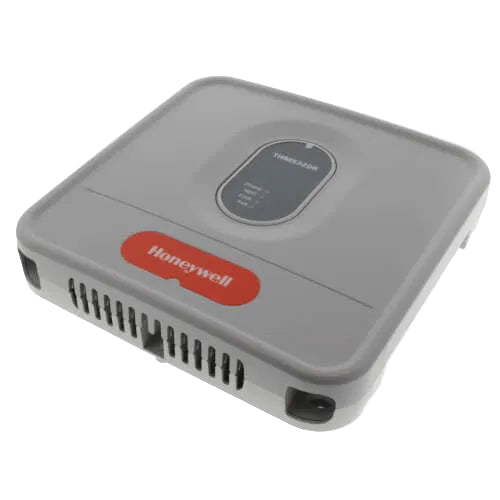

THM5320R1000 | Honeywell FocusPRO Equipment Interface Module
- Regular price
- $172.00
- Sale price
- $172.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: THM5320R1000
Description
The Honeywell THM5320R1000 FocusPRO Equipment Interface Module enables wireless communication between HVAC equipment and compatible RedLINK thermostats. Designed to eliminate the need for additional wiring, it streamlines installation while providing reliable control of heating and cooling systems. Its robust interface supports multiple system types, enhancing flexibility and efficiency in residential and commercial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | HMI / MMI / OIT |
| Subcategory | Operator Interface |
| Part Number | THM5320R1000 |
| Application | Gas, oil, electric, heat pump, forced air, hot water, steam, gravity |
| Color | Gray |
| Stages | Up to 3 Heat/2 Cool (HP) or 2 Heat/2 Cool (Conventional) |
| Terminal Designations | C, R, Rc, Rh, W-O/B, W2-Aux/E, Y, Y2, G, L, RAS |
| Electrical Ratings | 18–30 VAC, 50/60 Hz |
| Cool Current | 1.0 A running |
| Heat Current | 1.0 A running |
| Fan Current | 0.6 A running |
| Voltage | 18–30 VAC |
| Operating Temperature (F) | –40°F to 165°F |
| Operating Temperature (C) | –40°C to 73.9°C |
| Operating Humidity | 5–95% RH, non-condensing |
| Dimensions (in.) | 8 1/8 H × 8 W × 1 7/8 D |
| Dimensions (mm) | 206 H × 203 W × 47 D |
Information About THM5320R1000
The THM5320R1000 serves as the equipment-side wireless bridge for Honeywell’s FocusPRO and RedLINK-enabled thermostat systems. By converting wired HVAC equipment connections into a wireless communication path, it allows thermostats to be relocated or upgraded without running new cables. This makes it particularly valuable in retrofit environments or buildings with limited wiring access. Supporting up to 3 heat/2 cool heat pump systems or 2 heat/2 cool conventional systems, the module provides broad compatibility with gas, oil, electric, heat pump, steam, hot water, and gravity systems. Its quick-connect terminal blocks and clearly labeled terminals simplify installation and reduce setup time. LED indicators offer immediate visual feedback on power and system status. Rated for operation in harsh environmental conditions—from –40°F to 165°F and up to 95% non-condensing humidity—the THM5320R1000 is engineered for reliability across a wide range of applications. Powered by Honeywell’s RedLINK wireless technology, the module ensures interference-free communication, making it a dependable solution for modern HVAC control systems.
Key Features:
- RedLINK wireless technology: Provides reliable, interference-free communication.
- Eliminates rewiring: Enables thermostat relocation or system upgrades without new cables.
- Broad HVAC compatibility: Supports gas, oil, electric, heat pump, hot water, steam, and gravity systems.
- Supports up to 3 Heat/2 Cool HP or 2 Heat/2 Cool conventional systems.
- Quick-connect terminal blocks: Streamline installation and reduce wiring errors.
- LED indicators: Provide clear visual status for power and system operation.
- Input for return air sensor: Enhances system control and monitoring.
- Wide environmental tolerance: Operates effectively in extreme temperature and humidity ranges.
The THM5320R1000 delivers the reliability and flexibility required for efficient wireless HVAC control.
