THQB32020 | General Electric 20 Amp Circuit Breaker
- Regular price
- $64.00
- Sale price
- $64.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: THQB32020
Description

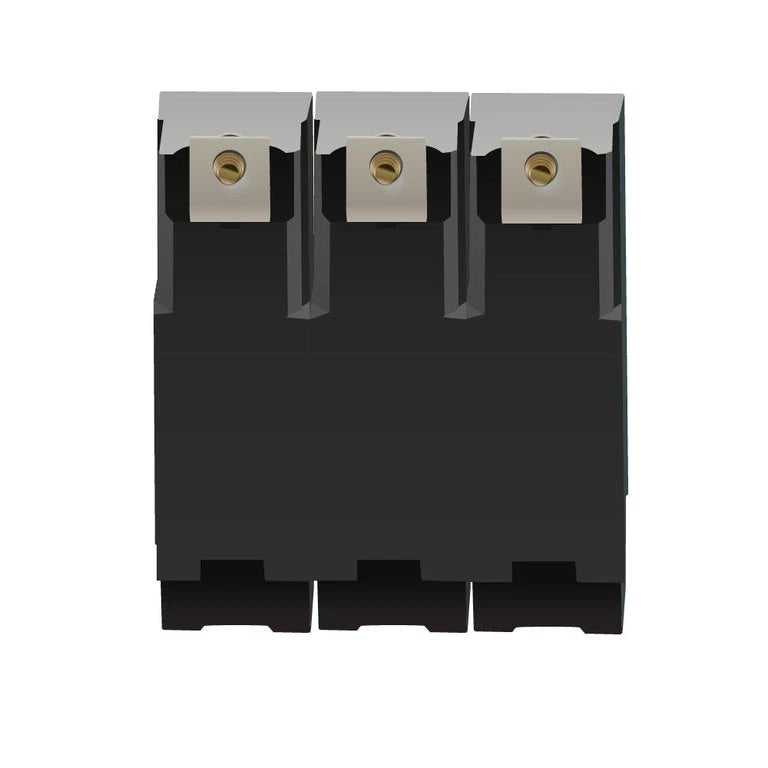

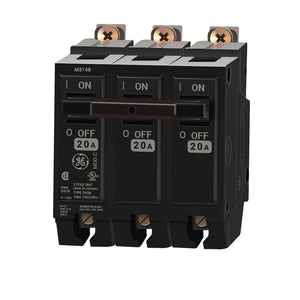

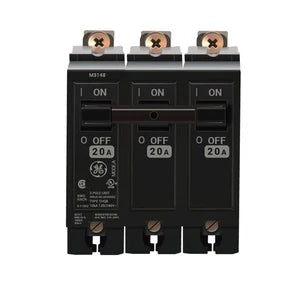

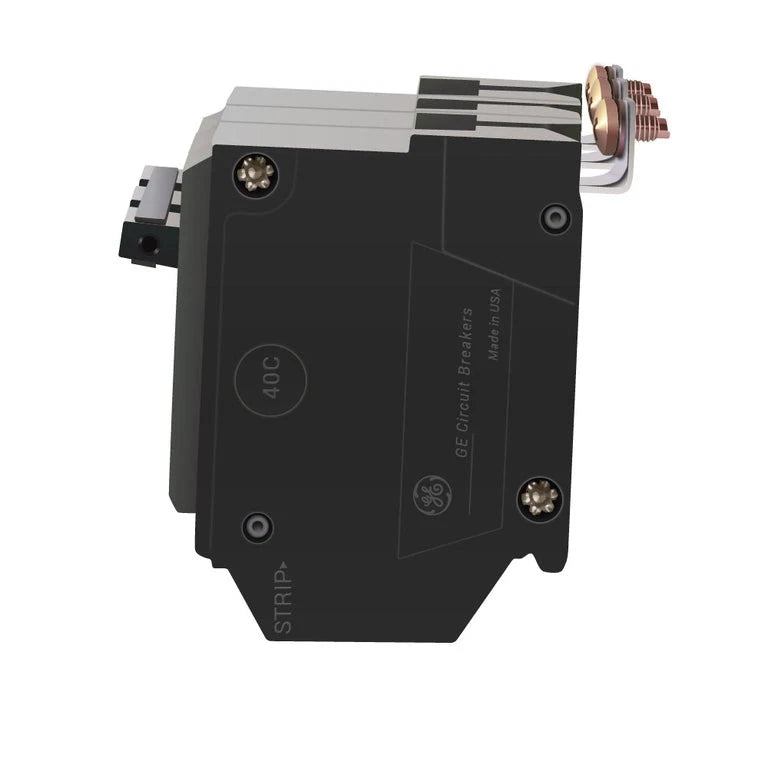

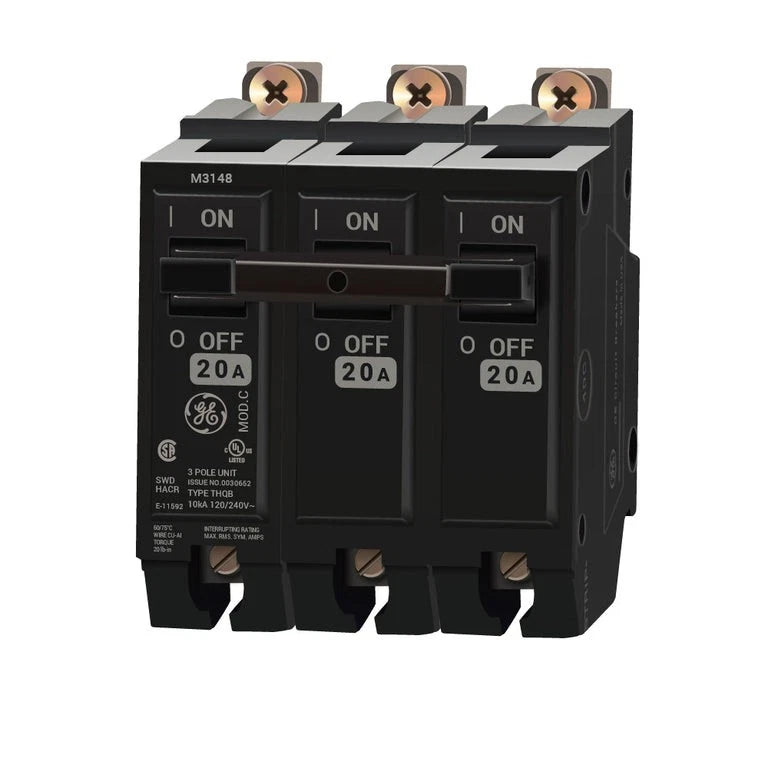

The THQB32020 is a 3-pole, 20 Amp circuit breaker from General Electric's THQB Bolt-On series, designed for residential and commercial applications. It features a compact, thermal-magnetic design with bolt-on connectors for secure attachment to bus connections in load centers and lighting panels. Operating at 240 Volts, it offers an interrupting rating of 10,000 Amperes.
Technical Specifications
|
Brand |
GE |
|
Voltage Rating |
120/240 VAC |
|
Amperage Rating |
20 A |
|
Interrupt Rating |
10 kA |
|
Frame |
THQB |
|
Trip Type |
LI/Non-Interchangeable Thermal Magnetic |
|
Number Of Poles |
3 |
|
Phase |
1 |
|
Wire Size |
14 to 8 AWG |
|
Mounting Type |
Bolted-On |
|
Temperature Rating |
60 to 75 deg C |
|
Dimensions |
2-3/8 in L x 3 in W x 3-9/32 in H |
Information About THQB32020
The THQB32020 is part of General Electric's THQB series of circuit breakers, designed specifically for residential and commercial applications. These thermal-magnetic devices are compact, measuring 1 inch in width per pole. They are equipped with bolt-on connectors that facilitate secure attachment to bus connections in load centers and lighting panels.
The THQB32020 breaker is designed to provide reliable circuit protection in three-phase electrical systems, offering a robust interrupting rating of 10,000 Amperes to safely handle fault conditions. Its compact dimensions make it suitable for installations where space is limited, such as in residential load centers or commercial lighting panels.
With a voltage rating of 240 Volts and an amperage rating of 20 Amps, this breaker meets the necessary requirements for various electrical applications, ensuring compliance with both CSA and UL safety standards. It is recognized as an authentic General Electric product, guaranteeing quality and reliability in circuit protection solutions for diverse industrial and domestic environments.
Manufacturer information
General Electric (GE) is a multinational conglomerate founded in 1892, based in the United States. It operates in various industries, including aviation, healthcare, renewable energy, and power. GE is known for its innovations in technology, manufacturing, and infrastructure solutions.
