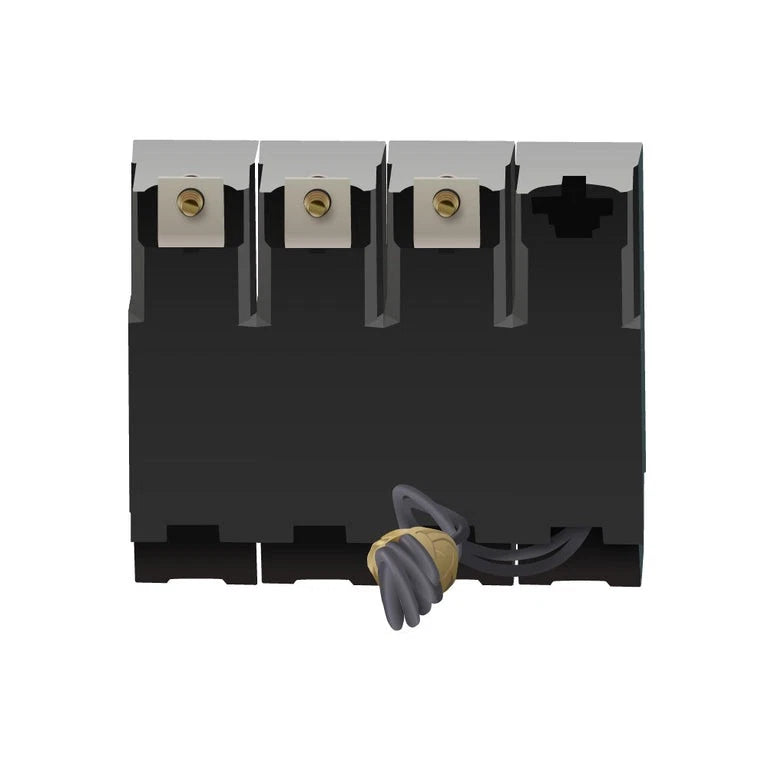

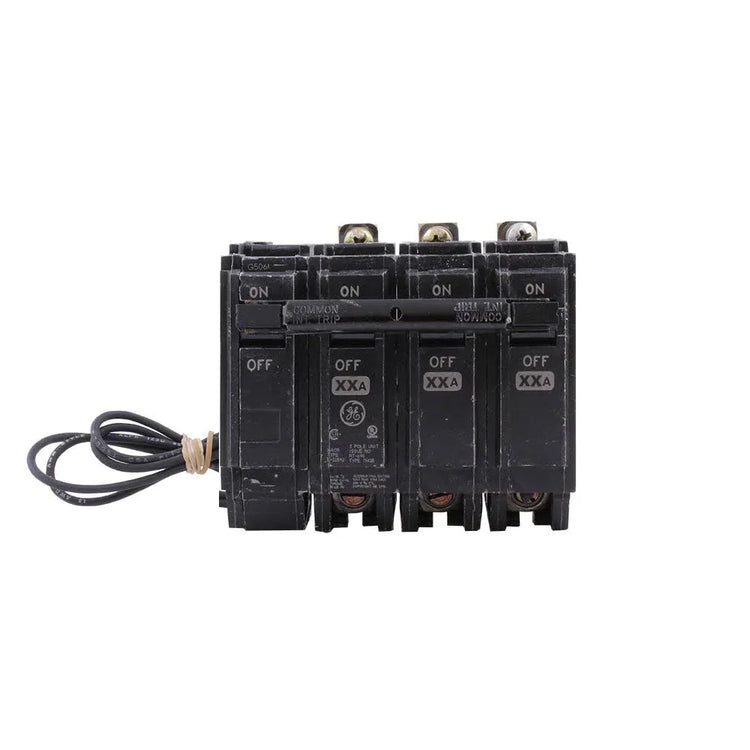

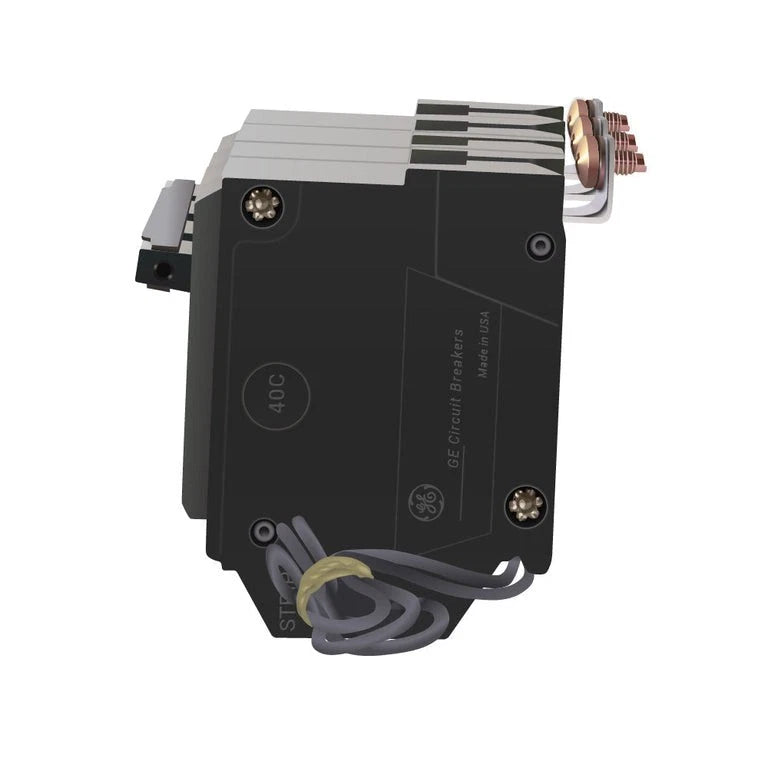

THQB32100ST1 | General Electric 100 Amp Shunt Trip Circuit Breaker
- Regular price
- $222.00
- Sale price
- $222.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: THQB32100ST1
Description
The General Electric THQB32100ST1 is a molded case circuit breaker equipped with a factory-installed shunt trip for remote tripping applications. This General Electric part number THQB32100ST1 is rated at 100 amperes and features a three-pole configuration for use in three-phase systems. It operates at up to 240 VAC and provides thermal-magnetic common-trip protection in load center and lighting panel applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breaker |
| Part Number | THQB32100ST1 |
| Subcategory | Load Center Circuit Breaker |
| Series / Frame | THQB / Q-Line |
| Current Rating | 100 A |
| System Voltage | 120 VAC, 120/240 VAC, 240 VAC |
| Number of Poles | 3 |
| Phase | 3 Phase |
| Trip Function | Long-Time and Instantaneous (LI) |
| Protection Type | Thermal Magnetic, Common Trip |
| Interrupting Rating (120 VAC) | 10 kAIC |
| Interrupting Rating (120/240 VAC) | 10 kAIC |
| Interrupting Rating (240 VAC) | 10 kAIC |
| Continuous Current Rating | Standard |
| Suitable for Reverse Feed | Yes |
| Long-Time Pickup | Fixed |
| Instantaneous Pickup | Fixed |
| Special Markings | HACR |
| Shunt Trip | Factory Installed |
Information About THQB32100ST1
The THQB32100ST1 is a molded case circuit breaker from the General Electric THQB series, designed for applications requiring both overcurrent protection and remote tripping capability. It incorporates a compact Q-Line frame with a bolt-on mounting design for secure installation in compatible GE load centers and lighting panels. The breaker includes an internal shunt trip mechanism that allows the circuit to be opened electrically in response to control signals. It is commonly used in commercial and industrial systems where emergency shutdown or remote disconnection is required.
Key Features
- THQB series construction: Designed within GE’s Q-Line platform for load center and panelboard compatibility.
- Factory-installed shunt trip: Enables remote tripping for emergency shutdown and control system integration.
- Thermal-magnetic common-trip protection: Provides fixed long-time overload and instantaneous short-circuit response across all poles.
- 100 ampere current rating: Suitable for feeder and branch circuits with higher load requirements.
- Three-pole configuration: Ensures coordinated protection and disconnection in three-phase systems.
- Bolt-on mounting design: Provides a secure electrical and mechanical connection to GE panel equipment.
- HACR rated marking: Supports use in heating, air conditioning, and refrigeration circuit applications.
The THQB32100ST1 delivers the reliability and precision required for protecting and remotely controlling three-phase circuits in commercial and industrial electrical distribution systems.
