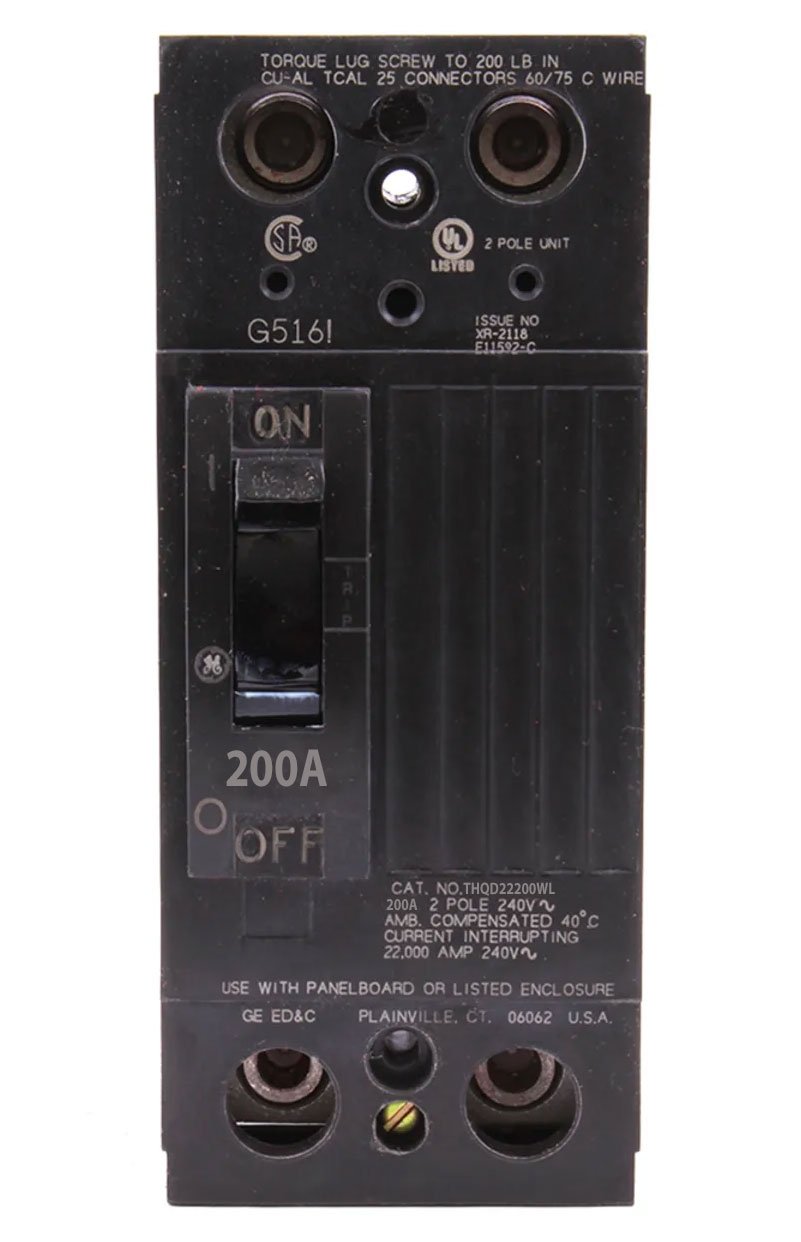

THQD22200 | General Electric 200A 2-Pole 240V Thermal-Magnetic Molded Case Circuit Breaker
- Regular price
- $1,139.00
- Sale price
- $1,139.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: THQD22200
Description
The General Electric THQD22200 is a 2-pole molded case circuit breaker engineered to provide reliable overcurrent protection in 240-volt systems. This breaker uses a thermal-magnetic trip mechanism to ensure accurate response to overloads and short-circuit conditions. Its 200-amp rating makes it suitable for demanding residential, commercial, and light industrial applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breaker |
| Part Number | THQD22200 |
| Subcategory | Molded Case |
| Series | THQD / Q-Line |
| Type | Thermal Magnetic |
| Poles | 2 |
| Amperage Rating | 200A |
| Voltage Rating | 240V AC |
| Phase | Single Phase |
| Interrupting Rating | 22kA @ 240V |
| Trip Functions | Long-Time, Instantaneous (LI) |
| Connection Type | Feed-Thru |
| Frame Type | THQD |
| Standards | CSA Approved |
| Dimensions (H x W x D) | 6.56" × 2.75" × 2.67" |
| Weight | 2.76 lbs |
Information About THQD22200
The THQD22200 is part of GE’s Q-Line THQD series, built for dependable performance in panelboard and switchboard installations. It features a molded case construction with a non-interchangeable thermal-magnetic trip unit designed for long-time and instantaneous functions. This model is compatible with feed-thru installations in single-phase 240V systems, supporting standard electrical distribution layouts. Its compact footprint and UL/CSA compliance make it suitable for both new assemblies and replacement use.
Key Features:
- 200A Thermal-Magnetic Protection: Provides combined long-time overload and instantaneous short-circuit response.
- 2-Pole Configuration: Supports protection of two conductors in 240V single-phase systems.
- 22 kA Interrupt Rating: Handles high fault currents for enhanced circuit safety.
- Feed-Thru Connection: Allows straightforward installation into compatible GE panelboards.
- Q-Line THQD Series Design: Ensures dimensional compatibility with GE THQD frame equipment.
- Non-Interchangeable Trip Unit: Factory-calibrated trip settings for consistent performance.
- Molded Case Housing: Durable enclosure designed to withstand mechanical and thermal stress.
- Compact Dimensions: Fits in space-limited electrical distribution environments.
The THQD22200 delivers the reliability and precision required for robust overcurrent protection in residential, commercial, and light-industrial systems.
