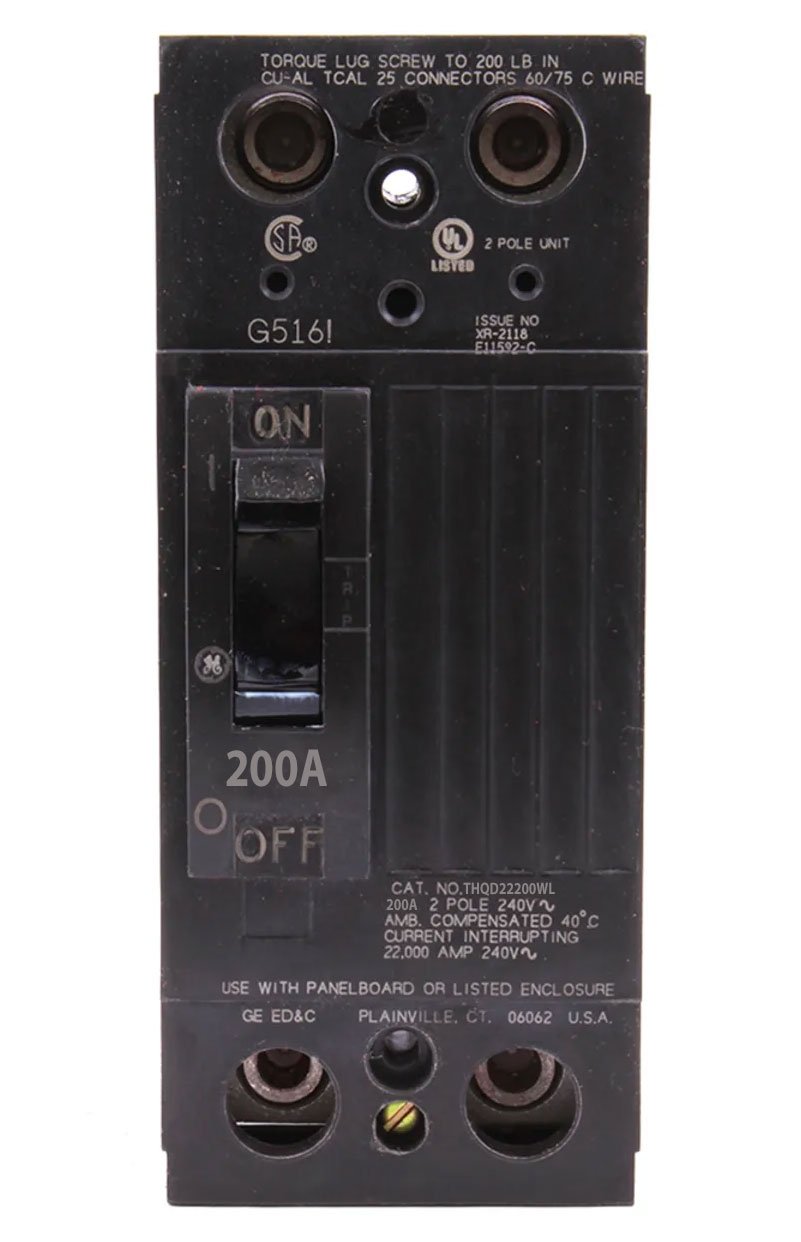

THQD22200WL | General Electric 200A 2-Pole 240V Thermal-Magnetic Molded Case Circuit Breaker
- Regular price
- $1,569.00
- Sale price
- $1,569.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: THQD22200WL
Description
The General Electric THQD22200WL is a 2-pole molded case circuit breaker designed to provide dependable overcurrent protection in 240-volt systems. With a 200-amp rating and thermal-magnetic trip technology, it ensures accurate response to overloads and faults. This breaker is suitable for residential, commercial, and light-industrial electrical distribution applications requiring high interrupting performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breaker |
| Part Number | THQD22200WL |
| Subcategory | Molded Case |
| Series | THQD / Q-Line |
| Type | Thermal Magnetic |
| Poles | 2 |
| Phase | 1 |
| Amperage Rating | 200A |
| Voltage Rating | 240V AC |
| Interrupting Rating | 22kA @ 240V |
| Trip Functions | Long-Time & Instantaneous (LI) |
| Protection Type | Thermal Magnetic |
| Connection Type | Feed-Thru |
| Certifications | UL Listed |
| Dimensions (H x W x D) | 6.56" × 2.75" × 2.67" |
| Weight | 2.76 lbs |
Information About THQD22200WL
The THQD22200WL is part of GE’s Q-Line THQD series, engineered for compatibility with panelboards and switchboards that accept THQD-frame breakers. It features a molded case housing and a non-interchangeable thermal-magnetic trip unit that provides long-time and instantaneous functions. Designed for feed-thru installations, it supports single-phase, 240-volt systems that require reliable circuit protection. Its UL listing and compact dimensions make it suitable for both new installations and replacement of existing Q-Line components.
Key Features:
- 200A Thermal-Magnetic Trip: Provides accurate overcurrent protection with long-time and instantaneous response.
- 2-Pole Configuration: Supports protection of two conductors in single-phase 240V circuits.
- 22 kA Interrupt Rating: Handles high fault currents for enhanced system safety.
- Feed-Thru Connection: Simplifies installation into compatible GE distribution equipment.
- THQD/Q-Line Series Compatibility: Ensures fit and performance consistency with GE THQD panelboard systems.
- UL Listed Construction: Meets established safety and performance standards for electrical protection devices.
- Durable Molded Case: Provides mechanical strength and stability in demanding environments.
- Compact Form Factor: Allows installation where panel space is limited.
The THQD22200WL delivers the reliability and precision required for safe and stable overcurrent protection in power distribution systems.
