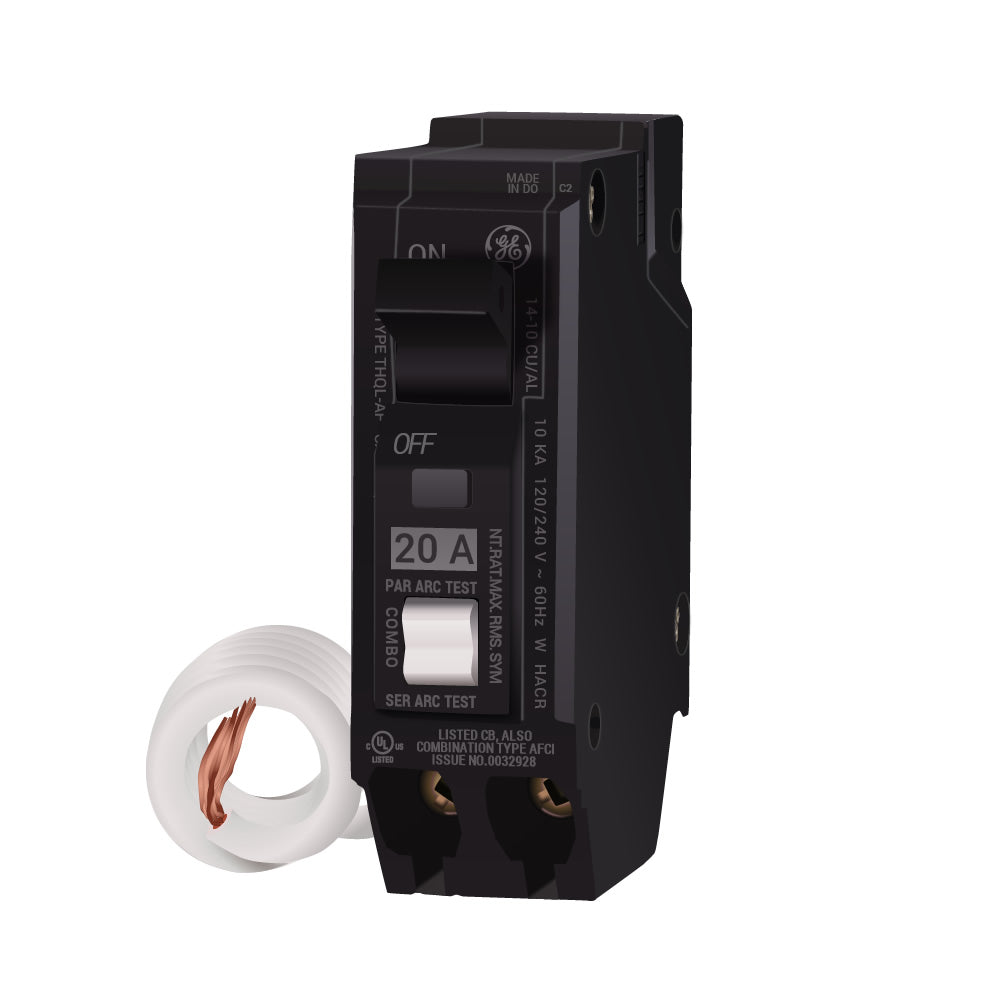

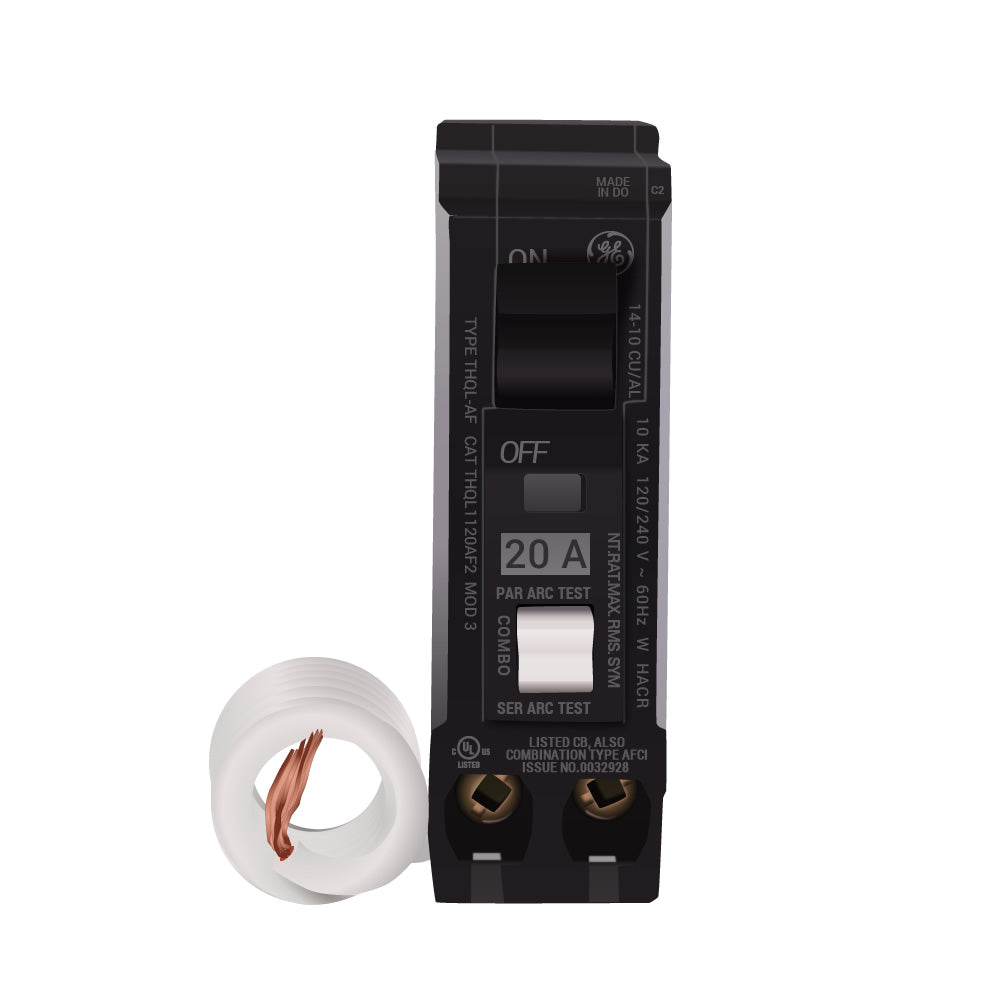

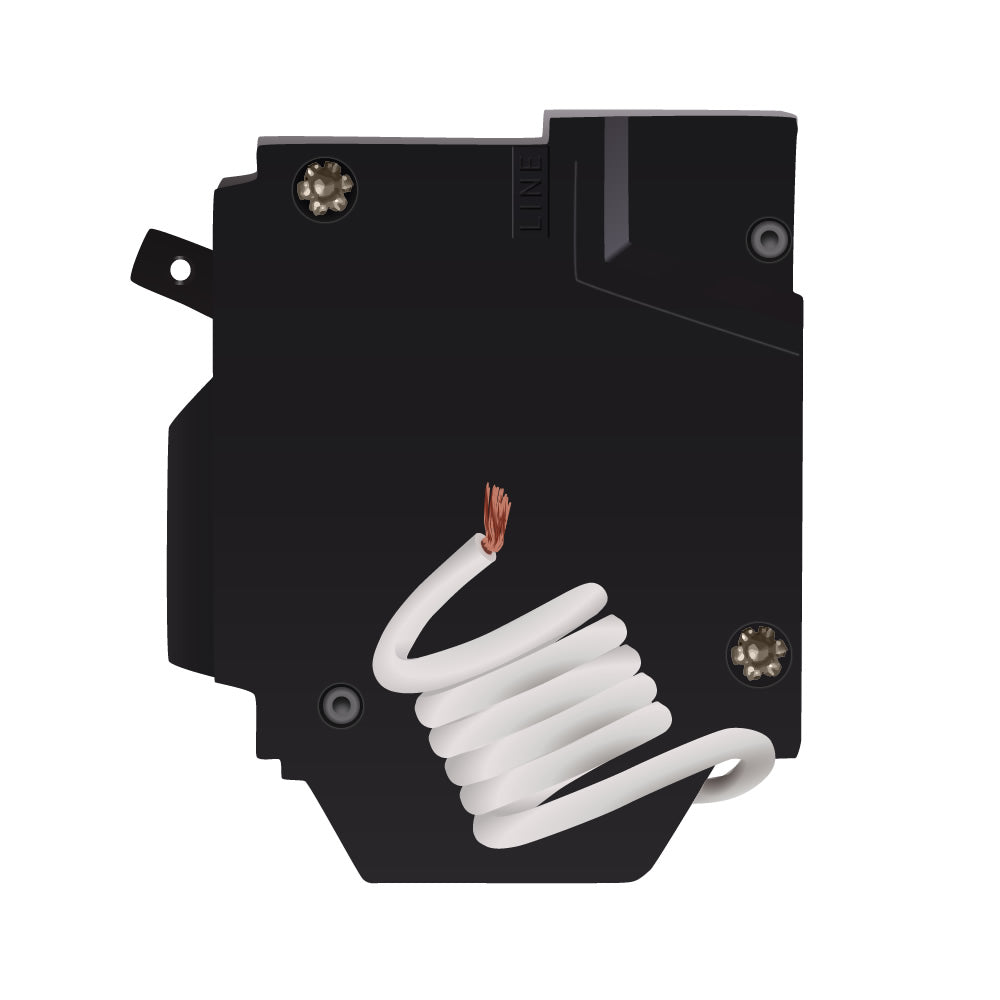

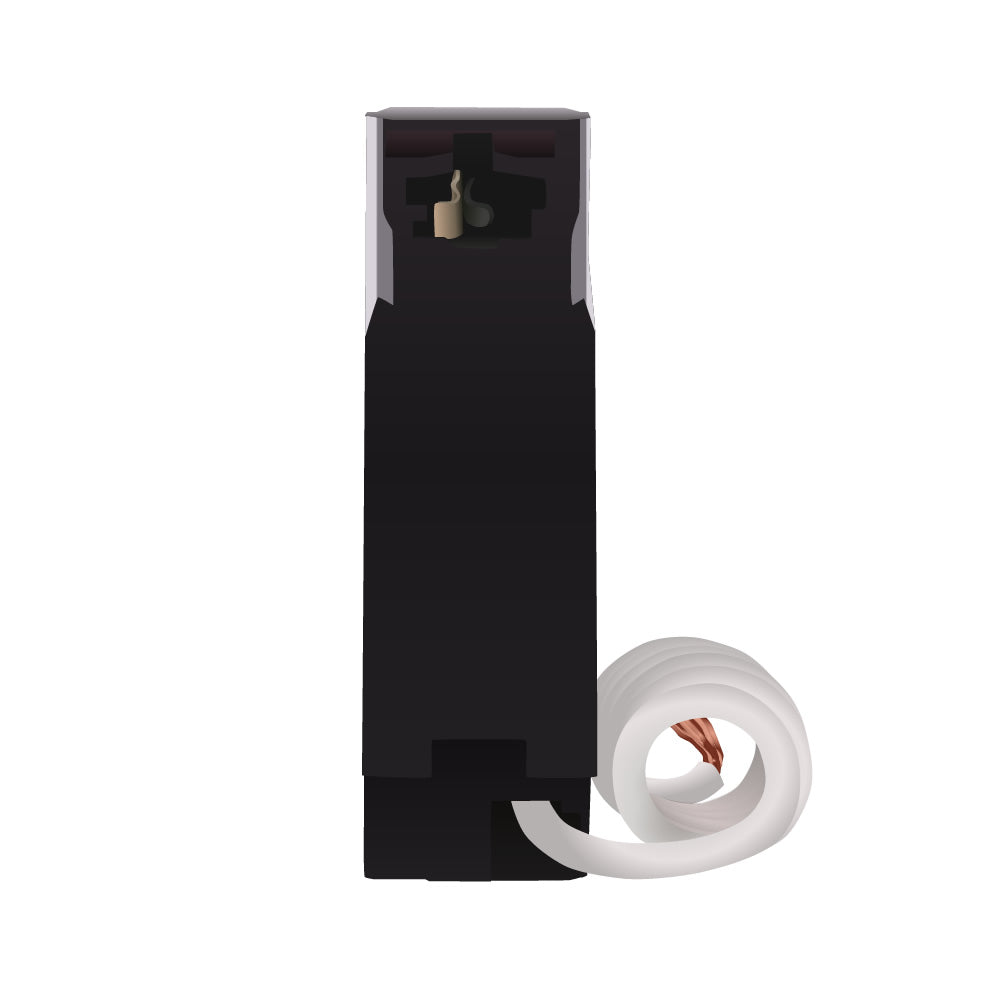

THQL1120AF2 | General Electric 20 Amp Arc Fault Circuit Breaker

Description

General Electric THQL series single pole 20 ampere plug-in molded case circuit breaker with maximum voltage rating of 240V tripping method thermal magnetic and standard interrupting rating of 10 kiloampere at 240V complete with arc fault (LI) Long-Time and Instantaneous trip functions and load side lug terminal.

Technical Specifications

Information About THQL1120AF2

The THQL1120AF2 is a 20 Amp Arc Fault Circuit Breaker (AFCI) from General Electric's Q-Line series, designed to enhance electrical safety by detecting and mitigating arc faults. This breaker is rated for 240V and provides single-phase power protection, suitable for residential and light commercial applications.

Featuring a single-pole design, the THQL1120AF2 offers Long-Time and Instantaneous (LI) protection functions. It utilizes thermal magnetic protection, combining thermal trip mechanisms to protect against prolonged overload conditions and magnetic trip mechanisms for instantaneous response to short circuits. This dual protection ensures reliable and comprehensive safeguarding of electrical circuits.

The breaker has an interrupting capacity (AIC rating) of 10kA at 240V, indicating its ability to handle substantial fault currents effectively. The plug-in connection facilitates easy and secure installation within electrical panels, promoting both efficiency and stability.

As part of the Q-Line family, the THQL1120AF2 maintains General Electric’s high standards for quality and reliability. Its arc fault detection capability adds an extra layer of protection, reducing the risk of electrical fires caused by unintended arcing conditions. This makes it an ideal choice for modern electrical systems that prioritize safety and durability.
