TJ1-MC16 | Omron Trajexia Motion Controller with 16-Axis Support 24VDC I/O
- Regular price
- $4,135.00
- Sale price
- $4,135.00
- Regular price
-
Couldn't load pickup availability
Do you need help?

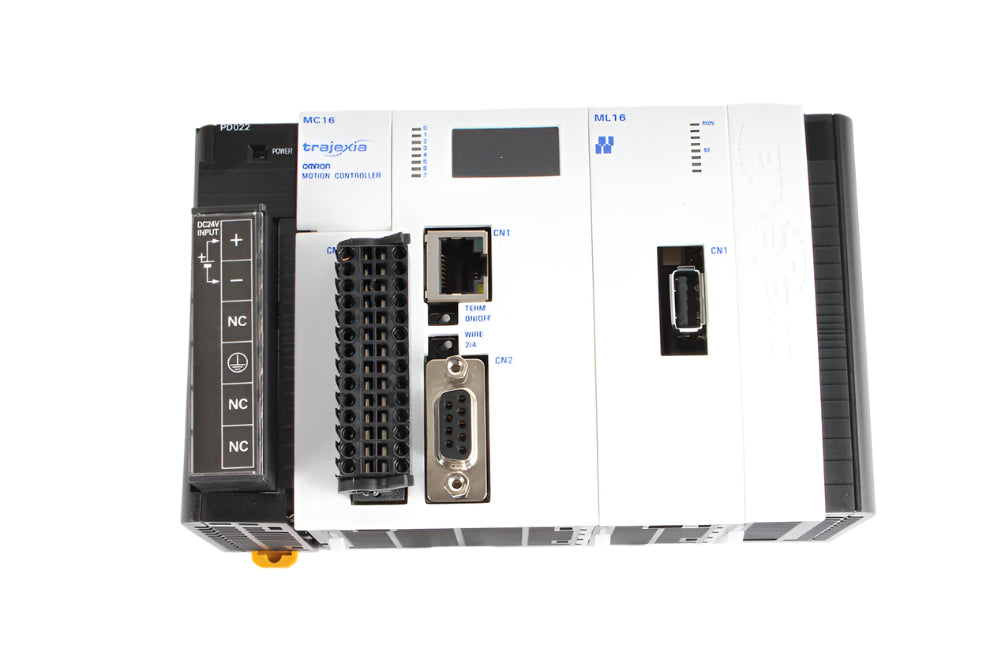

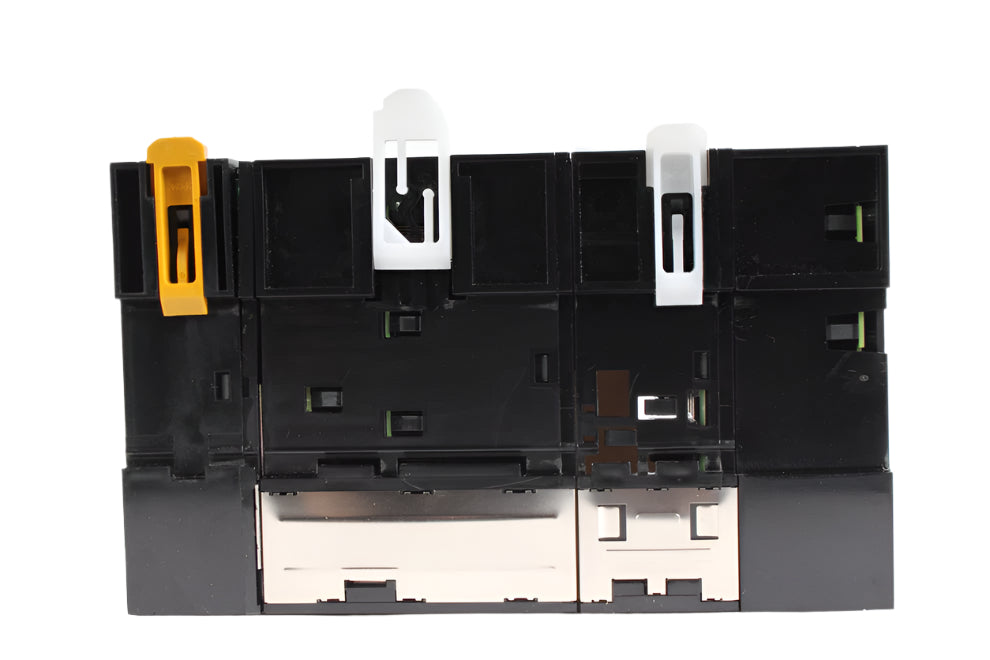

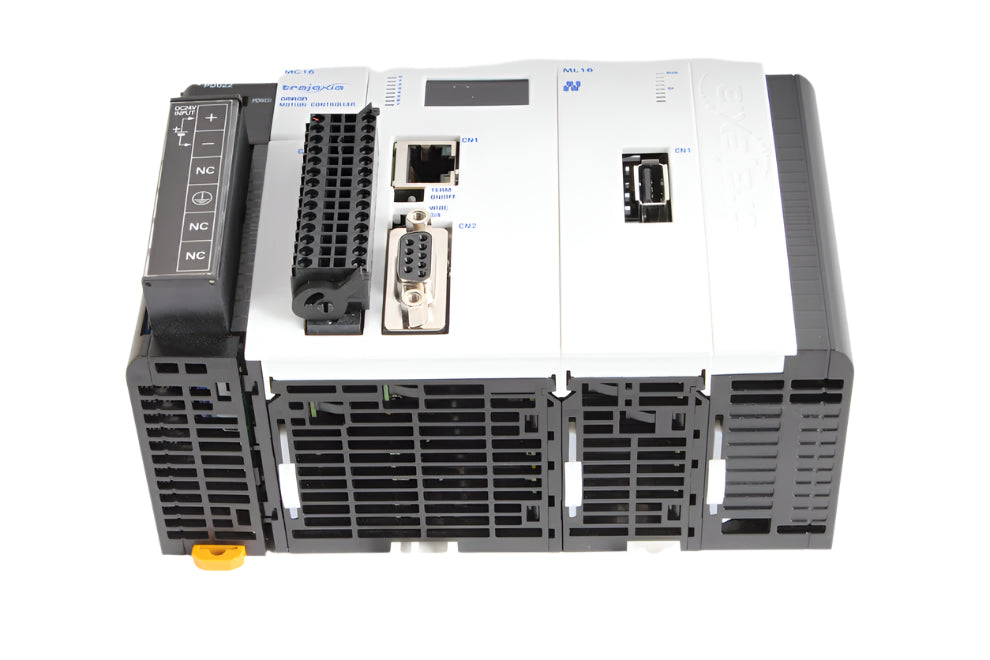

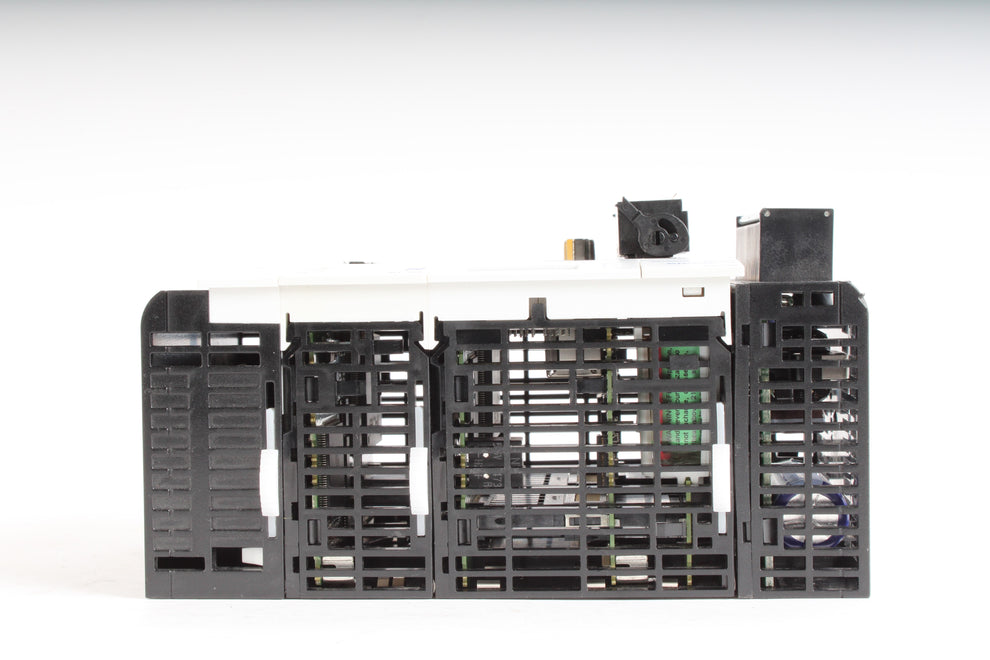

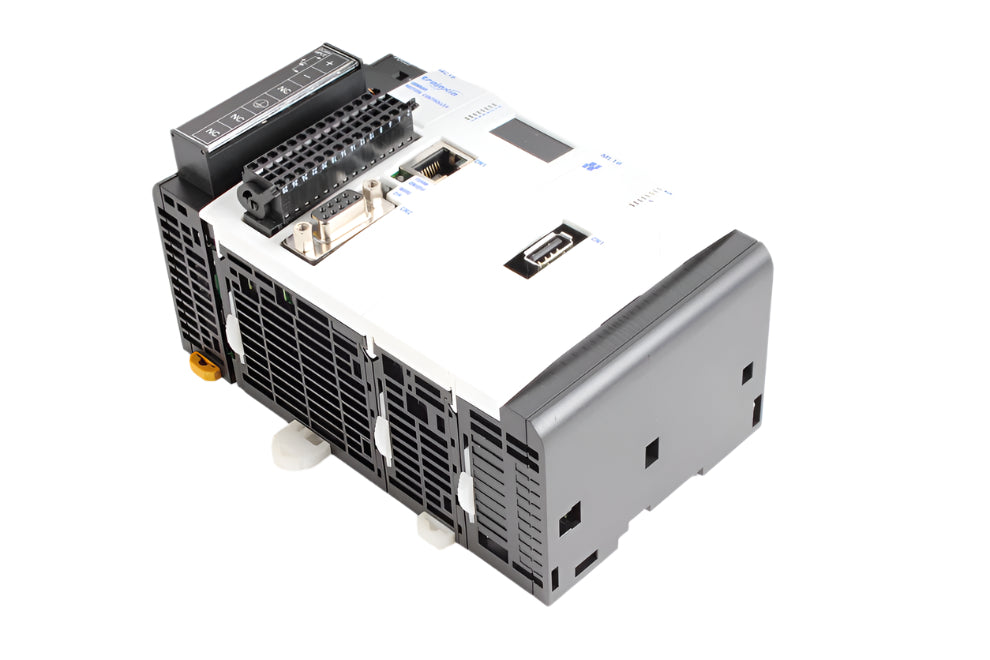

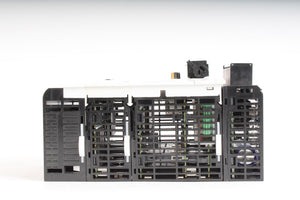

Product Description P/N: TJ1-MC16
Description
The Omron TJ1-MC16 is a DIN-rail-mountable motion controller from the Trajexia series, supporting control of up to 16 axes with integrated 24 VDC I/O. It features Ethernet, Modbus TCP, RS-232, RS-422A, and RS-485 communication ports for versatile system connectivity.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Omron |
| Category | Motion Control Systems |
| Part Number | TJ1-MC16 |
| Subcategory | Motion Controllers |
| Series | Trajexia |
| Motion Axes Supported | Up to 16 |
| Digital Inputs | 16 (24 VDC) |
| Digital Outputs | 8 (24 VDC) |
| Communication Ports | Ethernet, Modbus TCP, RS-232, RS-422A, RS-485 |
| Connectors | 9-pin D-Sub, RJ45 |
| Mounting Type | DIN Rail |
| Control Type | Standalone Motion Control |
| Operating Voltage | 24 VDC |
| Weight | 0.51 lb (approx. 231 g) |
Information About TJ1-MC16
The TJ1-MC16 is a powerful standalone motion controller in Omron’s Trajexia series, designed for synchronized multi-axis control in motion-centric applications. It supports up to 16 axes of coordinated motion and includes 16 digital inputs and 8 digital outputs, all operating at 24 VDC. Equipped with multiple communication interfaces—Ethernet, Modbus TCP, RS-232, RS-422A, and RS-485—the unit ensures seamless integration with PLCs, HMIs, and drives. A 9-pin D-Sub connector and RJ45 port offer flexible wiring options, while its compact form and DIN rail mounting make it easy to deploy within control panels.
Key Features:
-
16-Axis Motion Control: Supports precise, synchronized control across up to 16 axes for complex multi-motor applications.
-
Integrated 24 VDC I/O: Includes 16 digital inputs and 8 digital outputs for machine interfacing and signal control.
-
Multiple Communication Protocols: Offers Ethernet, Modbus TCP, RS-232, RS-422A, and RS-485 ports for extensive connectivity.
-
Flexible Wiring Interfaces: Features a 9-pin D-Sub connector and RJ45 Ethernet port for convenient system integration.
-
DIN Rail Mounting: Simplifies installation and saves space in industrial enclosures.
-
Trajexia Motion Engine: Delivers high-speed, real-time motion control with independent and coordinated axis functions.
-
Standalone Control Capability: Operates independently of PLCs for dedicated motion applications or can be networked as part of a larger system.
-
Robust Design: Built for industrial automation with reliable 24 VDC operation and compact housing.
The TJ1-MC16 delivers the reliability and precision required for advanced multi-axis motion coordination in robotics, packaging, and high-speed assembly systems.
