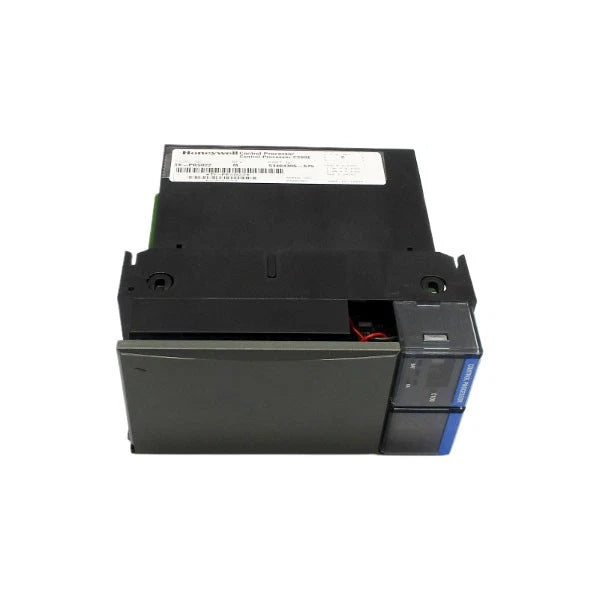

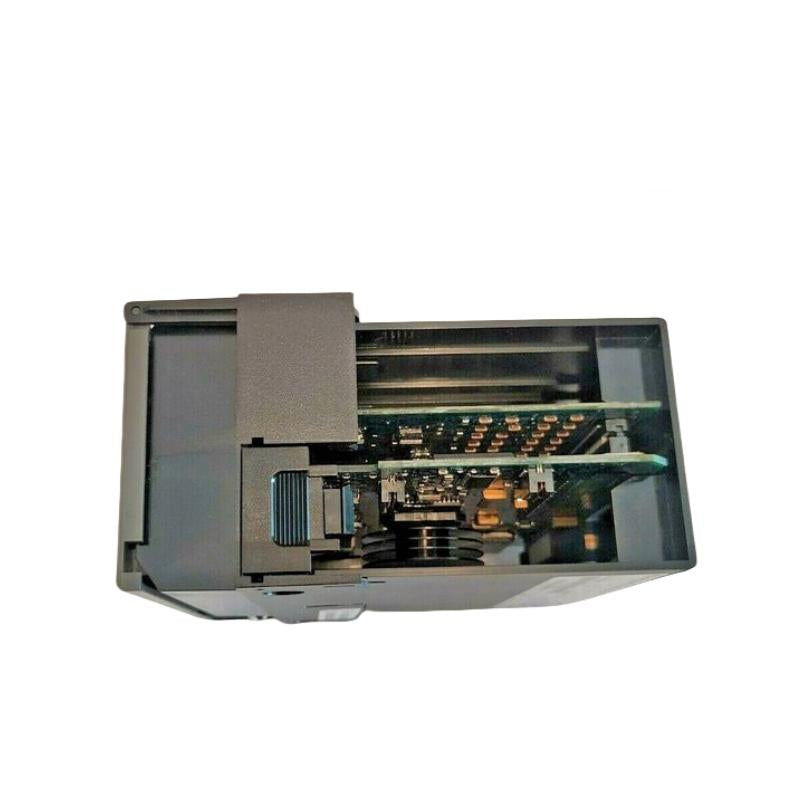

TK-PRS022 | Honeywell C200E Control Processor Module
- Regular price
- $2,227.75
- Sale price
- $2,227.75
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TK-PRS022
Description
The Honeywell TK-PRS022 is a C200E control processor module designed for precise signal processing and reliable operation within industrial control systems. It supports isolated input handling, fast response times, and stable 24 VDC operation in demanding automation environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Industrial Automation Controllers |
| Part Number | TK-PRS022 |
| Subcategory | Control Processor Modules |
| Product Type | Control Processor Module |
| Controller Platform | Honeywell C200 / C200E |
| Input Channels | 2 isolated pressure inputs |
| Measurement Range | 0–100 bar (configurable) |
| Accuracy | ±0.1% of full scale |
| Temperature Coefficient | ±0.05% / °C |
| Output Signal | Analog (0–10 VDC or 4–20 mA) |
| Response Time | < 1 ms |
| Power Supply | 24 VDC (18–30 VDC range) |
| Power Consumption | Max. 2.5 W |
| Input Current | Approx. 5 mA @ 24 VDC |
| Isolation Voltage | 500 Vrms |
| Operating Temperature | −40°C to +85°C |
| Storage Temperature | −40°C to +85°C |
| Relative Humidity | 5–95% RH, non-condensing |
| Environmental Protection | IP20 |
| Mounting | DIN rail |
| Connection Type | M12 connectors |
| Dimensions (H × W × D) | 44.5 × 120 × 100 mm |
| Weight | 250 g |
Information About TK-PRS022
The TK-PRS022 is a Honeywell control processor module intended for use within C200 and C200E-based control system architectures. It is engineered to process pressure-related signals with high accuracy while maintaining electrical isolation between channels and system ground. The module is designed for installation in industrial environments where fast response, diagnostic visibility, and operational stability are critical. Its compact form factor and standardized power requirements allow it to integrate smoothly into existing Honeywell control cabinets and distributed control systems.
Key Features
- Dual isolated input channels: Provides two independently isolated pressure input channels to improve measurement accuracy and reduce electrical interference.
- High-precision signal processing: Delivers accurate pressure measurement with tight tolerance and minimal temperature drift across the operating range.
- Fast response performance: Supports sub-millisecond response times for real-time monitoring and control applications.
- Industrial-grade isolation: Channel-to-channel and channel-to-ground isolation enhances system safety and signal integrity.
- Flexible output signaling: Supports both voltage and current analog outputs for compatibility with various control architectures.
- Integrated diagnostics: Built-in diagnostic functions assist with troubleshooting, monitoring, and maintenance activities.
- Hot-swappable capability: Designed to allow module replacement without system shutdown, reducing maintenance-related downtime.
- Rugged mechanical design: Compact and durable construction supports installation in harsh industrial environments.
The TK-PRS022 delivers the reliability and precision required for accurate pressure signal processing and stable control performance in Honeywell C200E industrial control systems.
