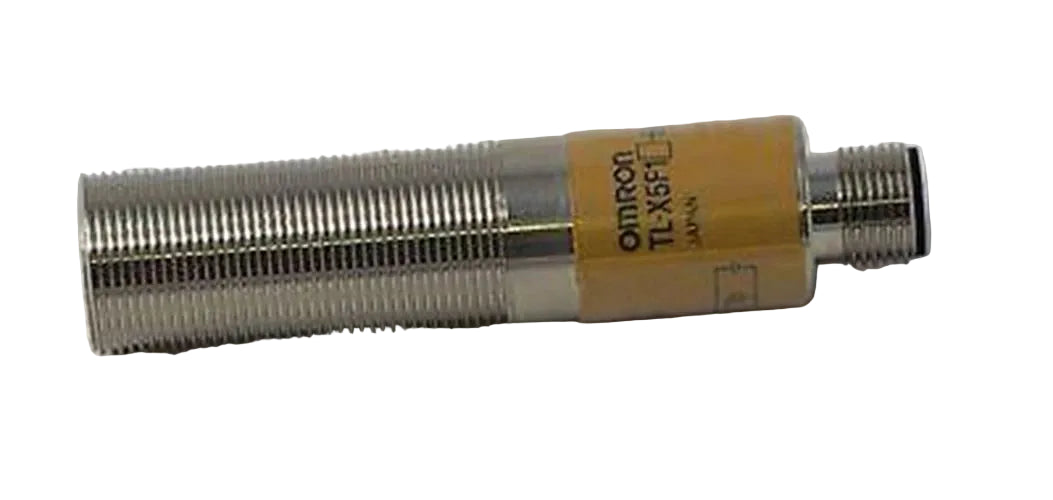

TL-X5F1-52 | Omron M18 Inductive Proximity Sensor 5mm PNP

Description

The Omron TL-X5F1-52 is an inductive proximity sensor designed for non-contact detection of metallic objects. It operates on a 12–24 VDC power supply and provides a PNP normally open output. With a 5 mm sensing distance and M12 connector interface, it is suited for industrial automation applications.

Technical Specifications

Information About TL-X5F1-52

The TL-X5F1-52 is part of the Omron TL series of cylindrical inductive proximity sensors. It features a shielded M18 housing configuration for flush mounting and stable detection performance. The sensor provides a PNP normally open output rated up to 200 mA and connects via a 4-pin M12 connector. Designed for factory automation systems, it enables reliable position detection and object presence sensing in machinery and conveyor applications.

Key Features:

• 5 mm Sensing Distance: Detects metallic objects at short range.

• Inductive Detection Method: Non-contact sensing for metal targets.

• PNP Normally Open Output: 200 mA maximum load current.

• 12–24 VDC Operation: Compatible with standard industrial DC systems.

• Shielded Construction: Supports flush mounting in metal surfaces.

• M18 Cylindrical Housing: Standard industrial form factor.

• M12 4-Pin Connector: Secure and standardized connection method.

• Industrial Automation Use: Designed for machine position detection.

The TL-X5F1-52 delivers the reliability and precision required for inductive object detection in industrial automation systems.
