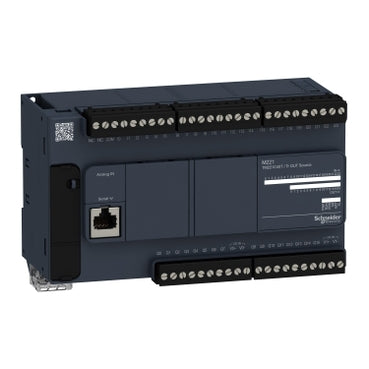

TM221C40T | Schneider Electric Logic Controller Modicon M221
- Regular price
- $369.00
- Sale price
- $369.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TM221C40T
Description
The Schneider Electric TM221C40T Modicon M221 Logic Controller is a compact and high-performance PLC designed for small to mid-sized automation applications. It features 24 discrete inputs (including 4 fast inputs) and 16 transistor outputs (including 2 fast outputs), ensuring precise control and high-speed operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | PLCs and Accessories |
| Part Number | TM221C40T |
| Subcategory | Industrial Computer Board |
| Range of Product | Modicon M221 |
|---|---|
| Product or Component Type | Logic controller |
| [Us] rated supply voltage | 24 V DC |
| Discrete input number | 24, discrete input 4 fast input IEC 61131-2 Type 1 |
| Analogue input number | 2 0...10 V |
| Discrete output type | Transistor |
| Discrete output number | 16 transistor 2 fast output |
| Discrete output voltage | 24 V DC |
| Discrete output current | 0.5 A |
| Supply voltage limits | 20.4…28.8 V |
| Inrush current | 35 A |
| Maximum power consumption in W | 4.1 W 24 V without I/O expansion module) 16 W 24 V with max number of I/O expansion module) |
| Power supply output current | 0.52 A 5 V expansion bus 0.3 A 24 V expansion bus |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| Discrete input voltage type | DC |
| Analogue input resolution | 10 bits |
| LSB value | 10 mV |
Information About TM221C40T
The Modicon M221 TM221C40T is a versatile logic controller built for industrial and machine control applications. Operating on a 24V DC power supply, it offers fast response times and flexible I/O configurations. Its DIN rail mounting and screw terminals ensure easy installation, while the IP20-rated enclosure provides basic protection in control cabinet environments. The inclusion of Ethernet and serial line ports allows seamless communication and integration into industrial networks.
Key Features:
- Power Supply: 24V DC for stable operation.
- Digital Inputs: 24 discrete inputs (including 4 fast inputs).
- Digital Outputs: 16 transistor outputs (including 2 fast outputs).
- Output Type: 24V DC, 0.5A per output.
- Communication Ports: Ethernet and Serial Line (RS232/RS485) for flexible connectivity.
- Storage Options: SD card and USB port for data logging and firmware updates.
- Mounting Type: DIN rail mount for easy installation.
- Terminal Type: Screw terminals for secure wiring connections.
- LED Indicators: Provides real-time status monitoring.
- Protection Rating: IP20, suitable for control panel installations.
With its compact design, flexible I/O, and multiple communication options, the Schneider Electric TM221C40T Modicon M221 is an ideal choice for automation, machine control, and industrial process management.
