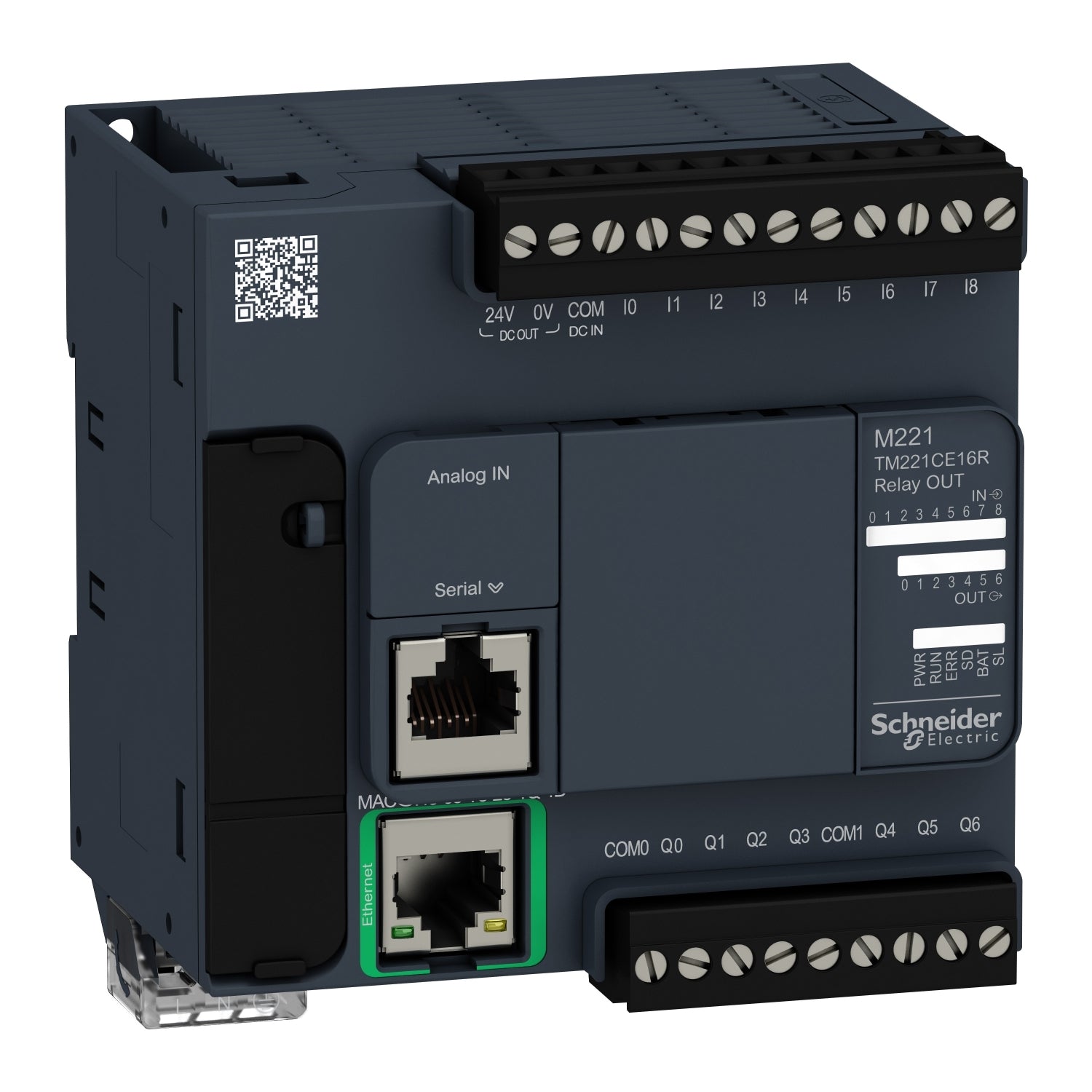

TM221CE16R | Schneider Electric Logic controller, Modicon M221, 16 IO, 9 DI, 7 DO, relay, Ethernet
TM221CE16R | Schneider Electric Logic controller, Modicon M221, 16 IO, 9 DI, 7 DO, relay, Ethernet
Part #: TM221CE16R Manufactured by: Schneider Electric

TM221CE16R | Schneider Electric Logic controller, Modicon M221, 16 IO, 9 DI, 7 DO, relay, Ethernet

Regular price
$259.00
Sale price
$259.00
Regular price
Never Used Surplus
1 in Stock
Shipping calculated at checkout.
Product Overview
Logic controller, Modicon M221, 16 IO relay Ethernet
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: TM221CE16R
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
TM221CE16R | Schneider Electric Logic controller, Modicon M221, 16 IO, 9 DI, 7 DO, relay, Ethernet
    TM221CE16R | Schneider Electric Logic controller, Modicon M221, 16 IO, 9 DI, 7 DO, relay, Ethernet
TM221CE16R | Schneider Electric Logic controller, Modicon M221, 16 IO, 9 DI, 7 DO, relay, Ethernet
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: TM221CE16R

Description / Specifications

Description

Programmable Logic Controller (PLC) CPU processor module with integrated I/Os - Schneider Electric / Modicon (Modicon M221 series) - 640KB (total RAM) / 256kB (RAM for internal variables) - 18I/Os [9DI (9 x digital inputs (24Vdc; Sink/Source; 4 inputs can be used as high-speed HSC counters)) + 7DO (7 x digital outputs (2A; NO rly. contact outputs)) + 2AI (2 x analog inputs (0-10Vdc; 10-bit))] - with Ethernet/IP + Modbus TCP communication capability - Supply voltage 85-264Vac (100-240Vac nom.) - symmetrical rail or pnl. mounting - with removable screw term. blck. - IP20 - Rated for +14...+131°F / -10...+55°C ambient


Technical Specifications


Brand Schneider Electric
Part Number TM221CE16R
Category PLCs/Machine Control
Subcategory Brick PLC
IP Rating IP20
Maximum Operating Temperature + 55 C
Minimum Operating Temperature - 10 C
Mounting Style DIN Rail
Number of Inputs 11
Number of Outputs 7
Output Type Relay
Product Type Logic Controllers
Series M221
Size 70 mm x 95 mm x 90 mm
Supply Voltage - Max 240 V
Supply Voltage - Min 100 V
Termination Style Screw




Information About TM221CE16R

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 9 discrete inputs and 7 relay ethernet outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface and ethernet with RJ45 connector. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 95mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.346kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Features & Benefits

• RS232 and RS485 interfaces let you connect to legacy devices, reducing hardware waste
• Can be mounted on a panel or a DIN rail for versatile installation
• Compact dimensions to fit into setups with limited space
• LED indicators for efficient monitoring, troubleshooting and diagnosis


Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

Programmable Logic Controller (PLC) CPU processor module with integrated I/Os - Schneider Electric / Modicon (Modicon M221 series) - 640KB (total RAM) / 256kB (RAM for internal variables) - 18I/Os [9DI (9 x digital inputs (24Vdc; Sink/Source; 4 inputs can be used as high-speed HSC counters)) + 7DO (7 x digital outputs (2A; NO rly. contact outputs)) + 2AI (2 x analog inputs (0-10Vdc; 10-bit))] - with Ethernet/IP + Modbus TCP communication capability - Supply voltage 85-264Vac (100-240Vac nom.) - symmetrical rail or pnl. mounting - with removable screw term. blck. - IP20 - Rated for +14...+131°F / -10...+55°C ambient


Technical Specifications


Brand Schneider Electric
Part Number TM221CE16R
Category PLCs/Machine Control
Subcategory Brick PLC
IP Rating IP20
Maximum Operating Temperature + 55 C
Minimum Operating Temperature - 10 C
Mounting Style DIN Rail
Number of Inputs 11
Number of Outputs 7
Output Type Relay
Product Type Logic Controllers
Series M221
Size 70 mm x 95 mm x 90 mm
Supply Voltage - Max 240 V
Supply Voltage - Min 100 V
Termination Style Screw




Information About TM221CE16R

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 9 discrete inputs and 7 relay ethernet outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface and ethernet with RJ45 connector. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 95mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.346kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Features & Benefits

• RS232 and RS485 interfaces let you connect to legacy devices, reducing hardware waste
• Can be mounted on a panel or a DIN rail for versatile installation
• Compact dimensions to fit into setups with limited space
• LED indicators for efficient monitoring, troubleshooting and diagnosis


Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
