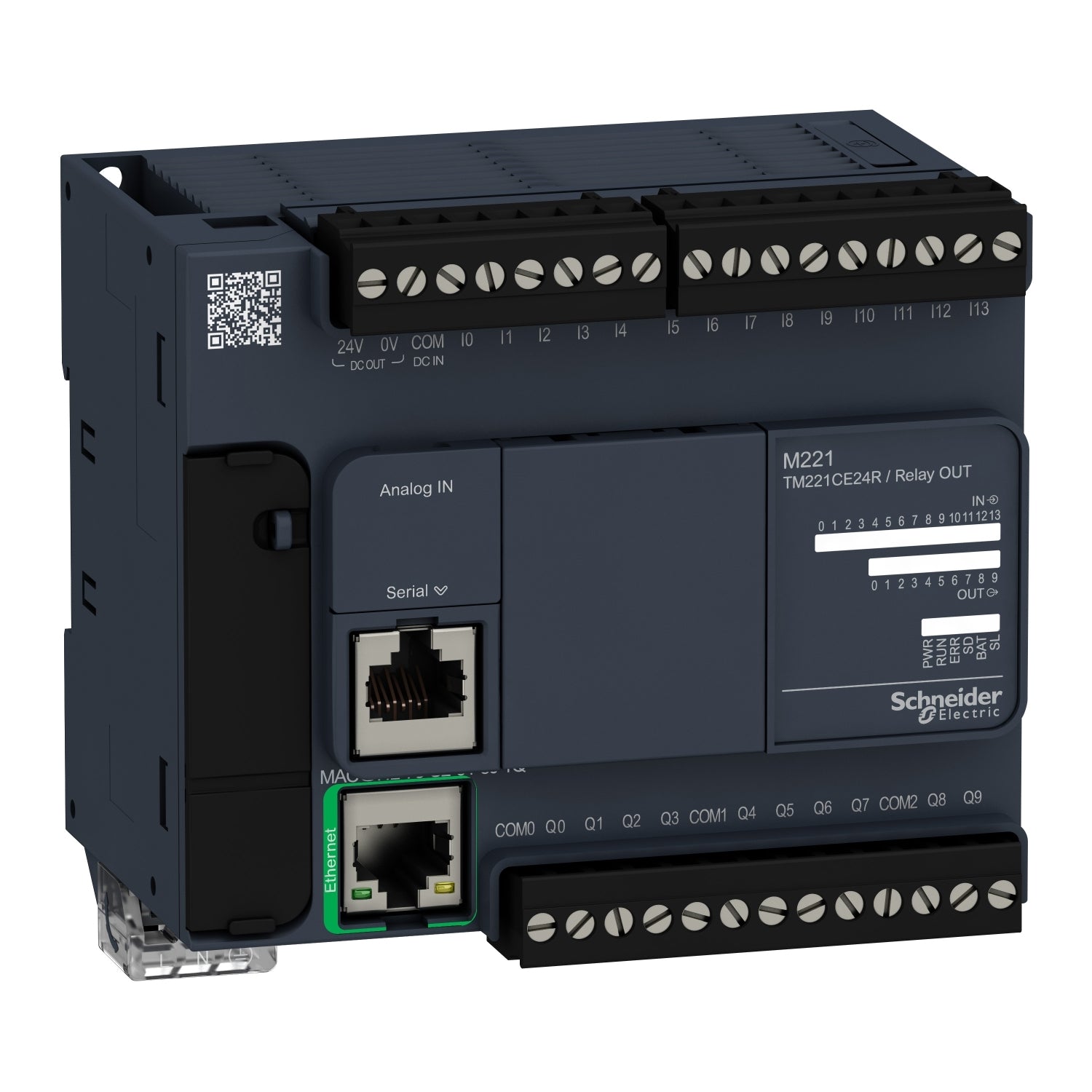

TM221CE24R | Schneider Electric | Logic controller
TM221CE24R | Schneider Electric | Logic controller
Part #: TM221CE24R Manufactured by: Schneider Electric

TM221CE24R | Schneider Electric | Logic controller

Regular price
$275.00
Sale price
$275.00
Regular price
Never Used Surplus
1 in Stock
Shipping calculated at checkout.
Product Overview
The TM221CE24R is a logic controller belonging to the Modicon M221 range, specifically designed for hardwired architecture...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: TM221CE24R
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
TM221CE24R | Schneider Electric | Logic controller
    TM221CE24R | Schneider Electric | Logic controller
TM221CE24R | Schneider Electric | Logic controller
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: TM221CE24R

Description / Specifications

Description

The TM221CE24R is a logic controller within the Modicon M221 series, designed for hardwired architectures. Offering 14 discrete inputs and 10 relay ethernet outputs, it features 10-bit input resolution and normally opened relay output configuration. This Modicon logic controller operates with a rated supply voltage of 100V to 240V AC, providing output voltages ranging from 5V to 125V DC and 5V to 250V AC, with an output current of 2A supporting sink or source input logic.

Facilitating minimal installation, the TM221CE24R boasts extensive connectivity options. Integrated connections include a USB port with mini B USB 2.0 connector, non-isolated serial link serial 1 with RJ45 connector, RS232/RS485 interface, and ethernet with RJ45 connector. Operating at a network frequency of 50/60Hz, it features 256KB RAM for internal variables, user application, and data RAM, along with a built-in flash memory of 256KB and SD card memory capacity of 2GB.


Technical Specifications

Part #

TM221CE24R

Manufacturer

SCHNEIDER ELECTRIC

Brand

MODICON

Category

PLCs/Machine Control

Subcategory

Brick PLC Range of products

Product or component type

Logic controller

Rated supply voltage (Us)

100...240 V AC

Discrete input number

14, conforming to IEC 61131-2 Type 1

Analogue input number

2 at 0...10 V

Discrete output type

Relay normally open

Discrete output number

10 relay

Discrete output voltage

5...125 V DC, 5...250 V AC

Discrete output current

2 A

Discrete I/O number

24

Maximum number of I/O expansion module

7 (local I/O-Architecture), 14 (remote I/O-Architecture)

Supply voltage limits

85…264 V

Network frequency

50/60 Hz

Inrush current

40 A

Discrete input logic

Sink or source (positive/negative)

Discrete input voltage

24 V

Discrete input voltage type

DC

Analogue input resolution

10 bits

LSB value

10 mV

Conversion time

1 ms per channel + 1 controller cycle time for analogue input

Permitted overload on inputs

+/- 30 V DC for 5 min (maximum) for analog input

Voltage state 1 guaranteed

>= 15 V for input

Voltage state 0 guaranteed

<= 5 V for input

Switching frequency

20 switching operations/minute with maximum load

Mechanical durability

20,000,000 cycles for relay output

Minimum load

1 mA at 5 V DC for relay output

Protection type

Without protection at 5 A

Reset time

1 s

Data backed up

256 kB built-in flash memory for backup of application and data

Data storage equipment

2 GB SD card (optional)

Battery type

BR2032 or CR2032X lithium non-rechargeable

Backup time

1 year at 25 °C (by interruption of power supply)

Execution time for 1 KInstruction

0.3 ms for event and periodic task

Execution time per instruction

0.2 µs Boolean

Execution time for event task

60 µs response time

Real-time clock

With

Clock drift

<= 30 s/month at 25 °C

Regulation loop

Adjustable PID regulator up to 14 simultaneous loops

Counting input number

4 fast input (HSC mode) at 100 kHz 32 bits

Marking

CE

Sensor power supply

24 V DC at 250 mA supplied by the controller

IP degree of protection

IP20 with protective cover in place

Pollution degree

<= 2

Operating altitude

0...2000 m

Storage altitude

0…3000 m


Information About TM221CE24R


The TM221CE24R is a logic controller within the Modicon M221 range, designed for hardwired architectures. Offering 14 discrete inputs and 10 relay Ethernet outputs with 10-bit input resolution, it features normally opened relay output configuration. This Modicon logic controller operates with a rated supply voltage ranging from 100V to 240V AC, providing output voltages from 5V to 125V DC and 5V to 250V AC, with an output current of 2A supporting sink or source input logic.

Featuring minimal installation requirements, the TM221CE24R offers tremendous versatility. Integrated connections include a USB port with a mini B USB 2.0 connector, non-isolated serial link serial 1 with an RJ45 connector, RS232/RS485 interface, and Ethernet with an RJ45 connector. Operating at a network frequency of 50/60Hz, it boasts 256KB of RAM for internal variables, user application, and data RAM, alongside a built-in flash memory of 256KB and a SD card memory capacity of 2GB.

With an IP20 rating, the TM221CE24R maintains compact dimensions of 110mm (Width) x 70mm (Depth) x 90mm (Height) and weighs 0.395kg. This product holds certifications from CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC, and CULus, adhering to standards such as EN/IEC 60664-1, EN/IEC 61131-2, and EN/IEC 61010-2-201. It supports DIN rail mount for efficient installation.
