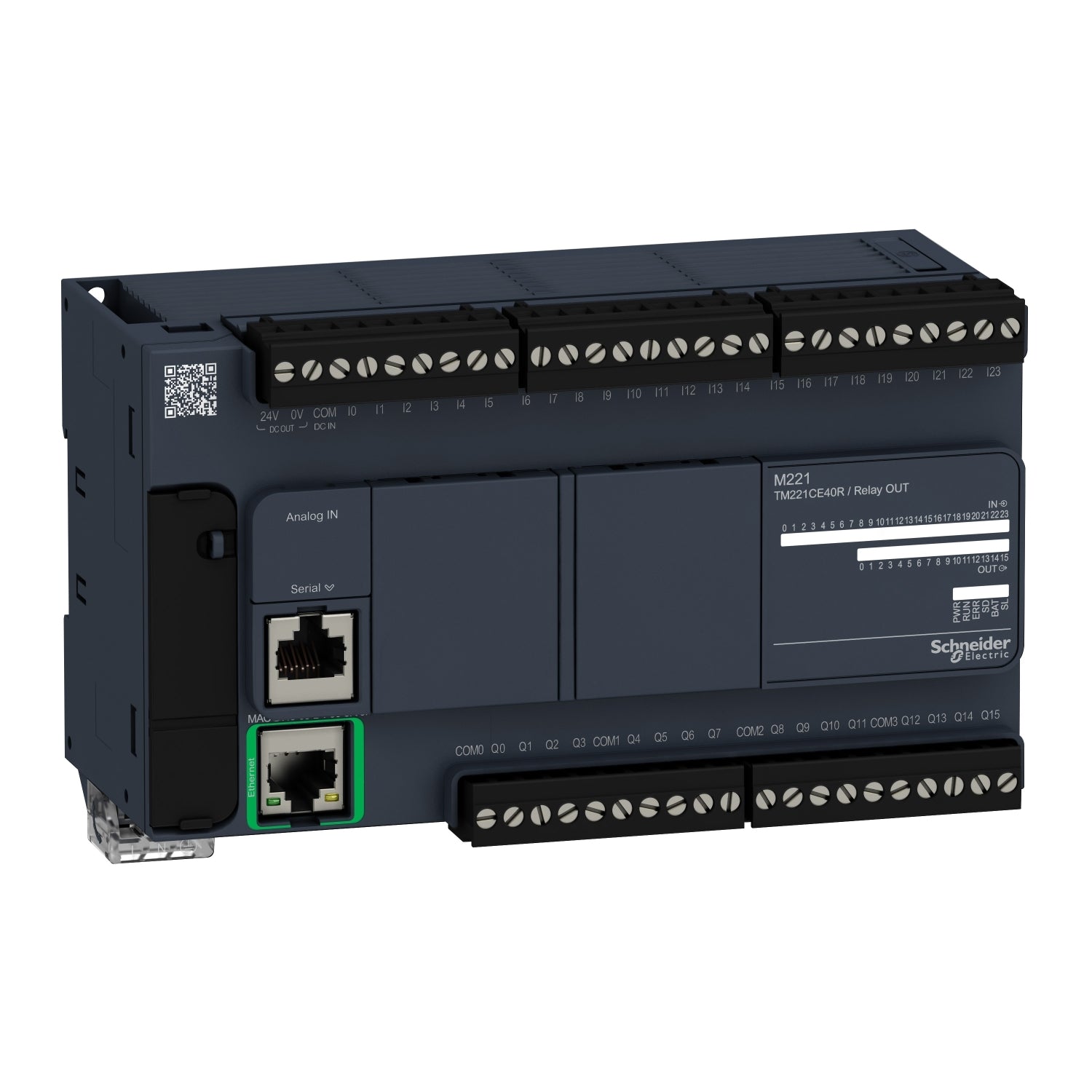

Part #: TM221CE40R Manufactured by: Schneider Electric
Regular price
$349.00
Sale price
$349.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The TM221CE40R is a logic controller belonging to the Modicon M221 range, designed specifically for hardwired architecture...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: TM221CE40R
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: TM221CE40R

Description / Specifications

Description

The TM221CE40R is a logic controller within the Modicon M221 range, tailored for hardwired architectures. It features 24 discrete inputs and 16 relay Ethernet outputs, offering a normally opened relay output configuration with 10-bit input resolution. Operating with a rated supply voltage ranging from 100V to 240V AC, it provides output voltages between 5V to 125V DC and 5V to 250V AC, delivering an output current of 2A with sink or source input logic.

Designed for ease of installation and exceptional versatility, the TM221CE40R comes with integrated connections including a USB port with mini B USB 2.0 connector, non-isolated serial link serial 1 with RJ45 connector, RS232/RS485 interface, and Ethernet with RJ45 connector. As a Modicon M221 controller, it operates at a network frequency of 50/60Hz, featuring 256KB for internal variables RAM, user application, and data RAM. Additionally, it incorporates a built-in flash memory of 256KB and supports SD card memory capacity up to 2GB.

Technical Specifications



Part #

TM221CE40R

Manufacturer

SCHNEIDER ELECTRIC

Brand

MODICON

Category

PLCs/Machine Control

Subcategory

Brick PLC Range of product

Product or component type

Logic controller

[Us] rated supply voltage

100...240 V AC

Discrete input number

24, discrete input conforming to IEC 61131-2 Type 1

Analogue input number

2 at 0...10 V

Discrete output type

Relay normally open

Discrete output number

16 relay

Discrete output voltage

5...125 V DC 5...250 V AC

Discrete output current

2 A

Discrete I/O number

40

Maximum number of I/O expansion module

7 (local I/O-Architecture) 14 (remote I/O-Architecture)

Supply voltage limits

85…264 V

Network frequency

50/60 Hz

Inrush current

40 A

Discrete input logic

Sink or source (positive/negative)

Discrete input voltage

24 V

Discrete input voltage type

DC

Analogue input resolution

10 bits

LSB value

10 mV

Conversion time

1 ms per channel + 1 controller cycle time for analogue input

Analog input Voltage state 1 guaranteed

>= 15 V for input

Voltage state 0 guaranteed

<= 5 V for input

Discrete input current

7 mA for discrete input 5 mA for fast input

Maximum current per output common

7 A

Absolute accuracy error

+/- 1 % of full scale for analog input

Switching frequency

20 switching operations/minute with maximum load

Mechanical durability

20000000 cycles for relay output

Minimum load

1 mA at 5 V DC for relay output

Protection type

Without protection at 5 A

Reset time

1 s

Data backed up

256 kB built-in flash memory for backup of application and data

Data storage equipment

2 GB SD card (optional)

Battery type

BR2032 or CR2032X lithium non-rechargeable

Backup time

1 year at 25 °C (by interruption of power supply)

Execution time for 1 KInstruction

0.3 ms for event and periodic task

Execution time per instruction

0.2 µs Boolean

Exct time for event task

60 µs response time

Realtime clock

With

Clock drift

<= 30 s/month at 25 °C

Regulation loop

Adjustable PID regulator up to 14 simultaneous loops

Counting input number

4 fast input (HSC mode) at 100 kHz 32 bitsImmunity to microbreaks 10 ms

Ambient air temperature for operation

-10…55 °C (horizontal installation) -10…35 °C (vertical installation)

Ambient air temperature for storage

-25…70 °C



Information About TM221CE40R


The TM221CE40R is a logic controller belonging to the Modicon M221 range, which offers programmable logic controllers tailored for hardwired architectures. With 24 discrete inputs and 16 relay ethernet outputs, featuring 10-bit input resolution and normally opened relay output, it provides versatile control capabilities.

Operating within a rated supply voltage range of 100V to 240V AC, and outputting at 5V to 125V DC or 5V to 250V AC, with a maximum output current of 2A, it supports both sink and source input logic configurations. The installation process for this controller is minimal, offering ease of integration into various systems.

Featuring integrated connections including a USB port with mini B USB 2.0 connector, non-isolated serial link serial 1 with RJ45 connector, RS232/RS485 interface, and Ethernet with RJ45 connector, it ensures seamless connectivity with other devices and networks.

Operating at a network frequency of 50/60Hz, the TM221CE40R is equipped with 256KB of internal variables RAM, user application and data RAM, along with a built-in flash memory of 256KB and an SD card memory capacity of 2GB, facilitating efficient data management and storage.

With an IP20 rating, the TM221CE40R ensures protection against solid objects larger than 12mm and offers reliable operation even in challenging environments. Its compact dimensions of 160mm (Width) x 70mm (Depth) x 90mm (Height) and lightweight design weighing 0.456kg contribute to its ease of deployment and space efficiency.

Certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC, and CULus, and compliant with EN/IEC 60664-1, EN/IEC 61131-2, and EN/IEC 61010-2-201 standards, the TM221CE40R adheres to stringent quality and safety regulations.




Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

IQElectro is not an authorized distributor.
QElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses For more detailed information, please refer to the full version of our disclaimer policy Disclaimer Policy.
Description / Specifications

Description

The TM221CE40R is a logic controller within the Modicon M221 range, tailored for hardwired architectures. It features 24 discrete inputs and 16 relay Ethernet outputs, offering a normally opened relay output configuration with 10-bit input resolution. Operating with a rated supply voltage ranging from 100V to 240V AC, it provides output voltages between 5V to 125V DC and 5V to 250V AC, delivering an output current of 2A with sink or source input logic.

Designed for ease of installation and exceptional versatility, the TM221CE40R comes with integrated connections including a USB port with mini B USB 2.0 connector, non-isolated serial link serial 1 with RJ45 connector, RS232/RS485 interface, and Ethernet with RJ45 connector. As a Modicon M221 controller, it operates at a network frequency of 50/60Hz, featuring 256KB for internal variables RAM, user application, and data RAM. Additionally, it incorporates a built-in flash memory of 256KB and supports SD card memory capacity up to 2GB.

Technical Specifications



Part #

TM221CE40R

Manufacturer

SCHNEIDER ELECTRIC

Brand

MODICON

Category

PLCs/Machine Control

Subcategory

Brick PLC Range of product

Product or component type

Logic controller

[Us] rated supply voltage

100...240 V AC

Discrete input number

24, discrete input conforming to IEC 61131-2 Type 1

Analogue input number

2 at 0...10 V

Discrete output type

Relay normally open

Discrete output number

16 relay

Discrete output voltage

5...125 V DC 5...250 V AC

Discrete output current

2 A

Discrete I/O number

40

Maximum number of I/O expansion module

7 (local I/O-Architecture) 14 (remote I/O-Architecture)

Supply voltage limits

85…264 V

Network frequency

50/60 Hz

Inrush current

40 A

Discrete input logic

Sink or source (positive/negative)

Discrete input voltage

24 V

Discrete input voltage type

DC

Analogue input resolution

10 bits

LSB value

10 mV

Conversion time

1 ms per channel + 1 controller cycle time for analogue input

Analog input Voltage state 1 guaranteed

>= 15 V for input

Voltage state 0 guaranteed

<= 5 V for input

Discrete input current

7 mA for discrete input 5 mA for fast input

Maximum current per output common

7 A

Absolute accuracy error

+/- 1 % of full scale for analog input

Switching frequency

20 switching operations/minute with maximum load

Mechanical durability

20000000 cycles for relay output

Minimum load

1 mA at 5 V DC for relay output

Protection type

Without protection at 5 A

Reset time

1 s

Data backed up

256 kB built-in flash memory for backup of application and data

Data storage equipment

2 GB SD card (optional)

Battery type

BR2032 or CR2032X lithium non-rechargeable

Backup time

1 year at 25 °C (by interruption of power supply)

Execution time for 1 KInstruction

0.3 ms for event and periodic task

Execution time per instruction

0.2 µs Boolean

Exct time for event task

60 µs response time

Realtime clock

With

Clock drift

<= 30 s/month at 25 °C

Regulation loop

Adjustable PID regulator up to 14 simultaneous loops

Counting input number

4 fast input (HSC mode) at 100 kHz 32 bitsImmunity to microbreaks 10 ms

Ambient air temperature for operation

-10…55 °C (horizontal installation) -10…35 °C (vertical installation)

Ambient air temperature for storage

-25…70 °C



Information About TM221CE40R


The TM221CE40R is a logic controller belonging to the Modicon M221 range, which offers programmable logic controllers tailored for hardwired architectures. With 24 discrete inputs and 16 relay ethernet outputs, featuring 10-bit input resolution and normally opened relay output, it provides versatile control capabilities.

Operating within a rated supply voltage range of 100V to 240V AC, and outputting at 5V to 125V DC or 5V to 250V AC, with a maximum output current of 2A, it supports both sink and source input logic configurations. The installation process for this controller is minimal, offering ease of integration into various systems.

Featuring integrated connections including a USB port with mini B USB 2.0 connector, non-isolated serial link serial 1 with RJ45 connector, RS232/RS485 interface, and Ethernet with RJ45 connector, it ensures seamless connectivity with other devices and networks.

Operating at a network frequency of 50/60Hz, the TM221CE40R is equipped with 256KB of internal variables RAM, user application and data RAM, along with a built-in flash memory of 256KB and an SD card memory capacity of 2GB, facilitating efficient data management and storage.

With an IP20 rating, the TM221CE40R ensures protection against solid objects larger than 12mm and offers reliable operation even in challenging environments. Its compact dimensions of 160mm (Width) x 70mm (Depth) x 90mm (Height) and lightweight design weighing 0.456kg contribute to its ease of deployment and space efficiency.

Certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC, and CULus, and compliant with EN/IEC 60664-1, EN/IEC 61131-2, and EN/IEC 61010-2-201 standards, the TM221CE40R adheres to stringent quality and safety regulations.




Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
