TM221ME16R | Schneider Electric | Logic controller
- Regular price
- $329.00
- Sale price
- $329.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: TM221ME16R
Description
Technical Specifications
|
Part # |
TM221ME16R |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
MODICON |
|
Category |
PLCs/Machine Control |
|
Subcategory |
Brick PLC Range of product |
|
Product or component type |
Logic controller |
|
[Us] rated supply voltage |
24 V DC |
|
Discrete input number |
8, discrete input conforming to IEC 61131-2 Type 1 |
|
Analogue input number |
2 at 0...10 V |
|
Discrete output type |
Relay normally open |
|
Discrete output number |
8 relay |
|
Discrete output voltage |
5...125 V DC, 5...250 V AC |
|
Discrete output current |
2 A |
|
Supply voltage limits |
20.4…28.8 V |
|
Inrush current |
35 A |
|
Maximum power consumption in W |
23.3 W at 24 V (with max number of I/O expansion module) |
|
Discrete input logic |
Sink or source (positive/negative) |
|
Discrete input voltage |
24 V |
|
Discrete input voltage type |
DC |
|
Analogue input resolution |
10 bits |
|
LSB value |
10 mV |
|
Conversion time |
1 ms per channel + 1 controller cycle time for analogue input |
|
Analog input Voltage state 1 guaranteed |
>= 15 V for input |
|
Analog input Voltage state 0 guaranteed |
<= 5 V for input |
|
Output voltage limits |
125 V DC, 277 V AC |
|
Maximum current per output common |
7 A |
|
Absolute accuracy error |
+/- 1 % of full scale for analog input |
|
Switching frequency |
20 switching operations/minute with maximum load |
|
Mechanical durability |
20000000 cycles for relay output |
|
Minimum load |
1 mA at 5 V DC for relay output |
|
Protection type |
Without protection at 5 A |
|
Reset time |
1 s |
|
Data storage equipment |
2 GB SD card (optional) |
|
Battery type |
BR2032 or CR2032X lithium non-rechargeable |
|
Backup time |
1 year at 25 °C (by interruption of power supply) |
|
Execution time per instruction |
0.2 µs Boolean |
|
Execution time for event task |
60 µs response time |
|
Clock drift |
<= 30 s/month at 25 °C |
|
Regulation loop |
Adjustable PID regulator up to 14 simultaneous loops |
|
Immunity to microbreaks |
10 ms |
|
Ambient air temperature for operation |
-10…55 °C (horizontal installation), -10…35 °C (vertical installation) |
|
Ambient air temperature for storage |
-25…70 °C |
|
Relative humidity |
10…95 %, without condensation (in operation), 10…95 %, without condensation (in storage) |
|
IP degree of protection |
IP20 with protective cover in place |
|
Pollution degree |
<= 2 |
|
Operating altitude |
0...2000 m |
|
Storage altitude |
0…3000 m |
|
Shock resistance |
98 m/s² for 11 ms |
Information About TM221ME16R

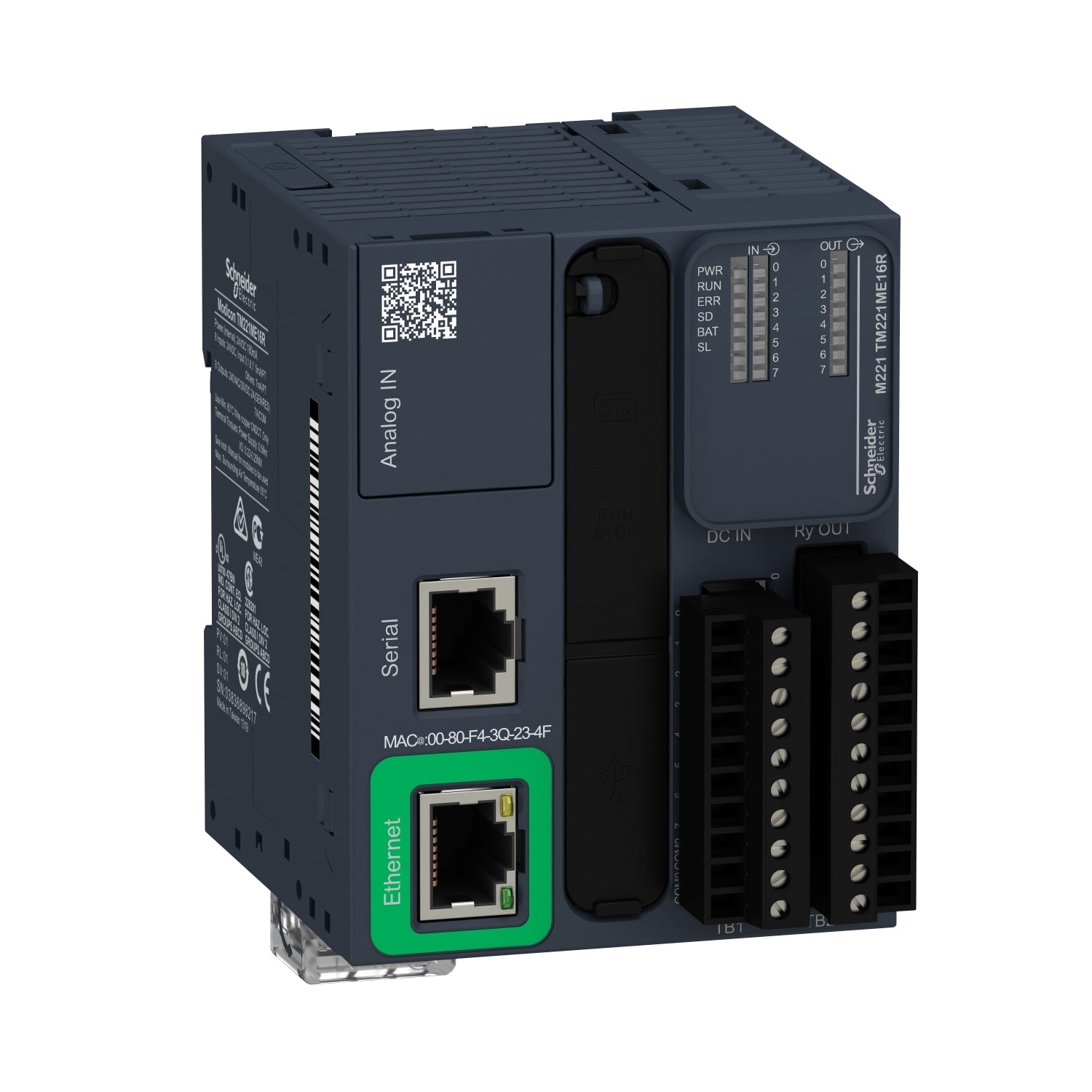

The TM221ME16R is a logic controller belonging to the Modicon M221 Logic controller series. Featuring 16 logic I/O, it operates on a 24V DC power supply. Equipped with removable screw terminal blocks, it facilitates the connection of I/O components and the power supply. Additionally, it comes with a button cell backup battery BR2032 and a cable for analog inputs.
Modicon M221 logic controllers are integrated with three communication ports: Ethernet, RS 232/RS 485 serial link, and USB mini-B programming port. These ports enable seamless communication and programming capabilities. The TM221ME16R is designed to control simple machines effectively, offering reliability and ease of operation.
Moreover, the capacity of M221 logic controllers can be expanded with the Modicon TM3 expansion module offer, providing flexibility and scalability to meet evolving application requirements. With its versatile features and expandable architecture, the TM221ME16R is suitable for a wide range of industrial automation tasks.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms and Conditions
IQElectro is not an authorized distributor.
