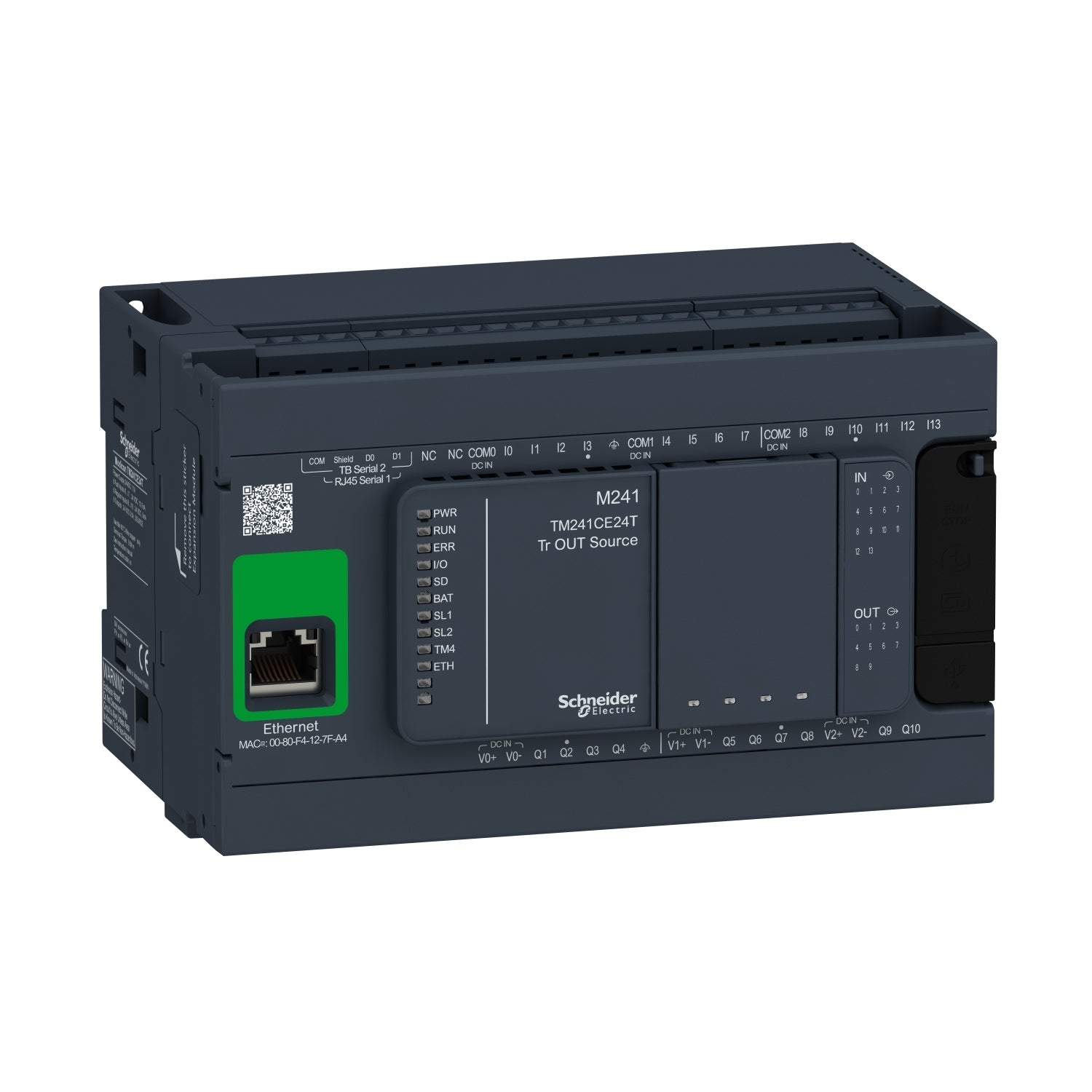

TM241CE24T | Schneider Electric | Logic controller
- Regular price
- $499.00
- Sale price
- $499.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TM241CE24T
Description
The TM241CE24T is a logic controller within the Modicon M241 series, designed for performance-demanding applications. It features 24 IO channels, comprising 14 discrete inputs, 8 fast inputs, 10 transistor outputs, and 4 fast outputs with Ethernet connectivity and PNP transistor output.
Operating on a rated supply/output voltage of 24V DC, the controller supports a maximum output current of 0.5A for transistor outputs and 0.1A for fast outputs, with sink or source input logic and positive output logic.
The TM241CE24T offers intuitive application development with organized screen design. Integrated connections include a USB port with mini B USB 2.0, non-isolated serial link 1 with RJ45 and RS232/RS485 interface, non-isolated serial link 2 with removable screw terminal block and RS485 interface, and Ethernet with RJ45.
Technical Specifications
|
Part # |
TM241CE24T |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
MODICON |
|
Category |
PLCs/Machine Control |
|
Subcategory |
Brick PLC Range of Product |
|
Modicon M241 |
Logic controller |
|
[Us] rated supply voltage |
24 V DC |
|
Discrete input number |
14, discrete input 8 fast input IEC 61131-2 Type 1 |
|
Discrete output type |
Transistor |
|
Discrete output number |
10 transistor 4 fast output |
|
Discrete output voltage |
24 V DC transistor output |
|
Discrete output current |
0.5 A transistor output Q0...Q9 |
|
Discrete I/O number |
24 |
|
Maximum number of I/O expansion module |
7 (local I/O-Architecture) |
|
Supply voltage limits |
20.4…28.8 V |
|
Inrush current |
50 A |
|
Power consumption in W |
32.6…40.4 W with max number of I/O expansion module |
|
Discrete input logic |
Sink or source |
|
Discrete input voltage |
24 V |
|
Discrete input voltage type |
DC |
|
Voltage state 1 guaranteed |
>= 15 V input |
|
Voltage state 0 guaranteed |
<= 5 V input |
|
Discrete input current |
5 mA input, 10.7 mA fast input |
|
Input impedance |
4.7 kOhm input, 2.81 kOhm fast input |
|
Discrete output logic |
Positive logic (source) |
|
Output voltage limits |
30 V DC |
|
Memory capacity |
64 MB system memory RAM |
|
Data backed up |
128 MB built-in flash memory backup of user programs |
|
Data storage equipment |
<= 16 GB SD card optional |
|
Battery type |
BR2032 lithium non-rechargeable 4 year(s) |
|
Backup time |
2 years 77 °F (25 °C) |
|
Execution time for 1 KInstruction |
0.3 ms event and periodic task |
Information About TM241CE24T
The TM241CE24T is a logic controller belonging to the Modicon M241 series, tailored for performance-demanding applications. It features 24 IO channels, comprising 14 discrete inputs and 8 fast inputs, along with 10 transistor outputs and 4 fast outputs featuring Ethernet PNP transistor output.
Operating on a rated supply/output voltage of 24V DC, the controller delivers an output current of 0.5A for transistor outputs and 0.1A for fast output current, with sink or source input logic and positive output logic.
This Modicon logic controller facilitates intuitive application development, thanks to its organized screen design. Integrated connections include a USB port with mini B USB 2.0, non-isolated serial link 1 with RJ45 and RS232/RS485 interface, non-isolated serial link 2 with removable screw terminal block and RS485 interface, and Ethernet with RJ45.
As a Modicon M241 controller, it offers 8MB for program storage, 64MB for system memory RAM, 128MB built-in flash memory for user program backup, and a SD card memory capacity of 16GB. With an IP20 rating, its dimensions measure 150mm (Width) x 95mm (Depth) x 90mm (Height), weighing 0.53kg.
Designed for high-performance compact machines integrating speed and position control functions, the Modicon M241 logic controllers conform to various standards, including CE, IACS E10, CSA, RCM, and CULus. They meet ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specifications (LR, ABS, DNV, GL), UL 1604, and UL 508.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
