Part #: TM3AI8 Manufactured by: Schneider Electric
Regular price
$197.00
Sale price
$197.00
Regular price
1 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The TM3AI8 is an analog input module from the Modicon TM3 series, part of a range of expansion I/O modules tailored for Mo...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: TM3AI8
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: TM3AI8

Description / Specifications

Description

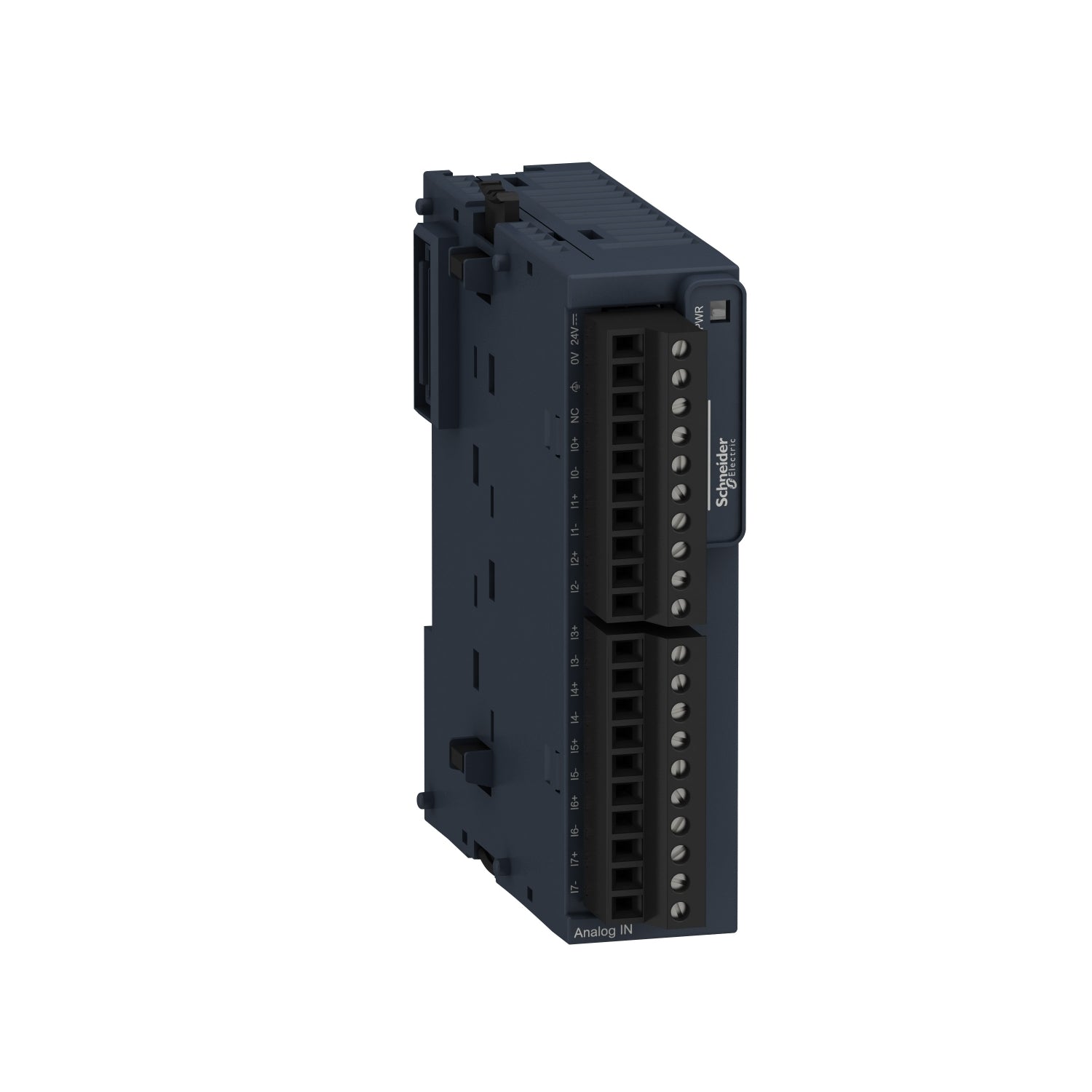

The TM3AI8 is an analog input module belonging to the Modicon TM3 series, designed as expansion I/O modules compatible with Modicon M221, M241, M251, and M262 controllers. This module offers 8 inputs with 11bit + sign and 12bit resolution. It operates with a rated supply voltage of 24V DC, consuming 35mA at 5V DC via bus connector (no load), 45mA at 5V DC via bus connector (full load), and 30mA at 24V DC via external supply.
