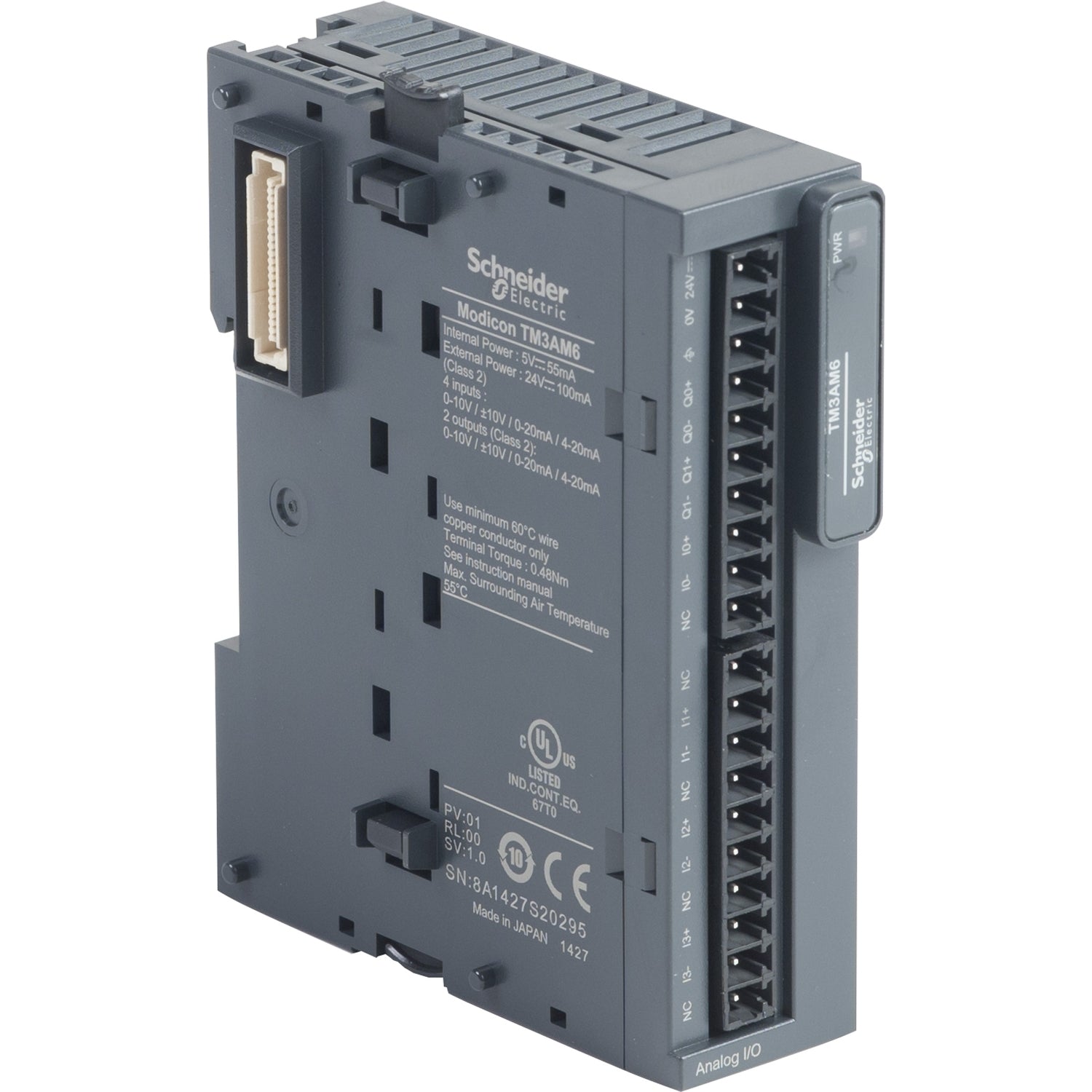

TM3AM6 | Schneider Electric IO analog module, Modicon TM3, 4 inputs, 2 output, screw, 24V DC
- Regular price
- $250.00
- Sale price
- $250.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TM3AM6
Description
Schneider Electric Modicon Square D Analog I/O Module, Series: TM3, 4 Inputs, 2 Outputs, 1 ms Conversion Rate, 12 bit Resolution, 24 VDC, 20/4/20 mA, Screw Terminal, -10 to 55 deg C Horizontal, -10 to 35 deg C Vertical Installation, 0.93 in W x 2.76 in D x 3.54 in H Dimensions
Technical Specifications
| Brand | Schneider Electric |
| Part Number | TM3AM6 |
| Category | PLCs/Machine Control |
| Subcategory | VDC Logic I/O Module |
| Amperage Rating | 20/4/20 mA |
| Dimensions | 0.93 in W x 2.76 in D x 3.54 in H, 3.54 in H x 0.93 in W x 2.76 in D |
| Number of inputs | 4 |
| Number of outputs | 2 |
| Resolution | 12 bit |
| Series | TM3 |
| Temperature Rating (Degrees F) | -10 to 55 deg C Horizontal, -10 to 35 deg C Vertical Installation |
| Terminal Type | Screw |
| Voltage Rating | 24 VDC |
Information About TM3AM6
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue I/O module provides 4 inputs and 2 outputs with 11bit + sign and 12bit input resolution. It is an I/O module with a rated supply voltage of 24V DC, a current consumption of 45mA, 55mA at 5V DC via bus connector, 55mA, 100mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC, output and supply at 1500V AC and output and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Features
Digital I/O modules which can be used to create configurations with up to 264 digital I/O
Analog I/O modules which can be used to create configurations with up to 114 analog I/O and are designed to receive, amongst other things, position, temperature or speed sensor signals
Expert modules for the control of TeSys motor starters which simplify wiring up the control section due to connection with RJ45 cables
Functional safety modules which simplify wiring and can be configured in the SoMachine basic software
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
Description
Schneider Electric Modicon Square D Analog I/O Module, Series: TM3, 4 Inputs, 2 Outputs, 1 ms Conversion Rate, 12 bit Resolution, 24 VDC, 20/4/20 mA, Screw Terminal, -10 to 55 deg C Horizontal, -10 to 35 deg C Vertical Installation, 0.93 in W x 2.76 in D x 3.54 in H Dimensions
Technical Specifications
| Brand | Schneider Electric |
| Part Number | TM3AM6 |
| Category | PLCs/Machine Control |
| Subcategory | VDC Logic I/O Module |
| Amperage Rating | 20/4/20 mA |
| Dimensions | 0.93 in W x 2.76 in D x 3.54 in H, 3.54 in H x 0.93 in W x 2.76 in D |
| Number of inputs | 4 |
| Number of outputs | 2 |
| Resolution | 12 bit |
| Series | TM3 |
| Temperature Rating (Degrees F) | -10 to 55 deg C Horizontal, -10 to 35 deg C Vertical Installation |
| Terminal Type | Screw |
| Voltage Rating | 24 VDC |
Information About TM3AM6
This product is part of the Modicon TM3 range, an offer of expansion I/O modules for Modicon M221, M241, M251 and M262. The analogue I/O module provides 4 inputs and 2 outputs with 11bit + sign and 12bit input resolution. It is an I/O module with a rated supply voltage of 24V DC, a current consumption of 45mA, 55mA at 5V DC via bus connector, 55mA, 100mA at 24V DC via external supply. This product is capable of controlling variable speed drives or any device equipped with a current or voltage input. There is an insulation between input and supply at 1500V AC, input and internal logic at 500V AC, output and supply at 1500V AC and output and internal logic at 500V AC. It is furnished with removable screw terminal for electrical connection with 3.18mm pitch adjustment for inputs and supply. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.
Features
Digital I/O modules which can be used to create configurations with up to 264 digital I/O
Analog I/O modules which can be used to create configurations with up to 114 analog I/O and are designed to receive, amongst other things, position, temperature or speed sensor signals
Expert modules for the control of TeSys motor starters which simplify wiring up the control section due to connection with RJ45 cables
Functional safety modules which simplify wiring and can be configured in the SoMachine basic software
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
