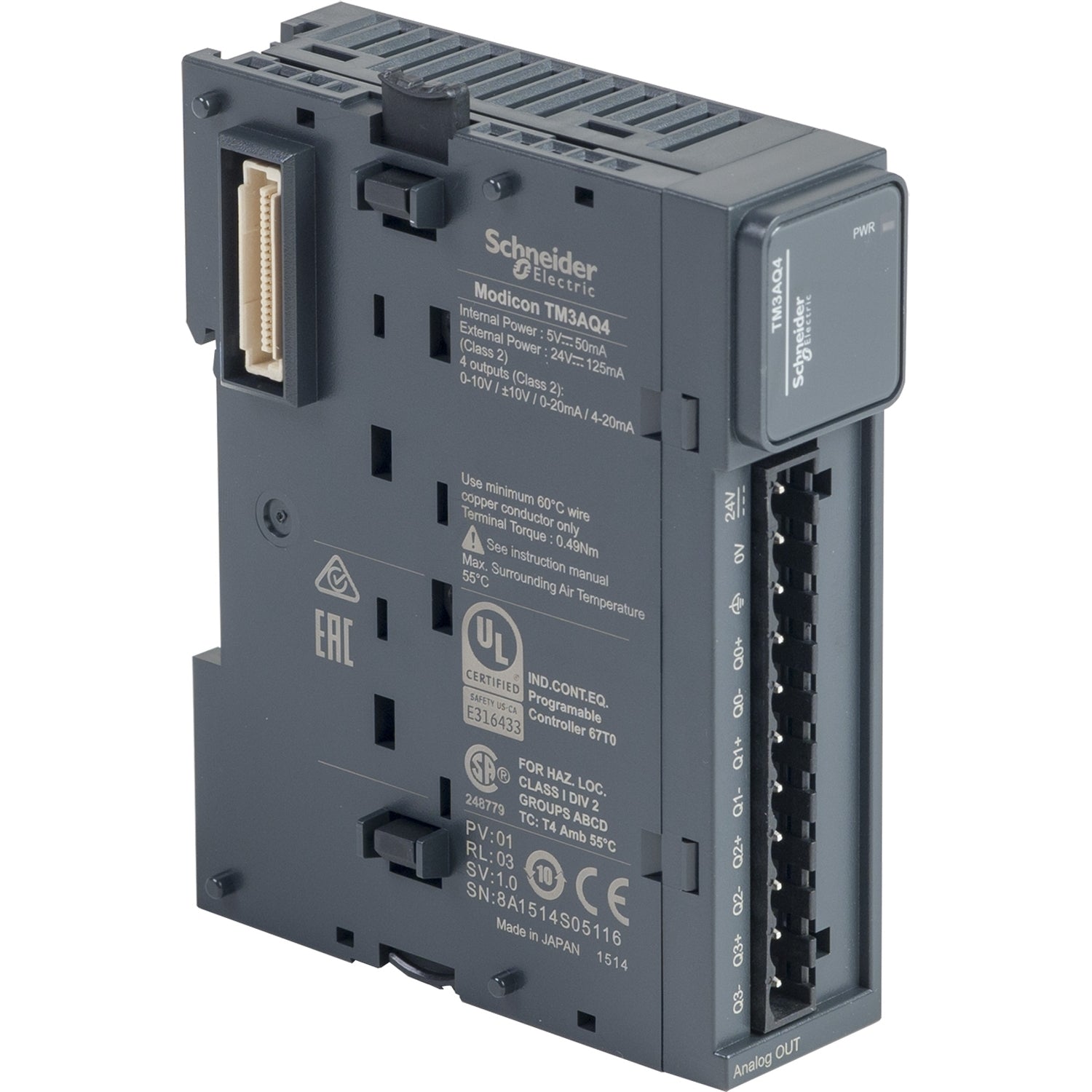

TM3AQ4 | Schneider Electric Analog output module
- Regular price
- $159.00
- Sale price
- $159.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TM3AQ4
Description
Technical Specifications
|
Part # |
TM3AQ4 |
|
Manufacturer |
SCHNEIDER ELECTRIC |
|
Brand |
MODICON |
|
Category |
PLCs/Machine Control |
|
Subcategory |
VDC Logic I/O Module Range of Product |
|
Modicon Series |
Modicon TM3 |
|
Product or Component Type |
Analog output module |
|
Stabilisation time |
1 ms |
|
Conversion time |
1 ms + 1 ms per channel + 1 controller cycle time |
|
Absolute accuracy error |
+/- 1% of full scale |
|
Temperature Drift |
+/- 0.01%FS/°C |
|
Repeat accuracy |
+/- 0.4%FS |
|
Non-linearity |
+/- 0.2%FS |
|
Output ripple |
20 mV |
|
Cross talk |
<= 1 LSB |
|
[Us] rated supply voltage |
24 V DC |
|
Supply voltage limits |
20.4…28.8 V |
|
Type of cable |
Twisted shielded pairs cable <98.43 ft (30 m) |
|
Local signalling |
For PWR 1 LED (green) |
|
Electrical connection |
11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for outputs and supply |
|
Resistance to magnetic fields |
98.43 A/m (30 A/m) IEC 61000-4-8 |
|
Resistance to fast transients |
1 kV IEC 61000-4-4 I/O) |
|
Immunity to microbreaks |
10 ms |
Information About TM3AQ4
The TM3AQ4 is an analog output module within the Modicon TM3 range, serving as part of the expansion I/O modules compatible with Modicon M221, M241, M251, and M262 logic controllers. This module facilitates 4 outputs with 11-bit + sign and 12-bit resolution, enabling precise control over connected devices. Operating with a rated supply voltage of 24V DC, it consumes 125mA at full load via an external supply.
Primarily designed for controlling variable speed drives or devices with current or voltage inputs, the TM3AQ4 ensures reliable performance with insulation between output and supply at 1500V AC and output and internal logic at 500V AC. Its removable screw terminals allow for easy electrical connection with a 5.08mm pitch adjustment for outputs and supply.
With an IP20 rating, the module offers protection against solid objects and ingress of foreign particles. Its compact dimensions measure 23.6mm (Width) x 70mm (Depth) x 90mm (Height), weighing 0.115kg. Certified by CE and compliant with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards, the TM3AQ4 ensures adherence to safety and performance regulations.
Compatible with Modicon M262, M241, M251, and M221 logic controllers, the TM3AQ4 supports various mounting options including top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715, and plate or panel with a fixing kit mount. Designed with a simple interlocking assembly mechanism, Modicon TM3 expansion modules utilize a bus expansion connector for distributing data and power supply when combined with logic controllers.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
