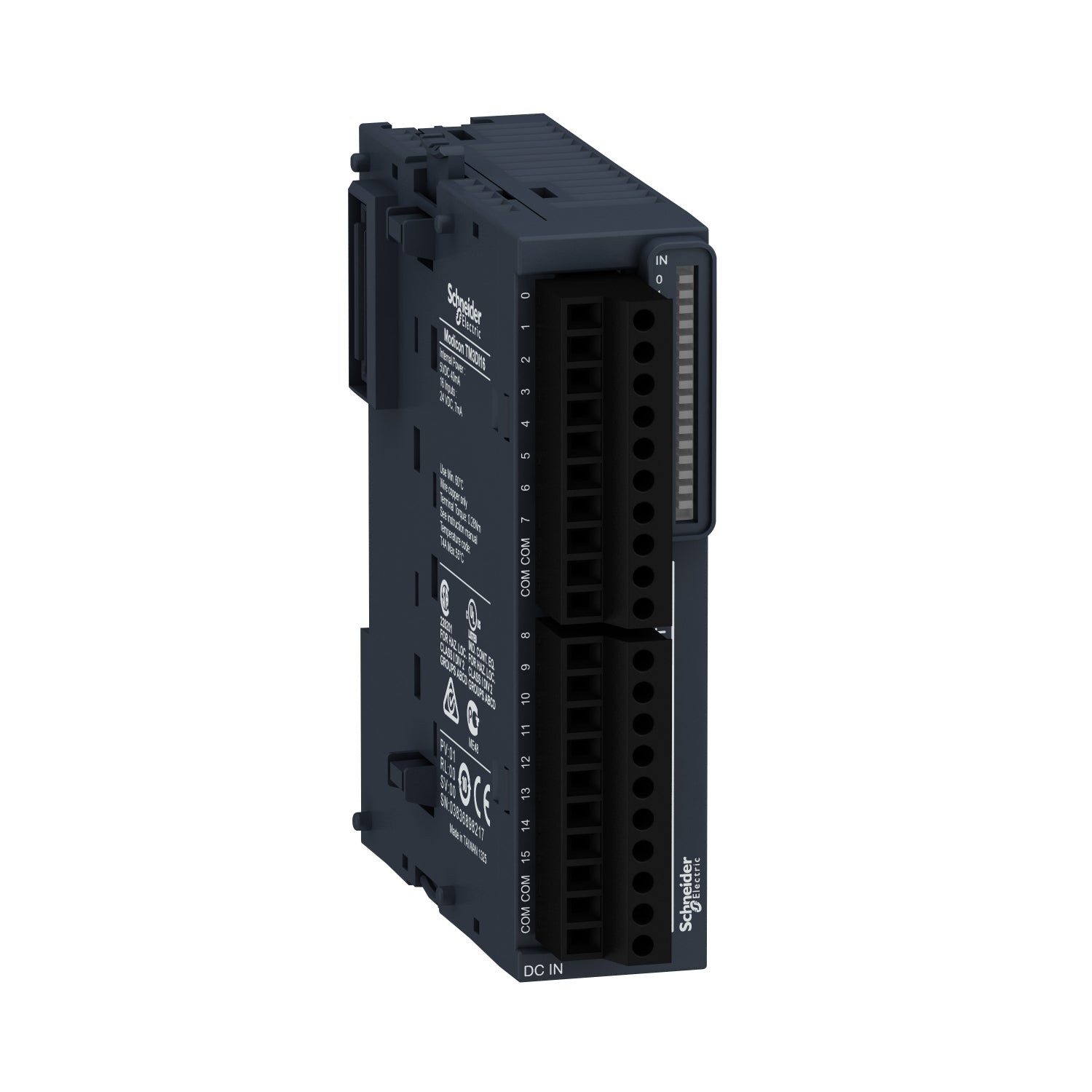

TM3DI16 | Schneider Electric Discrete input module, Modicon TM3, 16 inputs, screw, 24V DC
TM3DI16 | Schneider Electric Discrete input module, Modicon TM3, 16 inputs, screw, 24V DC
Part #: TM3DI16 Manufactured by: Schneider Electric

TM3DI16 | Schneider Electric Discrete input module, Modicon TM3, 16 inputs, screw, 24V DC

Regular price
$124.00
Sale price
$124.00
Regular price
Never Used Surplus
4 in Stock
Shipping calculated at checkout.
Product Overview
DC digital input module - Schneider Electric / Modicon (Modicon TM3 series) - 16I/Os [16DI (16 x digital inputs (24Vdc; 7m...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: TM3DI16
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
TM3DI16 | Schneider Electric Discrete input module, Modicon TM3, 16 inputs, screw, 24V DC
    TM3DI16 | Schneider Electric Discrete input module, Modicon TM3, 16 inputs, screw, 24V DC
TM3DI16 | Schneider Electric Discrete input module, Modicon TM3, 16 inputs, screw, 24V DC
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: TM3DI16

Description / Specifications

Description

The TM3DI16 by Schneider Electric is a discrete input module part of the Modicon TM3 series. Featuring 16 inputs and screw terminals, it operates at 24V DC, enabling seamless integration and reliable signal monitoring in industrial automation applications.


Technical Specifications


Brand Schneider Electric
Part Number TM3DI16
Category PLCs/Machine Control
Subcategory VDC Logic I/O Module
Accessory Type PLC I/O Module
Range Modicon TM3
Series TM3
Input Type DC
Number of Inputs 16
For Use With Modicon M221, Modicon M241, Modicon M251
Supply Voltage 24 V
Cable Length 50m
Maximum Operating Temperature +55°C
Input Current 7 mA
IP Rating IP20
Mounting Type Panel Mount
Series Modicon TM3 Series
Turn Off Time 4 ms
Turn On Time 4 ms




Information About TM3DI16

This digital input module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers. It consists in 16 logic inputs and it is supplied with 24V dc. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. This digital I/O module complement the embedded I/O on Modicon M221, M221 Book, M241 and M251 logic controllers. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for inputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.105kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The TM3DI16 by Schneider Electric is a discrete input module part of the Modicon TM3 series. Featuring 16 inputs and screw terminals, it operates at 24V DC, enabling seamless integration and reliable signal monitoring in industrial automation applications.


Technical Specifications


Brand Schneider Electric
Part Number TM3DI16
Category PLCs/Machine Control
Subcategory VDC Logic I/O Module
Accessory Type PLC I/O Module
Range Modicon TM3
Series TM3
Input Type DC
Number of Inputs 16
For Use With Modicon M221, Modicon M241, Modicon M251
Supply Voltage 24 V
Cable Length 50m
Maximum Operating Temperature +55°C
Input Current 7 mA
IP Rating IP20
Mounting Type Panel Mount
Series Modicon TM3 Series
Turn Off Time 4 ms
Turn On Time 4 ms




Information About TM3DI16

This digital input module is part of the Modicon TM3 range of I/O expansion modules for Modicon controllers. It consists in 16 logic inputs and it is supplied with 24V dc. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. This digital I/O module complement the embedded I/O on Modicon M221, M221 Book, M241 and M251 logic controllers. There is an insulation between output and supply at 1500V AC, output and internal logic at 500V AC. It is furnished with removable spring terminal for electrical connection with pitch 3.81mm adjustment for inputs. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.105kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers.



Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
