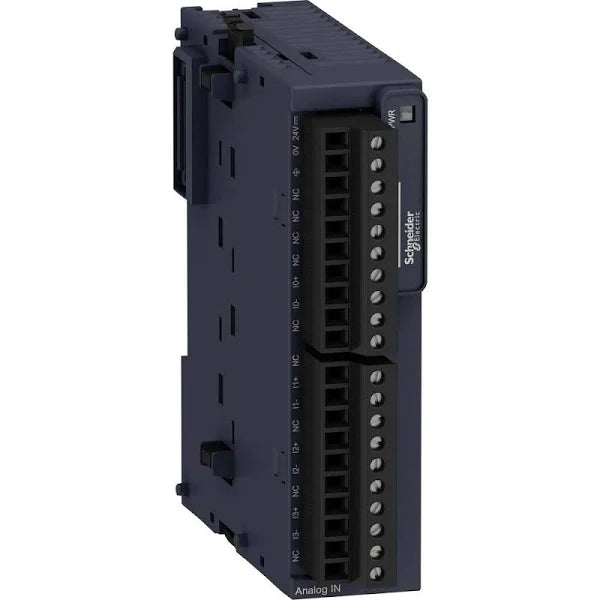

TM3TI4 | Schneider Electric | Module
TM3TI4 | Schneider Electric | Module
Part #: TM3TI4 Manufactured by: Schneider Electric

TM3TI4 | Schneider Electric | Module

Regular price
$159.00
Sale price
$159.00
Regular price
Never Used Surplus
118 in Stock
Shipping calculated at checkout.
Product Overview
The Schneider Electric TM3TI4 Electric PLC I/O Module is a component of the TM3 Series and belongs to the Modicon TM3 rang...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
IQElectro LLC BBB Business Review
warranty
Product comes with IQElectro 2-Year Warranty
Warranty for item #: TM3TI4
IQElectro offers a complimentary 2-year warranty on all our products. This ensures that every purchase you make from IQElectro is a reliable and trustworthy investment for the future of your company. Warranty Terms
IQElectro is NOT an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.
TM3TI4 | Schneider Electric | Module
    TM3TI4 | Schneider Electric | Module
TM3TI4 | Schneider Electric | Module
Return/Exchange within 30-Days.
If any product is damaged upon delivery, you may request an Exchange or Refund within 30 days of receiving your order.
2-3 Day Free Shipping
IQElectro provides free shipping within 2-3 days from the moment the order is placed on our website.

Product Description P/N: TM3TI4

Description / Specifications

Description

The Schneider Electric TM3TI4 Electric PLC I/O Module belongs to the TM3 Series and is part of the Modicon TM3 range, designed as expansion I/O modules for Modicon M221, M241, M251, and M262 controllers. This analogue input module provides 4 inputs with 16-bit resolution and 15-bit + sign resolution. It operates with a rated supply voltage of 24V DC and consumes 45mA/50mA at 5V DC via the bus connector and 35mA/40mA at 24V DC via external supply.

Capable of controlling variable speed drives or devices with current or voltage inputs, this module ensures insulation between input and supply at 1500V AC and input and internal logic at 500V AC. Featuring removable screw terminals for electrical connection with a pitch adjustment of 3.81mm for inputs and supply, it boasts an IP20 rating and dimensions of 23.6mm (Width) x 70mm (Depth) x 90mm (Height), weighing 0.11kg.





Technical Specifications



Specifications





Part Number

TM3TI4

Manufacturer

SCHNEIDER ELECTRIC

Brand

MODICON

Category

Controls & Indicators

Subcategory

Temperature/Process Control TM3-4

Number of Temperature Inputs

4

Internal Power

5 VDC, 50 mA

External Power

24 VDC, 40 mA

Sample Duration Time

10 ms or 100 ms per enabled channel (software configurable)

Default Sample Duration Time

100 ms per enabled channel

Input Type

Single-ended input (isolated thermocouples only)

Operating Mode

Self-scan

Conversion Mode

Sigma delta ADC

Max Accuracy at 25 °C

±0.2 % of full scale





Information About TM3TI4





The Schneider Electric TM3TI4 Electric PLC I/O Module belongs to the TM3 Series and is part of the Modicon TM3 range, offering expansion I/O modules compatible with Modicon M221, M241, M251, and M262 logic controllers. This analogue input module features four inputs with 16-bit and 15-bit + sign resolution.

Operating with a rated supply voltage of 24V DC, the module consumes 45mA/50mA at 5V DC via the bus connector and 35mA/40mA at 24V DC via an external power supply. It effectively controls variable speed drives and devices equipped with current or voltage inputs.

The module ensures insulation between input and supply at 1500V AC and between input and internal logic at 500V AC. It includes removable screw terminals for electrical connections, with a pitch adjustment of 3.81mm for inputs and supply. With an IP20 rating, it measures 23.6mm (Width) x 70mm (Depth) x 90mm (Height) and weighs 0.11kg.

Certified by CE, it complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It is compatible with Modicon M262, Modicon M241, Modicon M251, and Modicon M221 logic controllers, and supports top hat type TH35-15 and TH35-7.5 rails conforming to IEC 60715, as well as plate or panel mounting with fixing kit.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.

Warrany image

IQElectro 2 Year Warranty

IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.
Warranty Terms
warningIQElectro is not an authorized distributor.
IQElectro LLC (IQElectro) is NOT an Authorized Distributor or in any way affiliated with Rockwell Automation, Siemens, or any other Manufacturers. IQElectro is NOT an Authorized Dealer of this product. The product may be of older version, date codes, or design than that available from authorized dealers. As IQElectro is not an authorized dealer of this product, the Original Manufacturer's Warranty and Support DO NOT apply. IQElectro sells SURPLUS only and DOES NOT SELL SOFTWARE or FIRMWARE licenses. Some hardware products may contain software and firmware and may not be legally operated without first obtaining an appropriate license from the manufacturer. IQElectro makes no representation as to whether a product will or will not have software or firmware and, if it does, whether the software or firmware is the revision level that you need for your application. IQElectro also makes no representations as to your ability or right to download or otherwise obtain software or firmware for the product from the Original Manufacturer, its distributors, or any other source. IQElectro also makes no representations as to your right to install any such software or firmware on the product. IQElectro will not obtain or supply software or firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing software or firmware. Customer acknowledges and agrees that IQElectro DOES NOT provide any software, firmware, operating system, or right-to-use licenses with the products it sells. Customers understand and agree that proper software (firmware) licensing, maintenance, and upgrades are subject to the applicable manufacturer's Licensing Agreement or similar document. Disclaimer Policy.
Description / Specifications

Description

The Schneider Electric TM3TI4 Electric PLC I/O Module belongs to the TM3 Series and is part of the Modicon TM3 range, designed as expansion I/O modules for Modicon M221, M241, M251, and M262 controllers. This analogue input module provides 4 inputs with 16-bit resolution and 15-bit + sign resolution. It operates with a rated supply voltage of 24V DC and consumes 45mA/50mA at 5V DC via the bus connector and 35mA/40mA at 24V DC via external supply.

Capable of controlling variable speed drives or devices with current or voltage inputs, this module ensures insulation between input and supply at 1500V AC and input and internal logic at 500V AC. Featuring removable screw terminals for electrical connection with a pitch adjustment of 3.81mm for inputs and supply, it boasts an IP20 rating and dimensions of 23.6mm (Width) x 70mm (Depth) x 90mm (Height), weighing 0.11kg.





Technical Specifications



Specifications





Part Number

TM3TI4

Manufacturer

SCHNEIDER ELECTRIC

Brand

MODICON

Category

Controls & Indicators

Subcategory

Temperature/Process Control TM3-4

Number of Temperature Inputs

4

Internal Power

5 VDC, 50 mA

External Power

24 VDC, 40 mA

Sample Duration Time

10 ms or 100 ms per enabled channel (software configurable)

Default Sample Duration Time

100 ms per enabled channel

Input Type

Single-ended input (isolated thermocouples only)

Operating Mode

Self-scan

Conversion Mode

Sigma delta ADC

Max Accuracy at 25 °C

±0.2 % of full scale





Information About TM3TI4





The Schneider Electric TM3TI4 Electric PLC I/O Module belongs to the TM3 Series and is part of the Modicon TM3 range, offering expansion I/O modules compatible with Modicon M221, M241, M251, and M262 logic controllers. This analogue input module features four inputs with 16-bit and 15-bit + sign resolution.

Operating with a rated supply voltage of 24V DC, the module consumes 45mA/50mA at 5V DC via the bus connector and 35mA/40mA at 24V DC via an external power supply. It effectively controls variable speed drives and devices equipped with current or voltage inputs.

The module ensures insulation between input and supply at 1500V AC and between input and internal logic at 500V AC. It includes removable screw terminals for electrical connections, with a pitch adjustment of 3.81mm for inputs and supply. With an IP20 rating, it measures 23.6mm (Width) x 70mm (Depth) x 90mm (Height) and weighs 0.11kg.

Certified by CE, it complies with EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It is compatible with Modicon M262, Modicon M241, Modicon M251, and Modicon M221 logic controllers, and supports top hat type TH35-15 and TH35-7.5 rails conforming to IEC 60715, as well as plate or panel mounting with fixing kit.





Manufacturer information

Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
