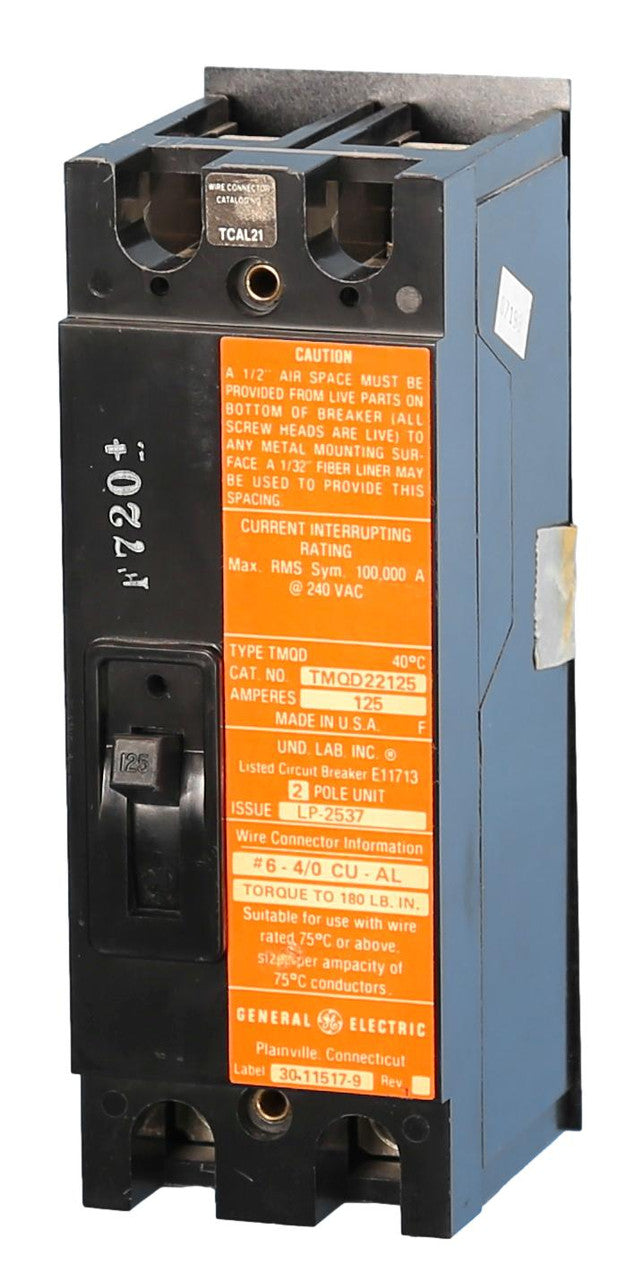

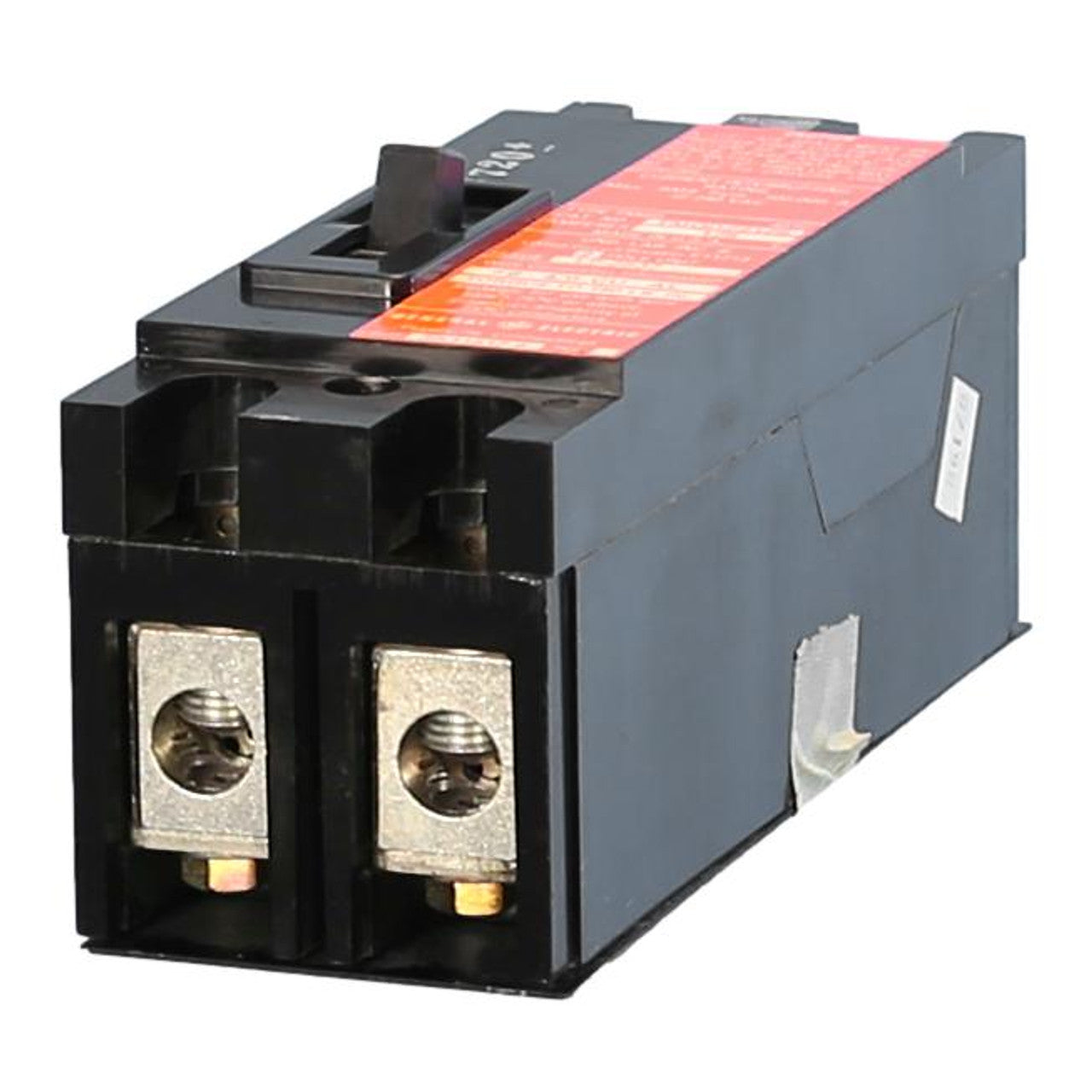

TMQD22125 | General Electric 125A 2-Pole 240V Bolt-On Molded Case Circuit Breaker
- Regular price
- $455.00
- Sale price
- $455.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TMQD22125
Description
The General Electric TMQD22125 is a 2-pole molded case circuit breaker designed to provide dependable protection for 240VAC electrical distribution systems. This breaker offers stable thermal-magnetic performance with a 125-amp rating suitable for both branch and main applications. The TMQD22125 is built for installations requiring high interrupting capacity and secure bolt-on connectivity.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Protection |
| Part Number | TMQD22125 |
| Subcategory | Molded Case Circuit Breakers |
| Series | TMQD |
| Amperage | 125A |
| Voltage Rating | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Interrupting Rating | 100kAIC at 240V |
| Protection Type | Thermal Magnetic |
| Functions | Long-Time and Instantaneous Trip |
| Mounting Type | Bolt-On |
| Connection Type | Bolt-On |
| Terminal Type | Load-Side Lug |
| Frame Type | TMQD |
| Temperature Rating | 40°C |
| Contactor Type | Magnetic |
| Weight | 3 Ibs |
Information About TMQD22125
The TMQD22125 is part of GE’s TMQD series, engineered for high-demand commercial and light-industrial distribution panels. It features a durable molded case design and bolt-on mounting for secure installation and consistent contact integrity. This breaker supports long-time and instantaneous trip functions, making it suitable for overcurrent and short-circuit protection in single-phase systems. Its high 100kAIC interrupting rating at 240V provides expanded compatibility with environments requiring elevated fault-current tolerance.
Key Features:
- 125A Current Rating: Supports medium-capacity circuits in commercial and industrial systems.
- High Interrupting Capacity: Rated at 100kAIC at 240V for demanding fault-current conditions.
- Thermal-Magnetic Protection: Provides long-time and instantaneous trip functions for accurate overload response.
- Durable Molded Case: Ensures reliable operation and prolonged mechanical life.
- Bolt-On Connection: Offers secure panel integration and stable electrical contact.
- Load-Side Lug Terminal: Supports straightforward and dependable conductor termination.
- TMQD Frame Design: Matches GE distribution equipment for consistent performance and compatibility.
The TMQD22125 delivers the reliability and precision required for safe and stable power distribution in 240VAC systems.
