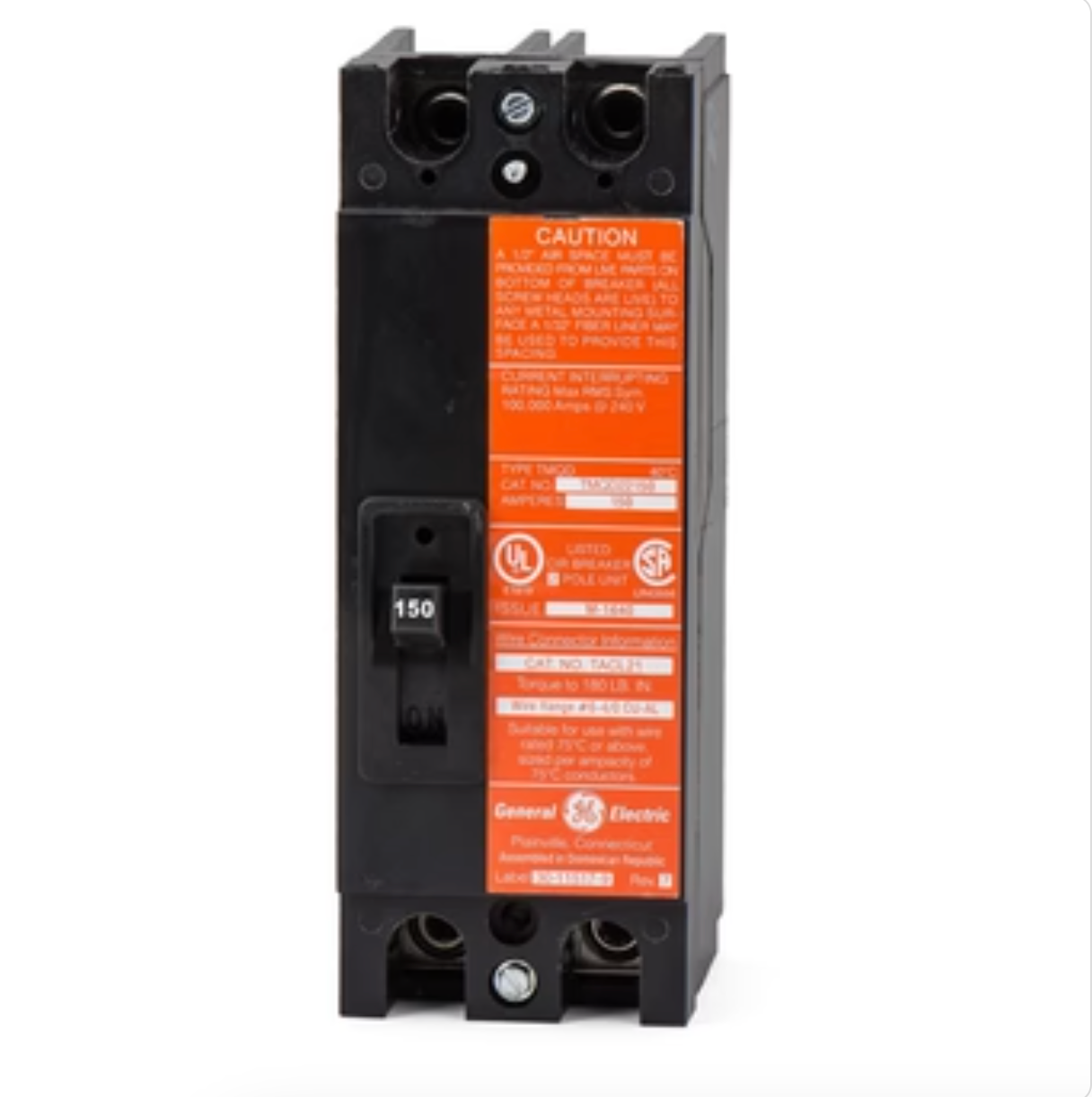

TMQD22150 | General Electric 150A 2-Pole 240V Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TMQD22150
Description
The General Electric TMQD22150 is a 2-pole thermal magnetic molded case circuit breaker designed for reliable protection of electrical systems operating at 240VAC. With a current rating of 150A and a high interrupting capacity of 100kAIC, it provides dependable overload and short-circuit protection. The TMQD22150 is ideal for commercial and industrial power distribution applications requiring secure and consistent circuit control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Protection |
| Part Number | TMQD22150 |
| Subcategory | Molded Case Circuit Breaker |
| Series | TMQD Q-Line |
| Amperage | 150A |
| Voltage Rating | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Interrupting Capacity | 100kAIC @ 240V |
| Connection Type | Bolt-On |
| Protection Type | Thermal Magnetic |
| Trip Function | Long-Time and Instantaneous |
| Frame Type | TMQD Frame |
| Mounting Type | Bolt-On |
| Terminal Type | Load Side Lug |
| Temperature Rating | 40°C |
| Frequency | 50/60Hz |
| Certifications | UL Listed, CSA Approved |
| Application | Commercial and Industrial Power Panels |
| Weight | 1.93 kg |
Information About TMQD22150
The TMQD22150 is part of General Electric’s TMQD Q-Line series, engineered for robust circuit protection and long-term performance. It features a bolt-on connection type for secure installation in panelboards and switchboards, offering LI (long-time and instantaneous) trip functionality for precise current regulation. This breaker operates efficiently in single-phase systems rated up to 240VAC and is built for use in demanding load environments. Its thermal magnetic mechanism combines temperature-based overload protection with instantaneous magnetic response for fault conditions, ensuring reliable operation under standard 40°C ambient conditions.
Key Features:
- High Interrupting Capacity: Rated at 100kAIC at 240V for dependable short-circuit protection.
- Thermal Magnetic Mechanism: Provides both overload (thermal) and short-circuit (magnetic) protection.
- Bolt-On Mounting: Ensures a stable and vibration-resistant installation.
- 2-Pole Configuration: Suitable for single-phase applications requiring double-pole circuit protection.
- LI Trip Function: Long-time and instantaneous trip functions for accurate circuit management.
- Compact Molded Case: Space-saving design compatible with GE Q-Line systems.
- Temperature Rating: Calibrated for operation in 40°C environments.
- UL and CSA Certified: Complies with key safety and performance standards.
The TMQD22150 delivers the reliability and precision required for commercial and industrial circuit protection systems.
