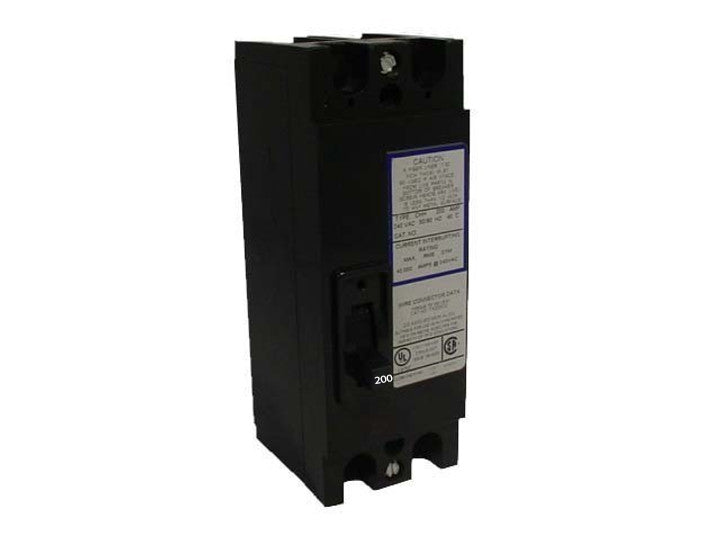

TMQD22200 | General Electric 200A 2-Pole 240V Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $1,185.00
- Sale price
- $1,185.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TMQD22200
Description
The General Electric TMQD22200 is a 2-pole thermal magnetic molded case circuit breaker engineered for dependable electrical protection in commercial and industrial installations. Designed to operate at 240VAC with a 200A current rating, it combines robust performance with high interrupting capacity. The TMQD22200 ensures safe operation and efficient overload and short-circuit protection for distribution systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Protection |
| Part Number | TMQD22200 |
| Subcategory | Molded Case Circuit Breaker |
| Series | TMQD Q-Line |
| Amperage | 200A |
| Voltage Rating | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Interrupting Capacity | 100kAIC @ 240V |
| Connection Type | Bolt-On |
| Protection Type | Thermal Magnetic |
| Trip Function | Long-Time and Instantaneous |
| Frame Type | TMQD Frame |
| Frequency | 50/60Hz |
| Terminal Type | Load Side Lug |
| Enclosure Type | Open (None) |
| Temperature Rating | 40°C |
| Certifications | UL Listed, CSA Approved |
| Weight | 4.25 lbs |
Information About TMQD22200
The TMQD22200 is part of General Electric’s TMQD Q-Line series, known for its durable molded case design and reliable protection characteristics. It features a bolt-on connection for secure panel mounting and integrates LI (long-time and instantaneous) trip functions for precise current management. Suitable for use in tenant main applications and lighting panels, the breaker is rated at 100kAIC at 240V, making it ideal for demanding load environments. The device operates within a 40°C ambient temperature and is built to meet UL and CSA standards for electrical safety and performance.
Key Features:
- High Interrupting Capacity: Rated at 100kAIC at 240V for robust protection against high fault currents.
- Thermal Magnetic Protection: Provides both overload (thermal) and short-circuit (magnetic) protection.
- Bolt-On Connection: Ensures a secure and stable mounting for panelboard installations.
- 2-Pole Configuration: Supports single-phase applications requiring double-pole circuit protection.
- Non-Interchangeable Trip Unit: Factory-calibrated for consistent and reliable performance.
- Compact Molded Case: Designed for space-efficient installation without sacrificing strength.
- CSA and UL Certified: Meets recognized safety and quality standards.
- Temperature Rated at 40°C: Maintains reliable performance under standard ambient conditions.
The TMQD22200 delivers the reliability and precision required for commercial and industrial circuit protection applications.
