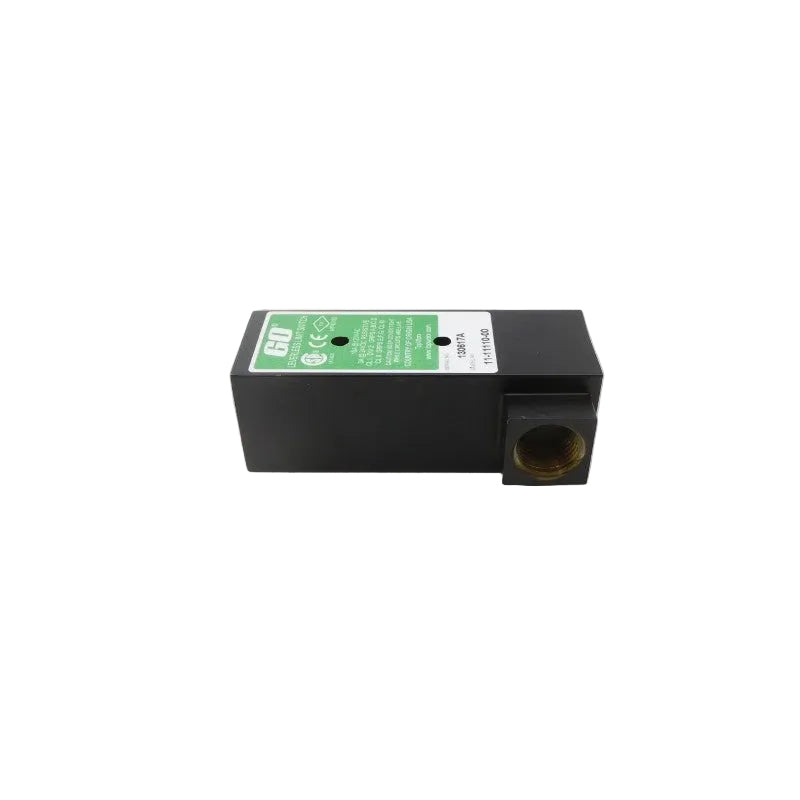

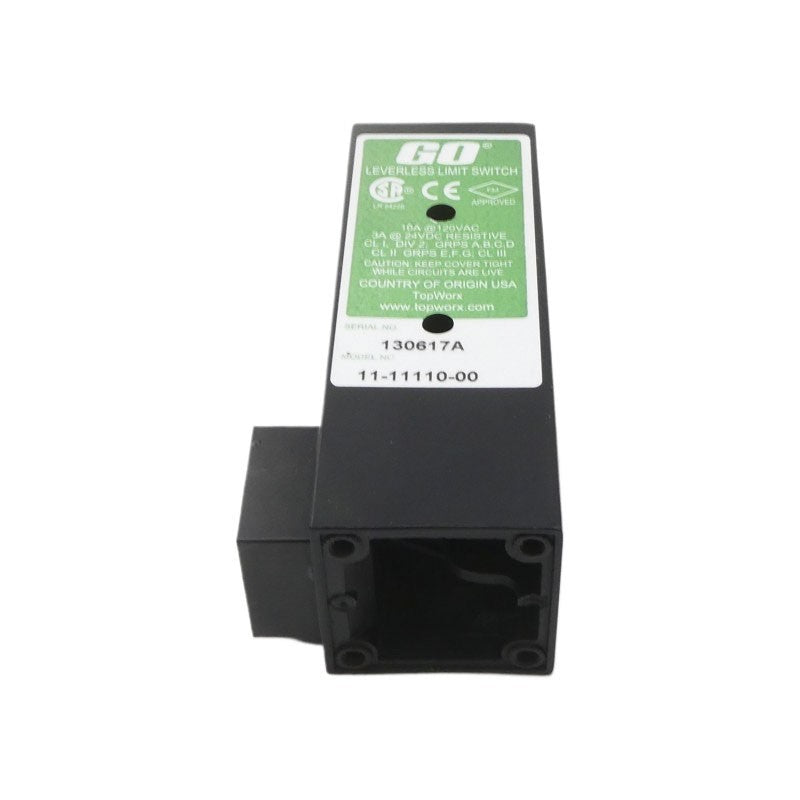

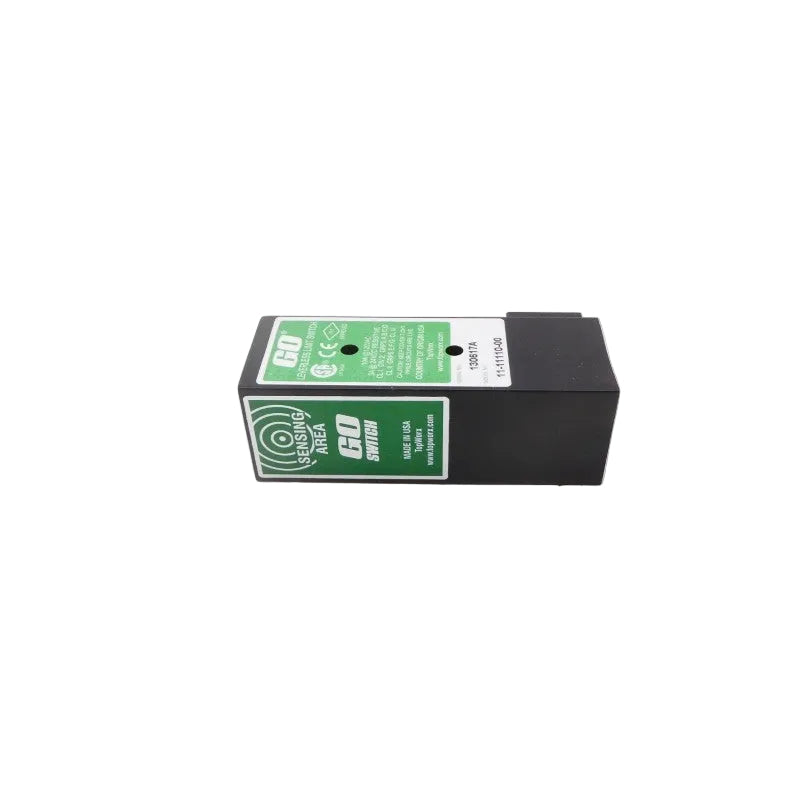

Topworx 11-11110-00 GO Switch Model 11 Leverless Limit Switch
- Regular price
- $429.00
- Sale price
- $429.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 11-11110-00
Description
The Topworx 11-11110-00 is a Model 11 leverless limit switch designed for non-contact position sensing of ferrous or magnetic targets. It features SPDT dry contacts rated up to 10 A at 120 VAC, a brass enclosure, and a 9.52 mm sensing range for industrial control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Topworx |
| Category | Sensors & Switches |
| Part Number | 11-11110-00 |
| Subcategory | Limit Switches |
| Type | GO Switch Model 11 |
| Design | Leverless |
| Target | Ferrous/Magnetic |
| Contacts | SPDT |
| Contact Type | Dry Contact |
| AC 120 V | 10 A |
| Range | 9.52 mm / 0.375 in |
| Action | Snap Action |
| Housing | Brass |
| Temperature | -40 to 105 °C |
| High Temp. | Up to 176 °C |
| Height | 3.1 in |
| Length | 7.2 in |
| Width | 3.1 in |
| Weight | 1.10 lbs |
Information About 11-11110-00
The 11-11110-00 is a GO Switch Model 11 proximity sensor with a leverless design and extended side sensing. Its sealed gold-flashed contacts use a snap-action seesaw armature to provide positive contact pressure during operation. The switch requires no operating power and can be wired for AC or DC circuits with normally open or normally closed configurations. The brass enclosure is intended for demanding applications involving moisture, vibration, corrosive environments, and hazardous locations.
Key Features:
- Switch Type: Model 11 leverless limit switch with non-contact sensing.
- Contact Form: SPDT dry contact configuration.
- AC Rating: 10 A at 120 VAC, 5 A at 240 VAC, and 2.5 A at 480 VAC.
- DC Rating: 3 A at 24 VDC, 1 A at 48 VDC, and 0.5 A at 120 VDC.
- Sensing Range: 9.52 mm (0.375 in) for ferrous targets.
- Housing: Rugged brass enclosure for demanding industrial environments.
- Operation: Snap-action seesaw armature with sealed gold-flashed contacts.
- Power: No operating power consumption, current leakage, or voltage drop.
- Hazardous Areas: Suitable for Zone 0, 1, and 2 and Division 1 and 2 applications.
The 11-11110-00 delivers the reliability and precision required for industrial position sensing and heavy-duty limit switch applications.
