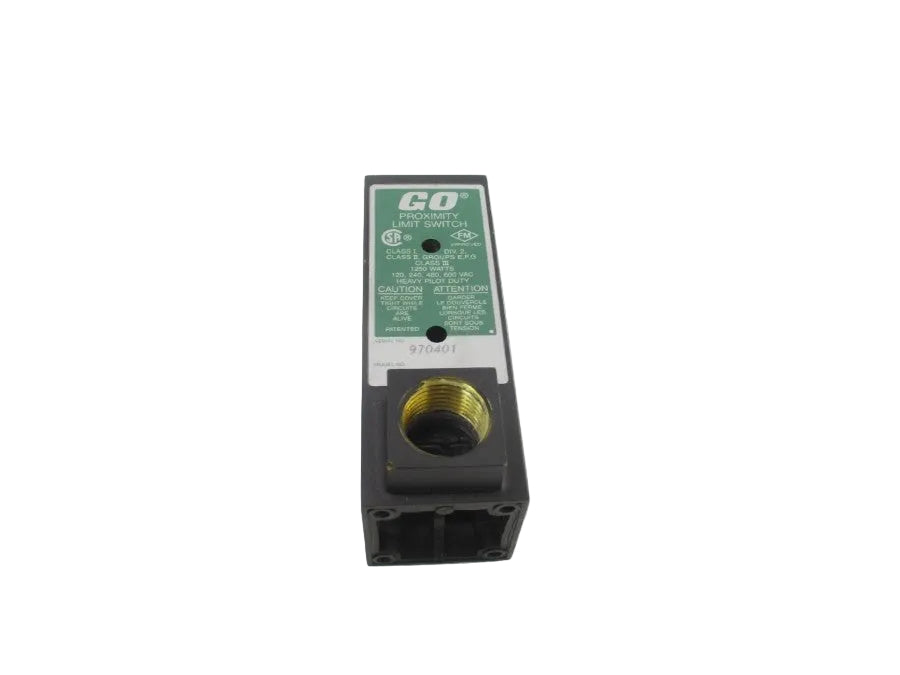

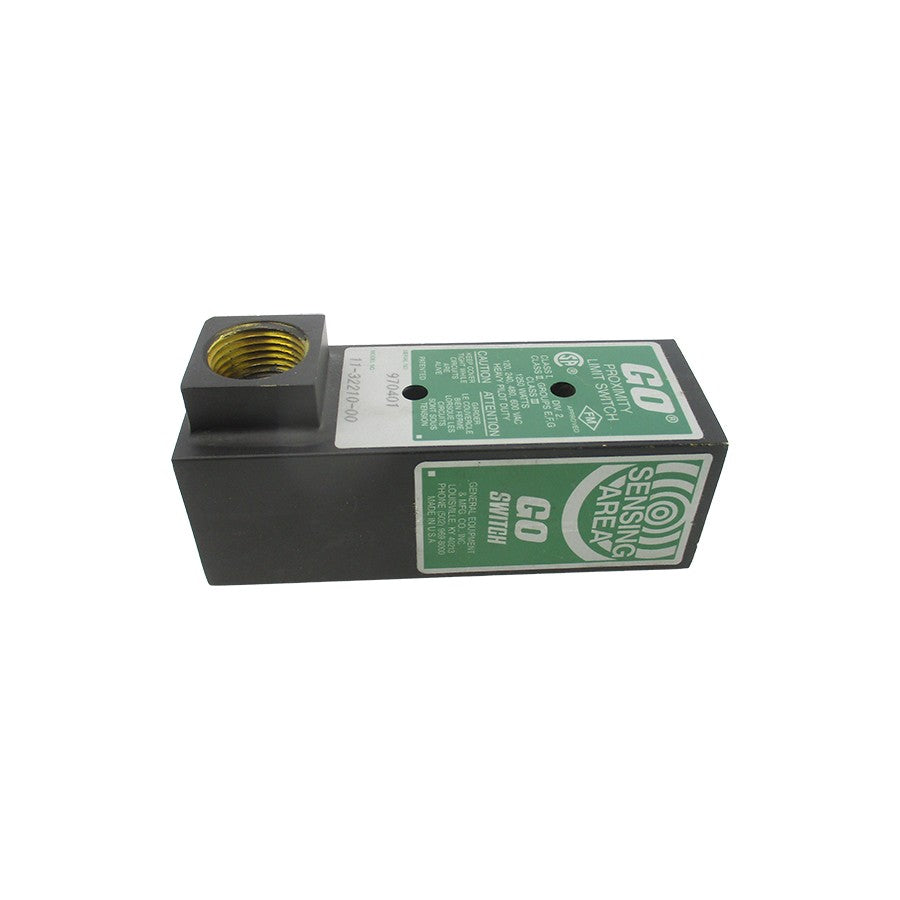

Topworx 11-32210-00 GO Switch Model 11 Leverless Proximity Limit Switch
- Regular price
- $417.00
- Sale price
- $417.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 11-32210-00
Description
The Topworx 11-32210-00 is a heavy-duty leverless GO Switch Model 11 proximity limit switch designed for reliable position sensing in demanding industrial environments. It uses SPDT dry contacts with ratings up to 10 A at 120 VAC and 3 A at 24 VDC, while its no-touch sensing eliminates mechanical lever actuation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Topworx |
| Category | Sensors & Switches |
| Part Number | 11-32210-00 |
| Subcategory | Limit Switches |
| Type | GO Switch Model 11 |
| Contacts | SPDT |
| Contact Type | Dry Contact |
| Action | Snap Action |
| AC Rating | 10 A / 120 VAC |
| DC Rating | 3 A / 24 VDC |
| Sensing Range | 14.28 mm extended |
| Temperature | -40 to 105 °C |
| High Temp. | Up to 176 °C |
| Housing | Brass or Stainless Steel |
| Mounting | Square, 38 × 116 mm |
| Weight | 1.19 lbs |
Information About 11-32210-00
The 11-32210-00 is a Model 11 GO Switch featuring a sealed contact system and snap-action seesaw armature. Its leverless design provides extended side sensing with a sensing range of up to 14.28 mm. The switch operates without external power and can be wired for either AC or DC circuits with normally open or normally closed configurations. The rugged enclosure is designed for applications involving moisture, vibration, corrosive conditions, and hazardous locations.
Key Features:
- Switch Type: Leverless dry-contact proximity limit switch.
- Contact Form: SPDT latching contact configuration with sealed gold-flashed contacts.
- Current Rating: 10 A at 120 VAC and 3 A at 24 VDC.
- Sensing: No-touch magnetic sensing with extended side sensing up to 14.28 mm.
- Operation: Snap-action seesaw armature helps maintain contact pressure in high-vibration applications.
- Power: Passive operation requiring no power for sensing.
- Temperature: Standard operating range from -40 to 105 °C, with high-temperature versions available to 176 °C.
- Environment: Designed for wet, corrosive, high-vibration, and hazardous industrial environments.
The 11-32210-00 delivers the reliability and precision required for industrial position sensing and heavy-duty limit switch applications.
