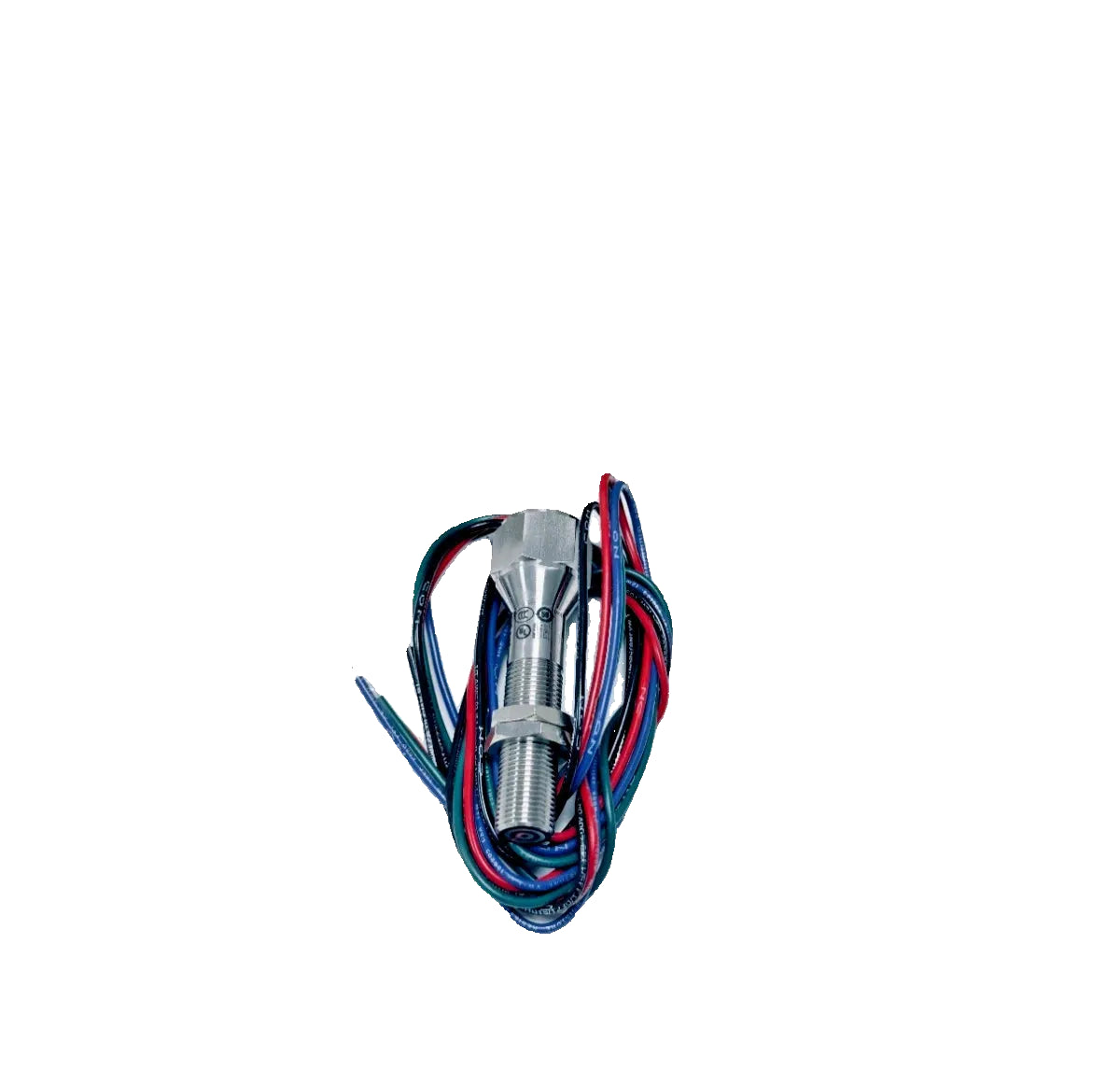

TopWorx 73-13564-A2 GO Switch Model 73 SPDT Proximity Limit Switch
- Regular price
- $755.00
- Sale price
- $755.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 73-13564-A2
Description
TopWorx 73-13564-A2 is a GO™ Switch Model 73 leverless proximity limit switch designed for precise position sensing in industrial equipment. It uses an SPDT dry contact, a 316L stainless-steel enclosure, and a 2.5 mm (0.100 in) ferrous sensing range for reliable detection without external moving parts.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | TopWorx |
| Category | Industrial Automation |
| Part Number | 73-13564-A2 |
| Subcategory | Proximity / Limit Switches |
| Product Type | GO™ Switch Model 73 |
| Contact Form | SPDT |
| Sensing Type | Precision End Sensing |
| Sensing Range | 2.5 mm / 0.100 in |
| Enclosure Material | 316L Stainless Steel |
| Mounting Thread | 5/8-18 |
| Wiring | 3 ft, 18 AWG PVC-insulated leads |
| Electrical Rating | 4 A @ 120 VAC; 2 A @ 240 VAC; 3 A @ 24 VDC; 1.25 A @ 48 VDC |
| Area Classification | cULus Class I Div. 1, Groups A-D; Class II Div. 1, Groups E-G; Class III |
| Operating Temperature | -50°C to +105°C (-58°F to +221°F) |
| Outlet Position | Bottom |
| Weight | 1 lb |
Information About 73-13564-A2
The 73-13564-A2 is a TopWorx GO™ Switch Model 73 precision sensing switch with an SPDT contact configuration. It features a 316L stainless-steel housing, bottom outlet, 5/8-18 mounting thread, and 3 ft PVC-insulated lead wires. The switch provides a 2.5 mm (0.1 in) sensing range for ferrous targets and is rated for hazardous-location applications including Class I, Division 1. Its electrical ratings include 4 A at 120 VAC, 2 A at 240 VAC, 3 A at 24 VDC, and 1.25 A at 48 VDC.
Key Features:
- GO™ Switch Model 73: Leverless proximity switch designed for industrial position-sensing applications.
- SPDT Contact: Provides a single-pole double-throw dry-contact configuration for flexible control circuits.
- 316L Stainless Steel: Uses a corrosion-resistant stainless-steel enclosure for demanding environments.
- Precision End Sensing: Detects ferrous targets at approximately 2.5 mm (0.100 in).
- Hazardous Location Rating: Configured for cULus Class I Division 1 and related hazardous-location applications.
- Wide Electrical Rating: Supports switching loads up to 4 A at 120 VAC and 3 A at 24 VDC.
- Bottom Outlet: Electrical outlet is positioned at the bottom of the enclosure.
- PVC Lead Wires: Supplied with 3 ft of 18 AWG PVC-insulated lead wiring.
The 73-13564-A2 delivers the reliability and precision required for industrial position detection, limit sensing, and equipment monitoring applications.
