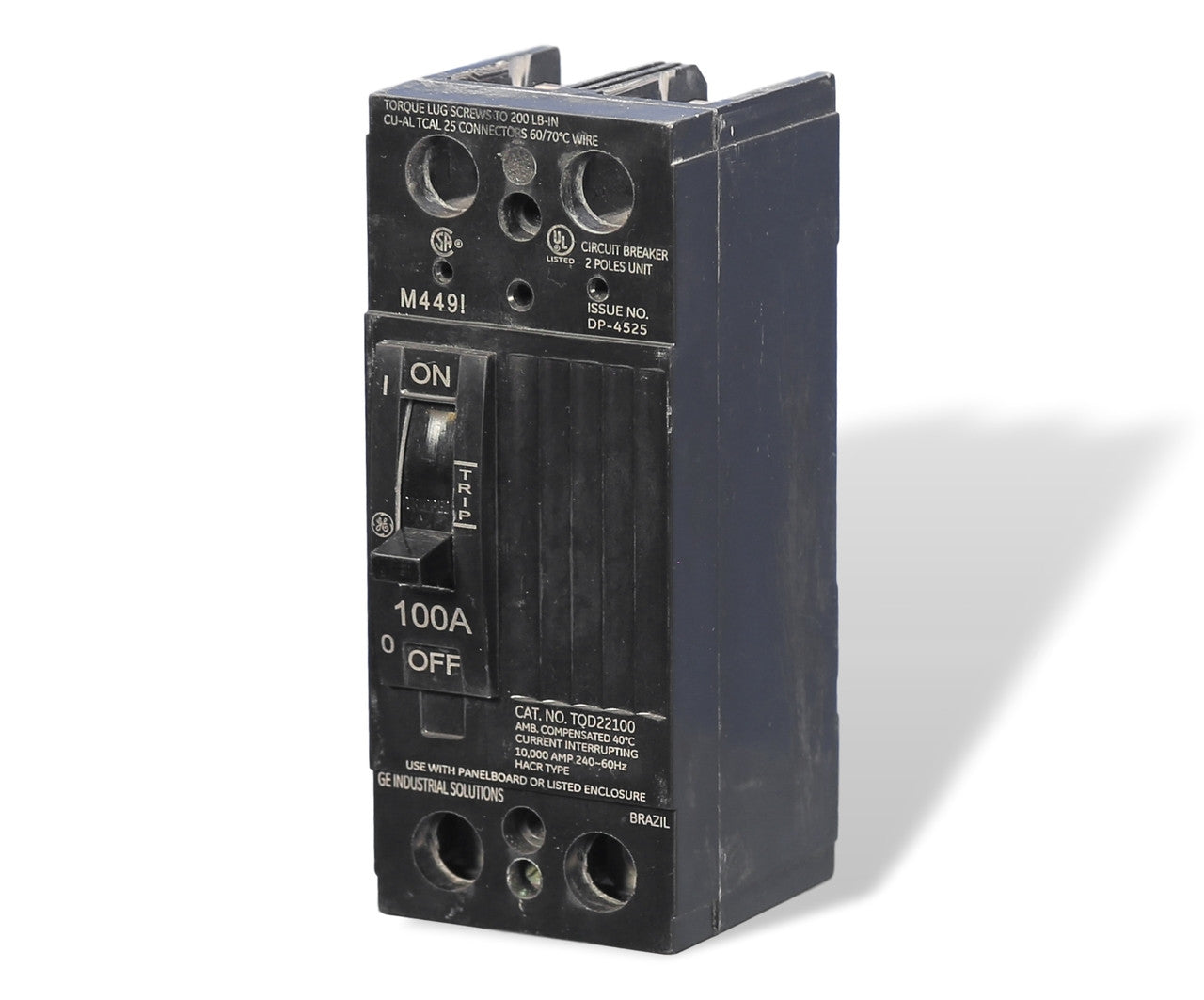

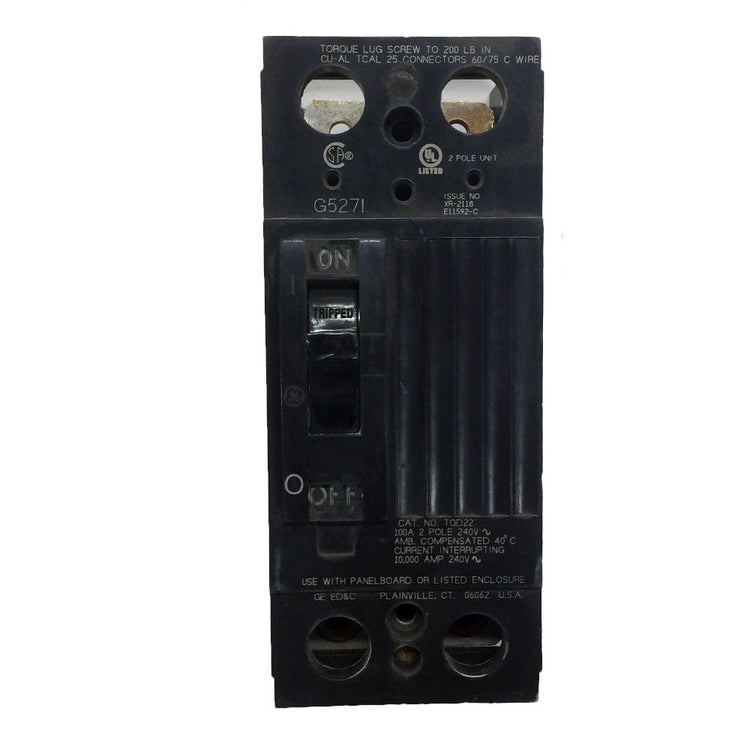

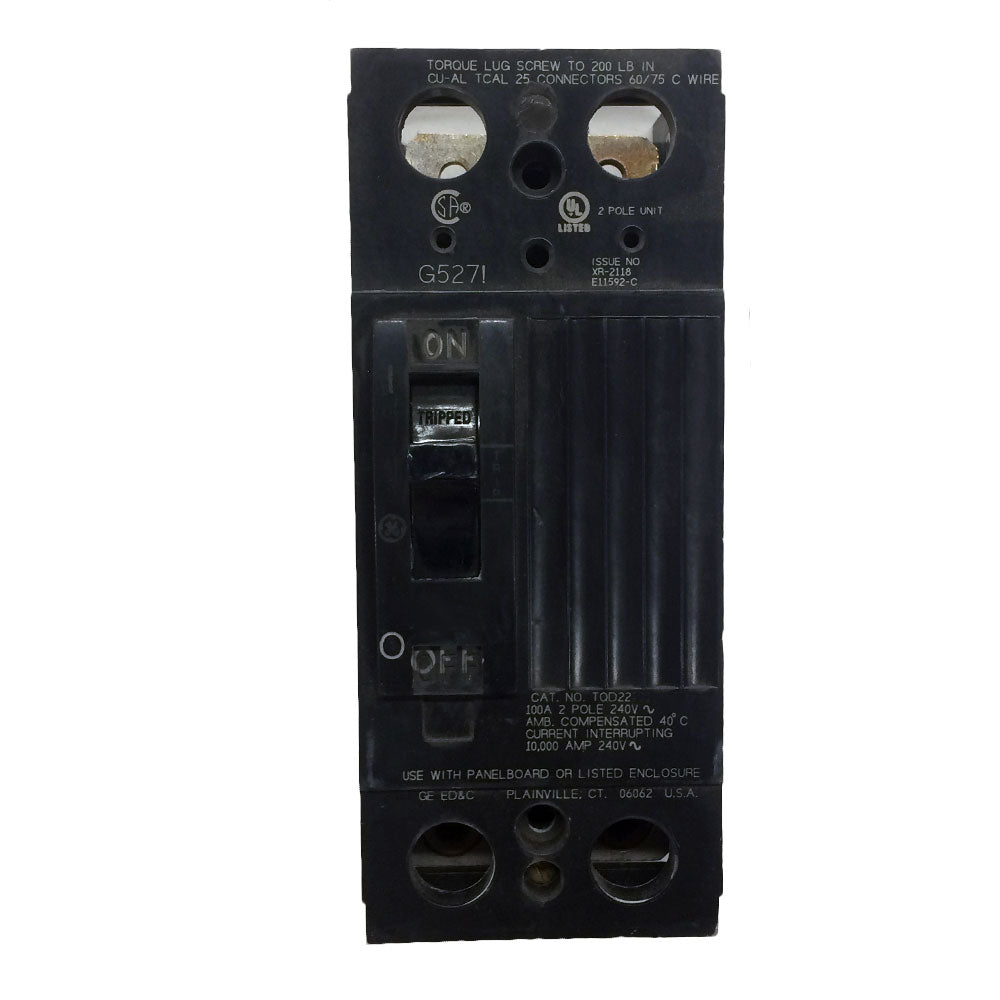

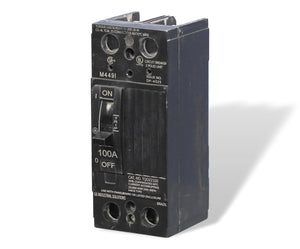

TQD22100WL | General Electric 100A 2-Pole 120/240V Thermal Magnetic Molded Case Circuit Breaker
- Regular price
- $858.00
- Sale price
- $858.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: TQD22100WL
Description
The General Electric TQD22100WL is a 2-pole molded case circuit breaker designed for dependable overcurrent and short-circuit protection in residential, commercial, and light industrial installations. With a current rating of 100 amps and a voltage rating of 120/240 VAC, this breaker ensures safe circuit performance in both main and branch applications. Its feed-thru connection and thermal magnetic trip mechanism provide reliable, long-term operation in demanding electrical systems.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breakers |
| Part Number | TQD22100WL |
| Subcategory | Molded Case Circuit Breakers |
| Series | Q-Line TQD |
| Type | Thermal Magnetic |
| Poles | 2 |
| Phase | 1 |
| Current Rating | 100 Amp |
| Voltage Rating | 120/240 VAC |
| Interrupting Rating | 10 kAIC @ 240V |
| Trip Functions | Long-Time and Instantaneous |
| Connection Type | Feed-Thru |
| Terminal Connection | Line & Load Side Lug |
| Protection Type | Overload and Short Circuit |
| Mounting Style | Bolt-On / Feed-Thru |
| Approvals | UL, CSA |
| Temperature Rating | 40 °C |
| Dimensions (H x W x D) | 6.56" x 2.75" x 2.67" |
| For Use With | Lighting Panels, Modular Metering |
| Wire Range | 4 AWG to 300 MCM |
| Weight | 2.85 lbs (1.29 kg) |
Information About TQD22100WL
The TQD22100WL is part of General Electric’s Q-Line TQD Series, engineered for high performance and durability across multiple electrical applications. It features a thermal magnetic protection system that combines long-time and instantaneous trip functions for efficient fault interruption. Designed with a feed-thru connection, it supports quick integration into GE panelboards, including AQ Series panels. Built to meet UL and CSA standards, the TQD22100WL is ideal for use in lighting panels, modular metering systems, and branch circuit protection.
Key Features:
- Thermal Magnetic Trip System: Protects against both overload and short-circuit conditions.
- 2-Pole Configuration: Provides full circuit protection for single-phase applications.
- Feed-Thru Connection: Enables easy installation and secure wiring termination.
- High Interrupting Rating: Rated 10 kAIC at 240V for enhanced electrical safety.
- Non-Interchangeable Trip Unit: Ensures consistent and factory-calibrated performance.
- Compact Dimensions: Saves space in tight panel installations with a slim 2.75" width.
- Rugged Molded Case Design: Built for long-lasting operation in harsh environments.
- UL and CSA Certified: Tested and approved for safety and reliability compliance.
The TQD22100WL delivers the reliability and precision required for effective circuit protection in residential, commercial, and industrial power systems.
