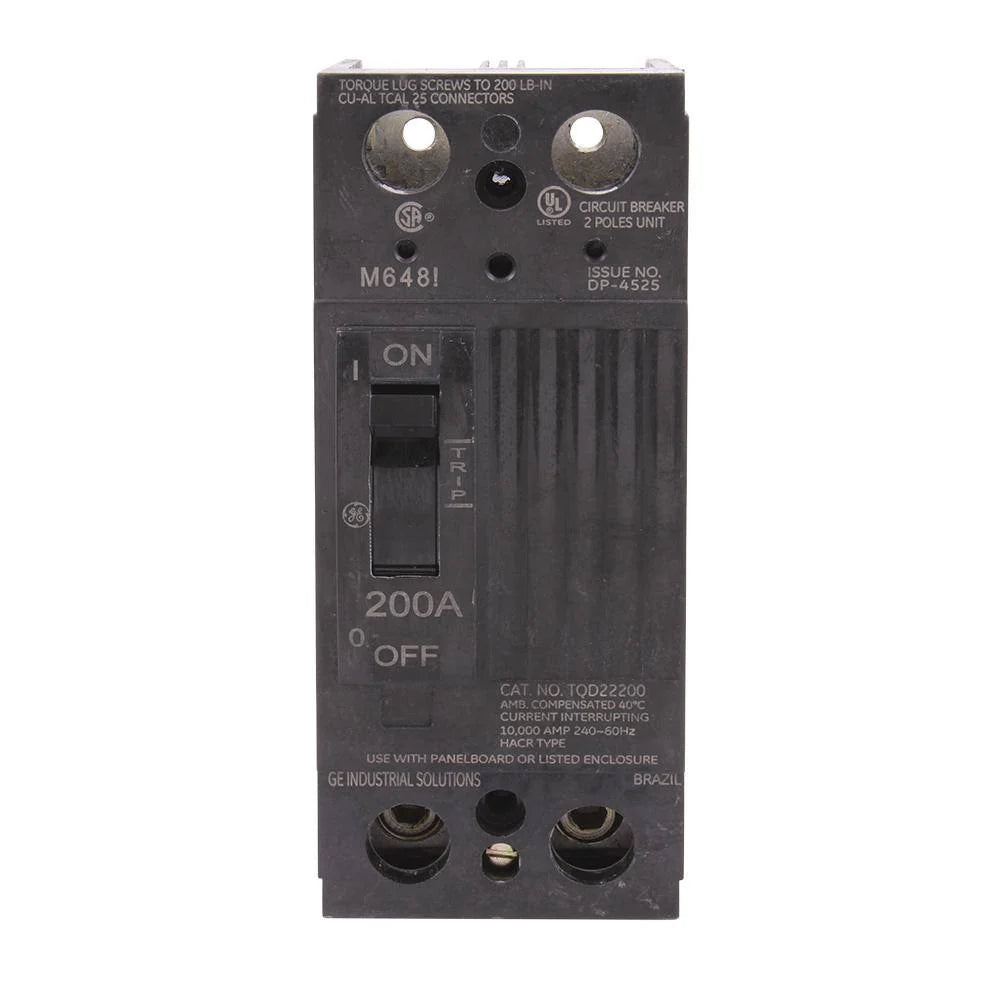

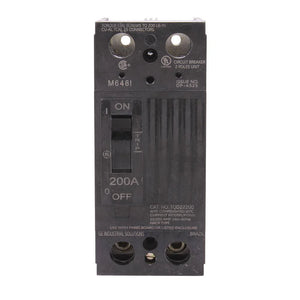

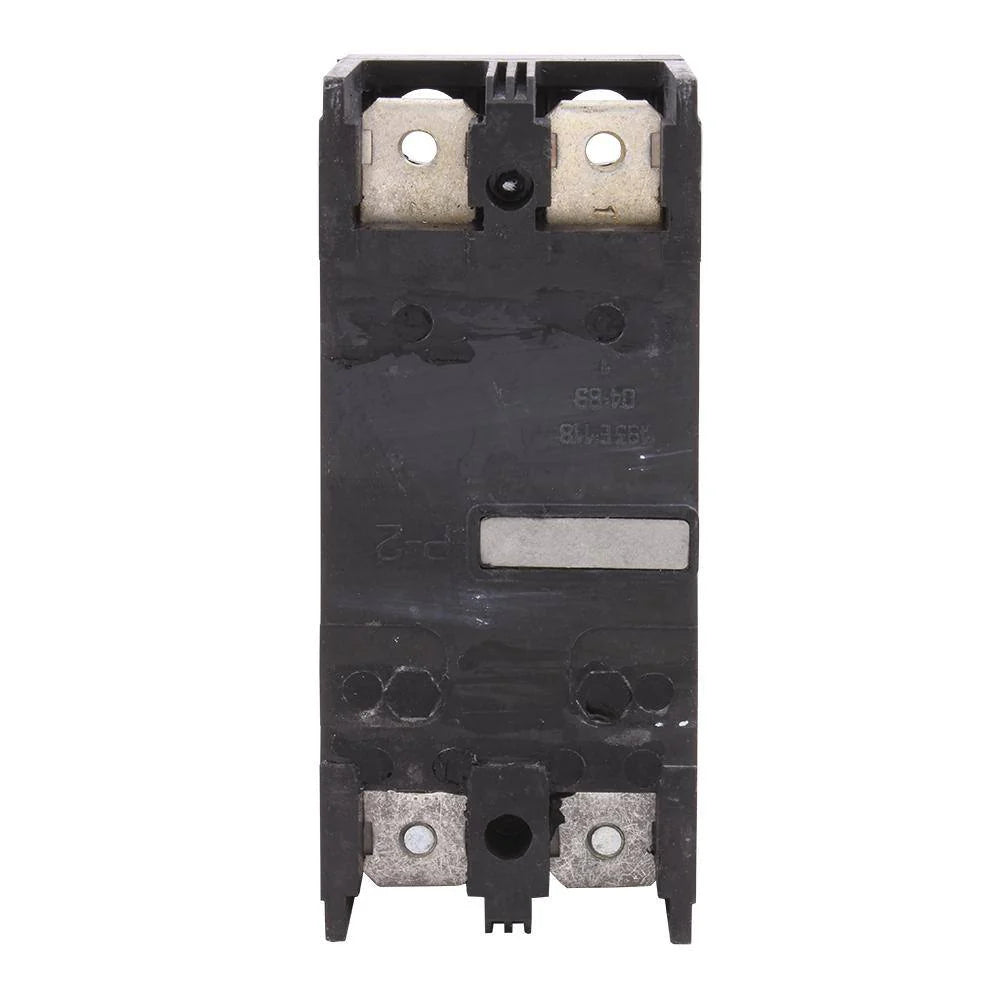

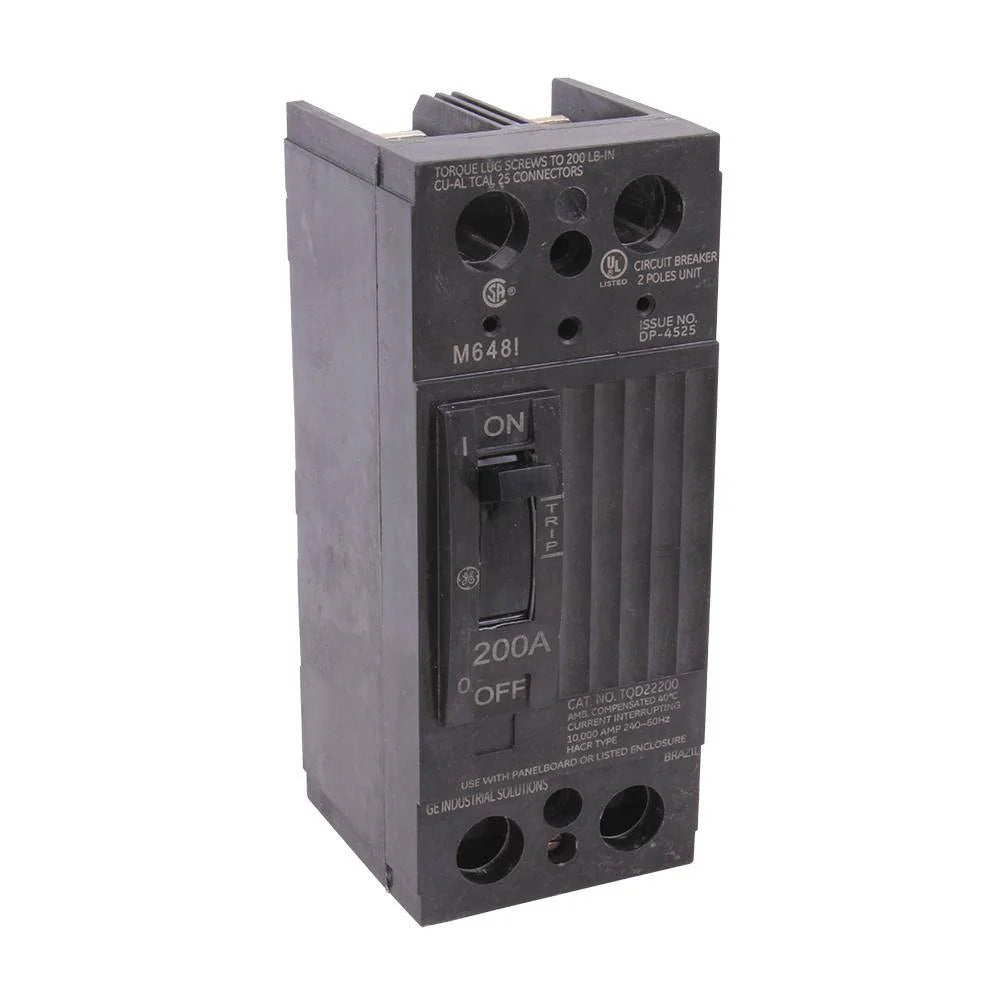

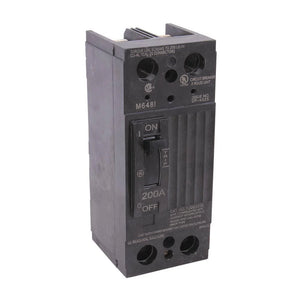

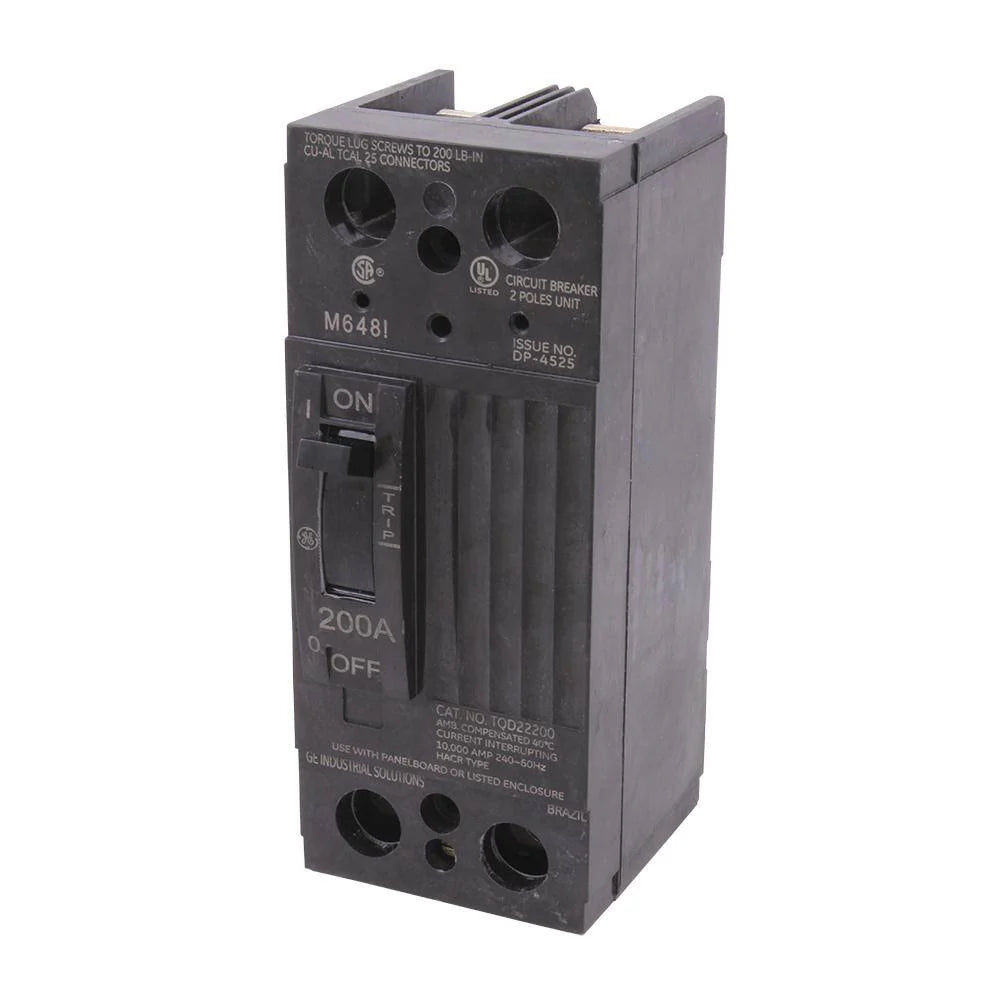

TQD22200 | GE Q-Line TQD 2-Pole 200A Molded Case Circuit Breaker
- Regular price
- $684.00
- Sale price
- $684.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TQD22200
Description
The GE TQD22200 is a double-pole molded case circuit breaker from the Q-Line Type TQD series, designed for single-phase electrical systems. Rated at 200 amps and 240 VAC, it features a thermal-magnetic, non-interchangeable trip unit with a 10 kA interrupting rating. This breaker includes line and load side lugs and is intended for feed-thru applications in commercial and industrial installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric (GE) |
| Category | Circuit Breaker |
| Part Number | TQD22200 |
| Subcategory | Molded Case Circuit Breaker |
| Series / Family | Q-Line |
| Frame / Type | TQD |
| Number of Poles | 2P |
| Phase | 1 Phase |
| Amperage Rating | 200 A |
| Voltage Rating | 240 V AC |
| Interrupt Rating | 10 kA @ 240 V |
| Trip Function | LI (Long-Time, Instantaneous) |
| Trip Type | Thermal Magnetic |
| Trip Unit | Non-Interchangeable |
| Connection Type | Feed-Thru |
| Terminals | Line and Load Lugs |
| Operating Temperature | Up to 40 °C |
Information About TQD22200
The TQD22200 is part of General Electric’s Q-Line Type TQD family of molded case circuit breakers, engineered to provide dependable overcurrent protection for distribution systems. The TQD series combines thermal overload protection with instantaneous magnetic response to short-circuit conditions. Designed to operate at ambient temperatures up to 40°C, this breaker integrates easily into panels using its feed-thru construction and lug terminations. Typical usage includes feeders, mains, and branch circuits requiring consistent and reliable protection at higher current ratings.
Key Features:
- Q-Line Type TQD construction: Designed for commercial and industrial distribution systems.
- Thermal-magnetic trip unit: Provides long-time and instantaneous protection.
- 2-pole configuration: Suitable for single-phase circuits.
- 200A current rating: Supports high-current feeder and branch applications.
- 10 kA interrupting rating at 240V: Handles standard fault levels safely.
- Feed-thru design: Allows flexible panelboard installation.
- Line and load lugs included: Simplifies electrical connections.
The TQD22200 delivers the reliability and precision required for single-phase commercial and industrial power distribution applications.
