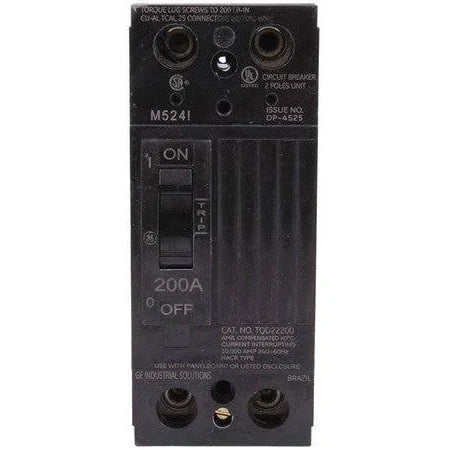

TQD22200WL | General Electric Molded Case Circuit Breaker, Q-Line TQD Type, 200A, 2-Pole, 240V, Feed-Thru
- Regular price
- $729.00
- Sale price
- $729.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: TQD22200WL
Description
The General Electric TQD22200WL is a molded case circuit breaker from the Q-Line series designed for dependable overcurrent protection in single-phase applications. Rated at 200A and 240V, it uses a thermal magnetic trip unit with standard interrupting capacity of 10kA at 240V. Equipped with line and load side lugs, it supports secure termination in distribution systems requiring stable, high-capacity protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | General Electric |
| Category | Circuit Breaker |
| Part Number | TQD22200WL |
| Subcategory | Molded Case Circuit Breaker |
| Manufacturer | General Electric |
| Type | TQD |
| Number of Poles | 2 |
| Amperage Rating | 200 A |
| Voltage Rating | 240 V |
| Interrupting Capacity | 10 kA @ 240 V |
| Trip Unit | Non-Interchangeable |
| Protection Technology | Thermal Magnetic |
| Mounting / Application | Feed-Thru |
| Terminals | Line & Load Side Lugs |
| Temperature Rating | 40°C |
| Frame / Series | Q-Line Series |
Information About TQD22200WL
The TQD22200WL belongs to the General Electric Q-Line family and is designated as a Type TQD molded case breaker. Built with a two-pole configuration, it provides 200A protection for single-phase circuits operating at 240V. The breaker includes a non-interchangeable trip unit and both line and load side lugs, allowing straightforward integration into feed-thru distribution layouts. Utilizing thermal magnetic technology within a molded case design, it delivers consistent circuit interruption and operates effectively at a 40°C temperature rating.
Key Features
- Q-Line TQD series: Engineered within GE’s molded case breaker family for reliable distribution protection.
- 200A, 2-pole rating: Supports higher-load single-phase circuits requiring robust overcurrent coverage.
- 240V operation: Suitable for a wide range of residential, commercial, and light industrial systems.
- Thermal magnetic protection: Provides dependable overload and short-circuit trip response.
- Non-interchangeable trip unit: Ensures stable, calibrated interruption characteristics.
- Line & load side lugs: Allows secure conductor termination for feed-thru installation.
- 10kA interrupting capacity: Delivers standard fault-clearing performance at 240V.
- Feed-thru design: Enables continuous conductor routing while maintaining circuit protection.
The TQD22200WL delivers the reliability and precision required for safe and consistent overcurrent protection in demanding electrical distribution environments.
