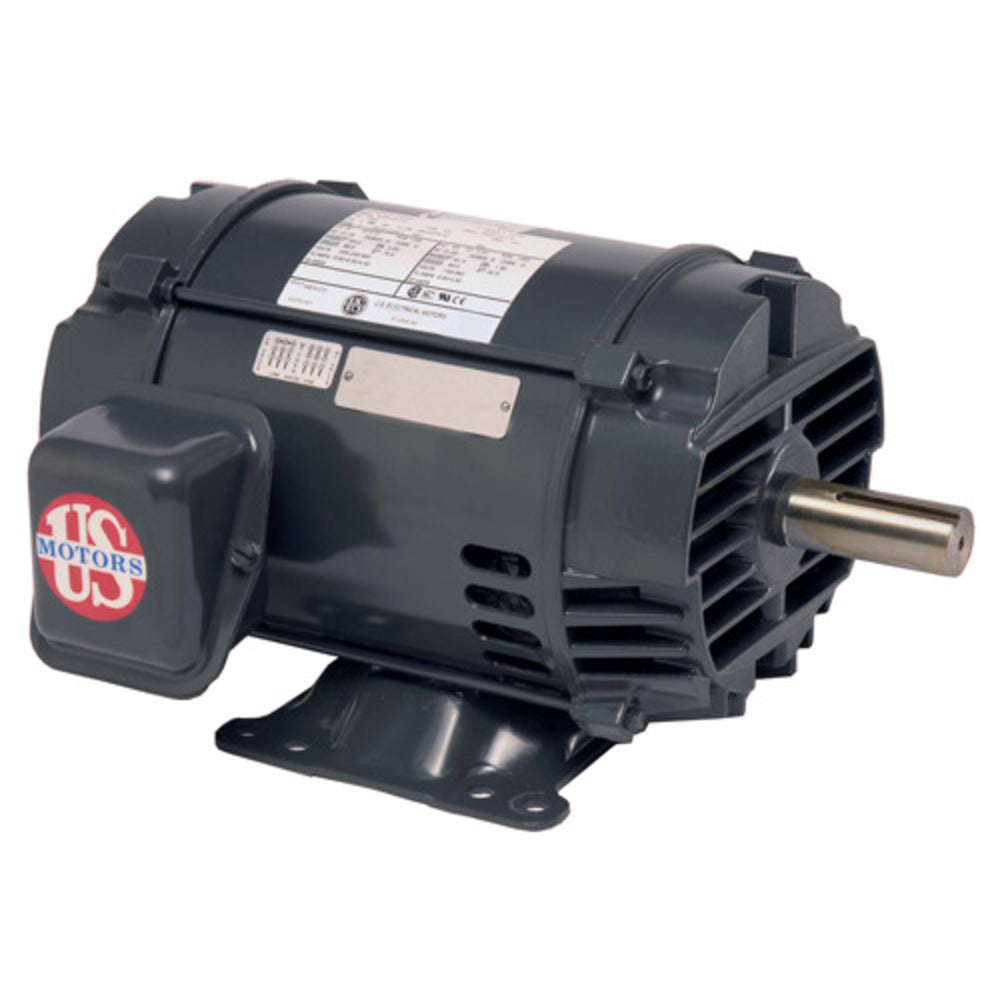

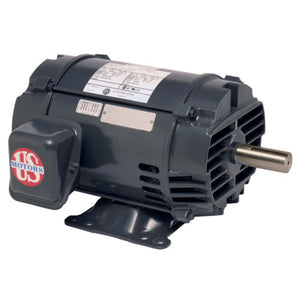

Trane 5K49VN4673X 3 HP 1725 RPM 208-230/460V General Purpose Motor
- Regular price
- $2,569.00
- Sale price
- $2,569.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 5K49VN4673X
Description
Trane 5K49VN4673X is a 3 HP general-purpose motor designed for three-phase industrial and HVAC applications. It operates at 208–230/460 VAC and 1725 RPM with a 56HZ frame and ODP enclosure.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | Motors |
| Part Number | 5K49VN4673X |
| Subcategory | General Purpose Motors |
| Horsepower | 3 HP |
| Voltage | 208–230/460 VAC |
| Phase | Three Phase |
| Frequency | 60 Hz |
| Speed | 1725 RPM |
| Enclosure | ODP |
| Shaft Diameter | 0.875 in |
| Shaft Type | Single |
| Motor Diameter | 6.5 in |
| Amperage | 9.7–9.4/4.6 A |
| Weight | 45 lb |
Information About 5K49VN4673X
The 5K49VN4673X is a three-phase, single-speed general-purpose motor with a 3 HP rating. It operates at 60 Hz and supports 208–230/460 VAC electrical configurations. The motor features a 56HZ frame, 0.875-inch single shaft, and open drip-proof (ODP) enclosure. Available specifications also identify a 1.15 service factor and thermally protected operation for general-purpose motor applications.
Key Features:
- General-Purpose Motor: Designed for general industrial and equipment drive applications.
- 3 HP Rating: Provides 3 horsepower for compatible motor-driven equipment.
- Three-Phase Operation: Designed for three-phase electrical systems.
- Dual-Voltage Configuration: Supports 208–230/460 VAC operation.
- 1725 RPM Speed: Provides the rated operating speed for compatible applications.
- 56HZ Frame: Uses a 56HZ motor frame configuration.
- ODP Enclosure: Open drip-proof construction for suitable indoor applications.
- Single Shaft: Features a 0.875-inch single shaft configuration.
The 5K49VN4673X delivers three-phase general-purpose motor performance for equipment requiring 3 HP, flexible voltage operation, and a 56HZ frame.
