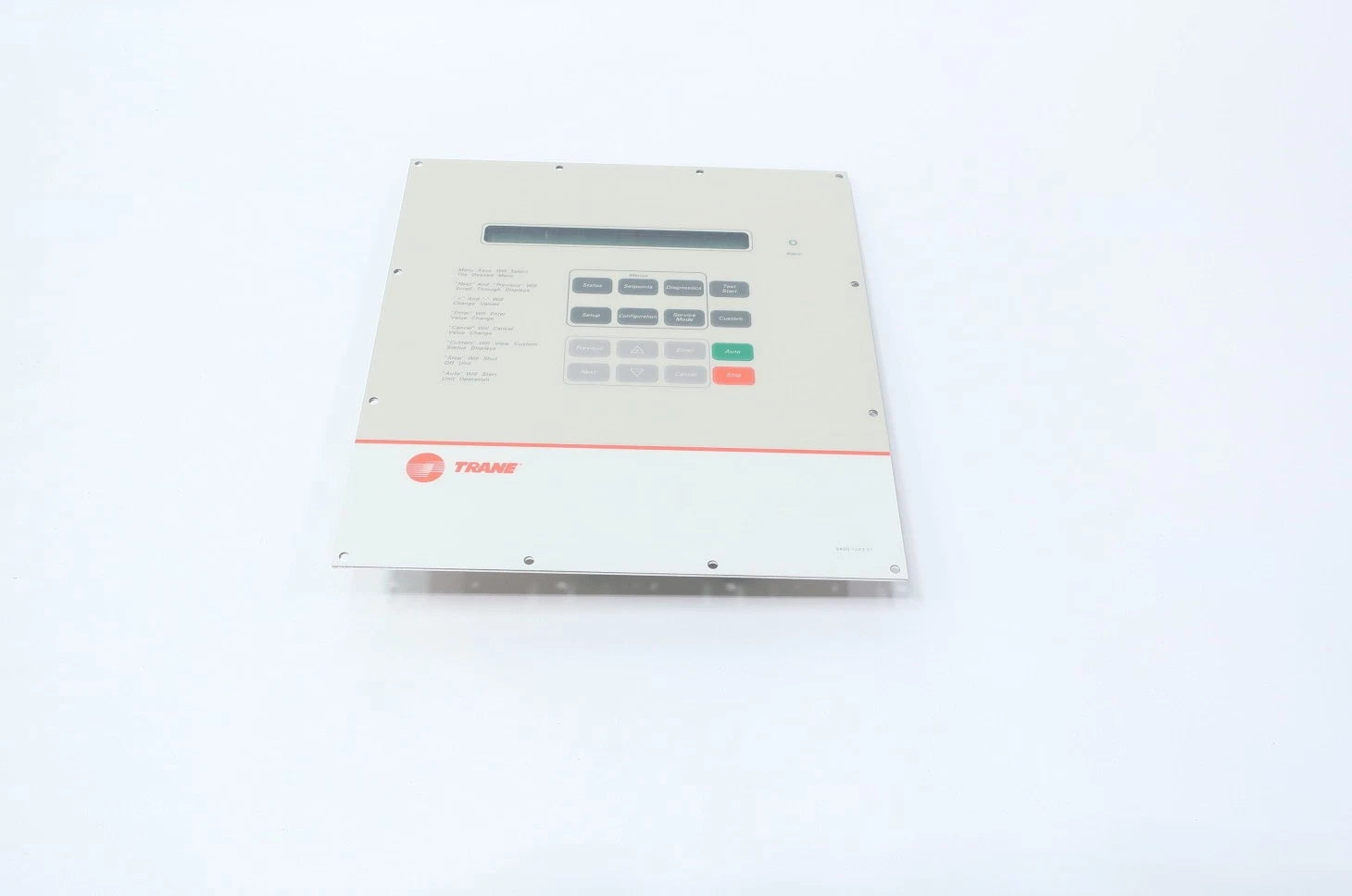

Trane 6400-1023-01 Operator Panel Control Board Assembly for Commercial HVAC Control Systems
- Regular price
- $599.00
- Sale price
- $599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6400-1023-01
Description
The Trane 6400-1023-01 is an operator panel control board assembly designed to provide local monitoring, navigation, and system interaction for compatible Trane HVAC control equipment. This OEM interface module enables technicians and operators to access operating parameters, view system status, and perform equipment configuration through an integrated keypad interface. It is used in commercial HVAC applications where dependable local equipment control and diagnostics are required.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | HMI / MMI / OIT |
| Part Number | 6400-1023-01 |
| Subcategory | Keypad/Keyboard |
| Manufacturer | Trane |
| Manufacturer Part Number | 6400102301 |
| Product Type | Operator Panel Control Board Assembly |
| Status | Discontinued by Manufacturer |
| Function | Local Operator Interface and Equipment Control |
| Interface Type | Keypad Operator Panel |
| Application | Commercial HVAC Control Systems |
| Compatible Equipment | Trane HVAC Control Platforms |
| Installation | OEM Replacement Assembly |
| Typical Use | Equipment Configuration, Monitoring, Diagnostics, and Service |
| Weight | 1.02 kgs |
Information About 6400-1023-01
The 6400-1023-01 is a discontinued Trane operator panel control board assembly developed for use in compatible Trane commercial HVAC control systems. The assembly functions as a local human-machine interface (HMI), providing keypad-based navigation for equipment configuration, operating status, alarm indication, and service diagnostics. It integrates directly with the unit control architecture to support routine commissioning, maintenance, and operational adjustments without requiring an external programming device. Designed as an OEM replacement component, the control board maintains compatibility with the original Trane control platform while supporting dependable long-term system operation.
Key Features:
- OEM Trane Operator Panel: Genuine replacement control board assembly for compatible Trane equipment.
- Local Equipment Interface: Provides direct access to operating parameters and controller functions.
- Keypad Navigation: Enables efficient menu navigation and local configuration of HVAC equipment.
- Integrated Diagnostics: Supports service personnel during troubleshooting and maintenance procedures.
- Control Board Assembly: Combines operator interface electronics into a single replacement module.
- Commercial HVAC Compatibility: Designed for use in Trane commercial heating and air conditioning systems.
- Direct OEM Replacement: Installs as a replacement for the original factory-installed operator panel.
- Service-Friendly Design: Simplifies equipment monitoring and configuration during commissioning and repair.
The 6400-1023-01 delivers the reliability and precision required for local operator control and diagnostics in commercial HVAC automation systems.
