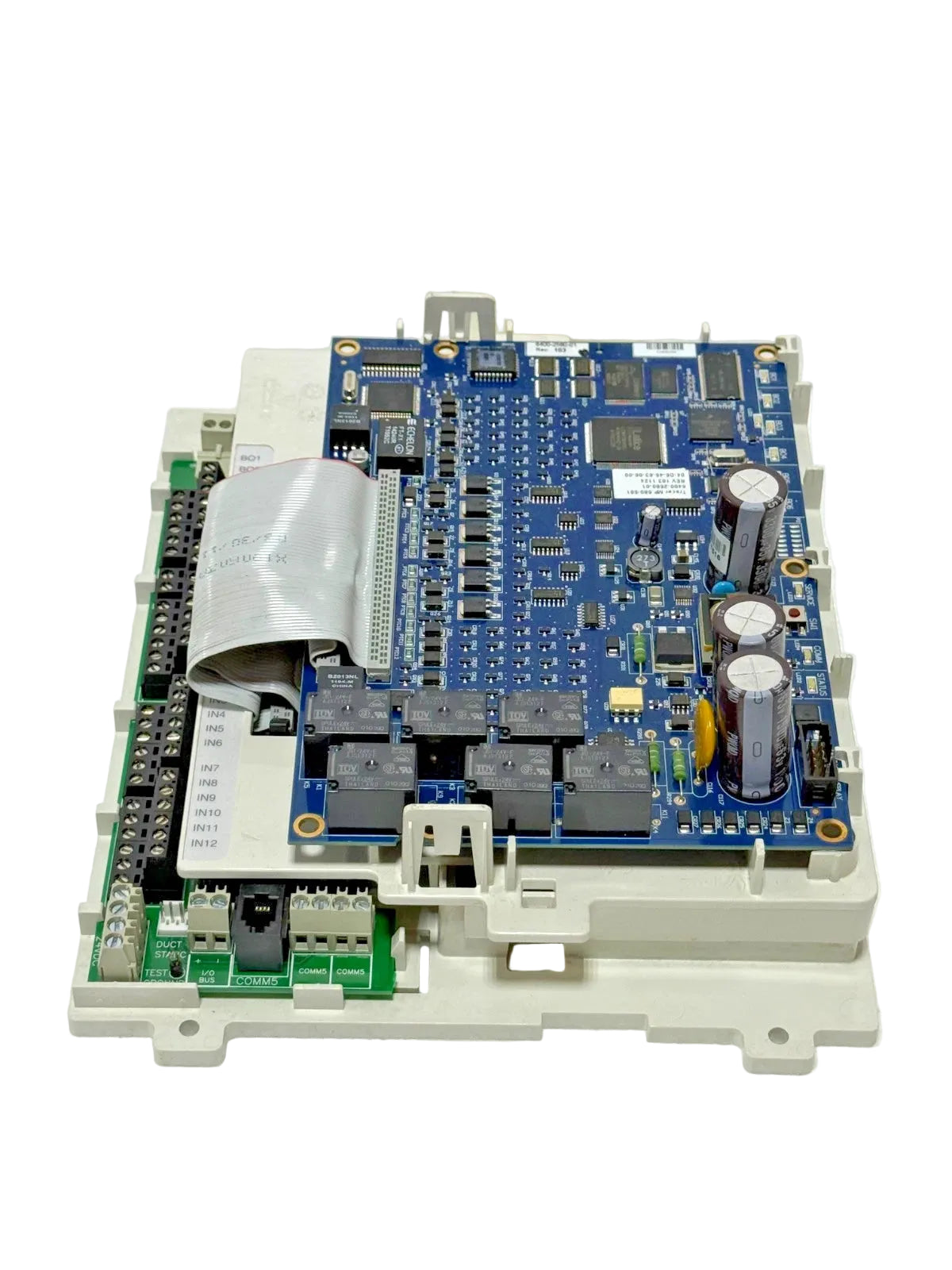

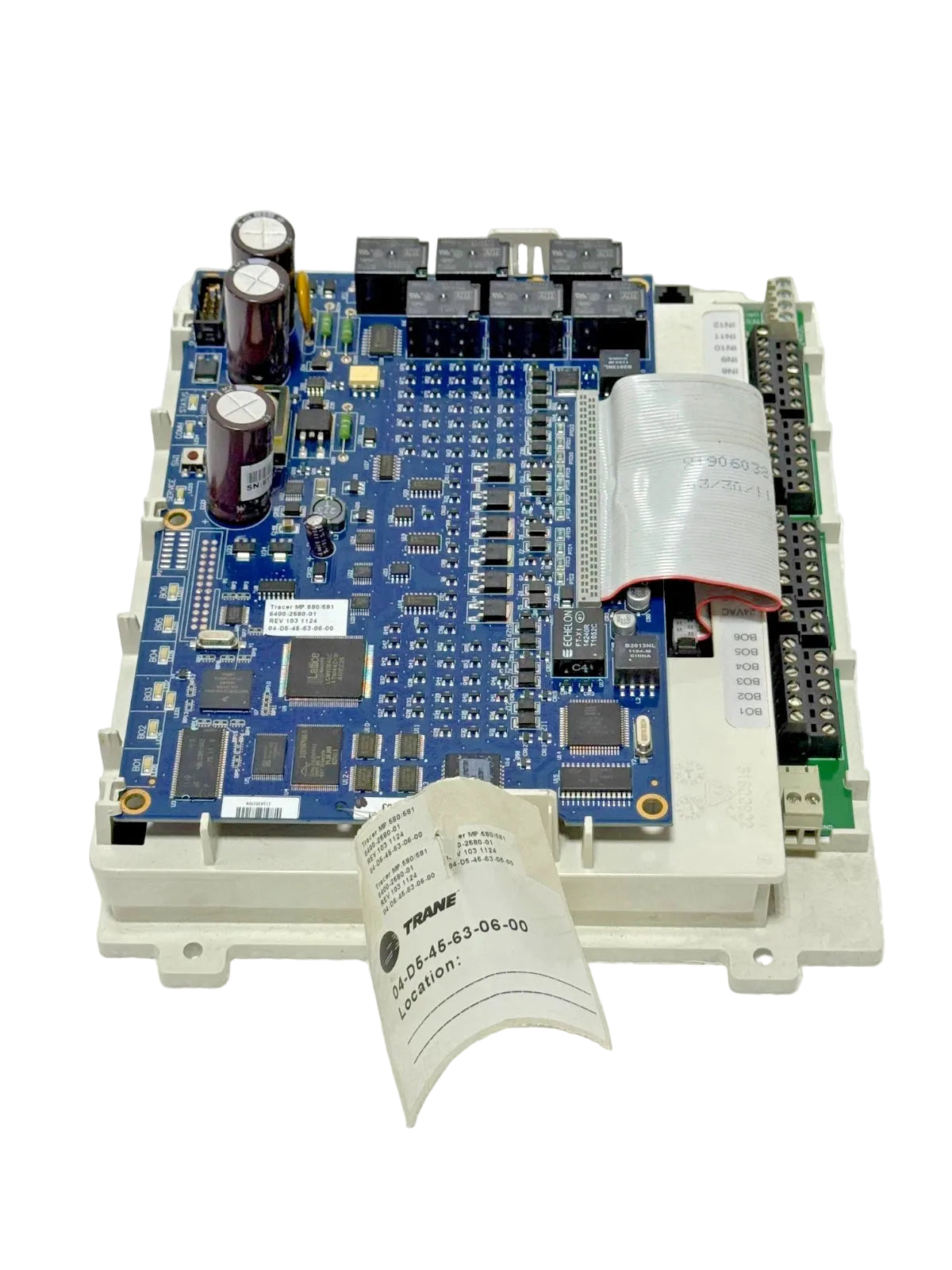

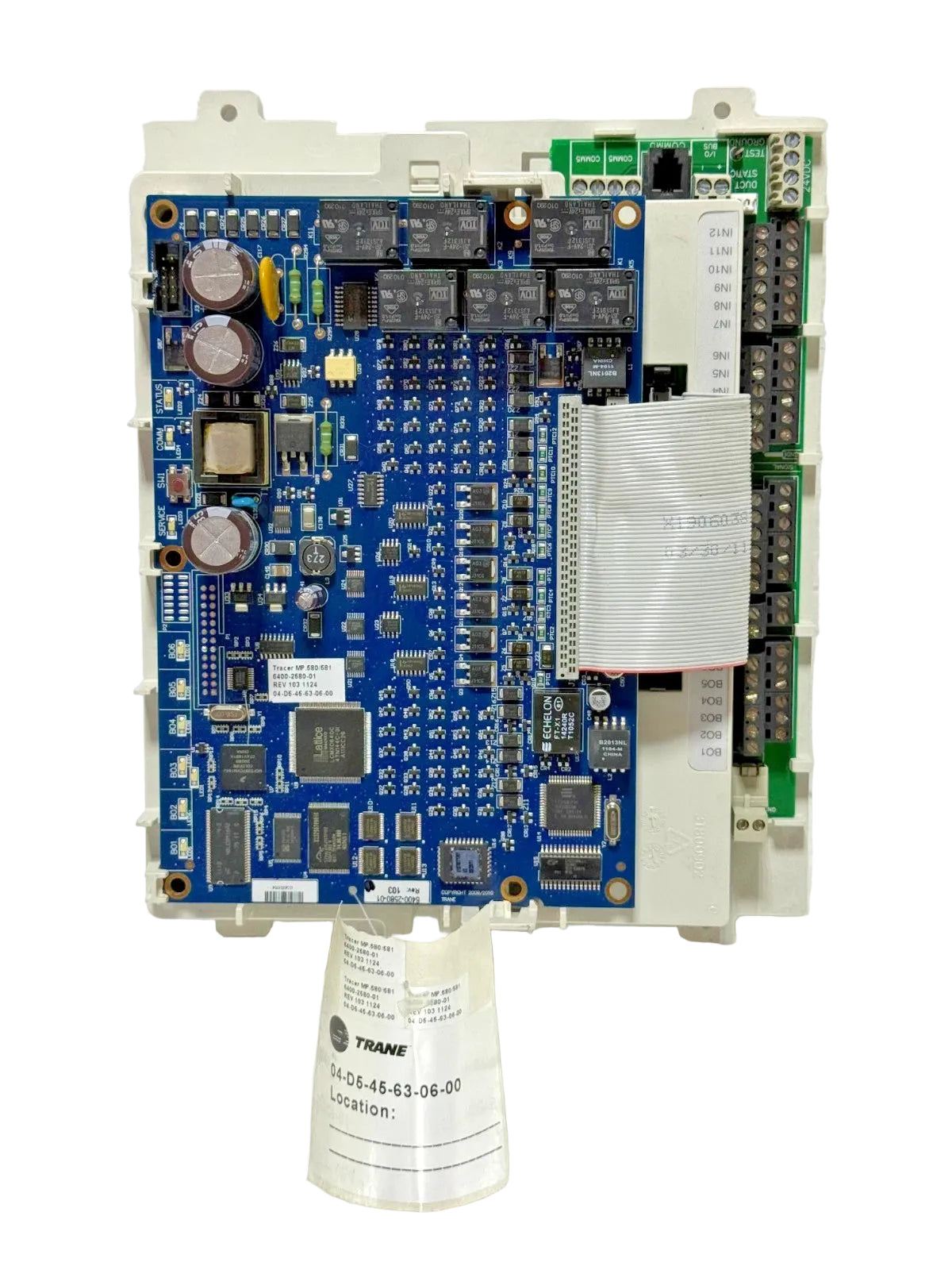

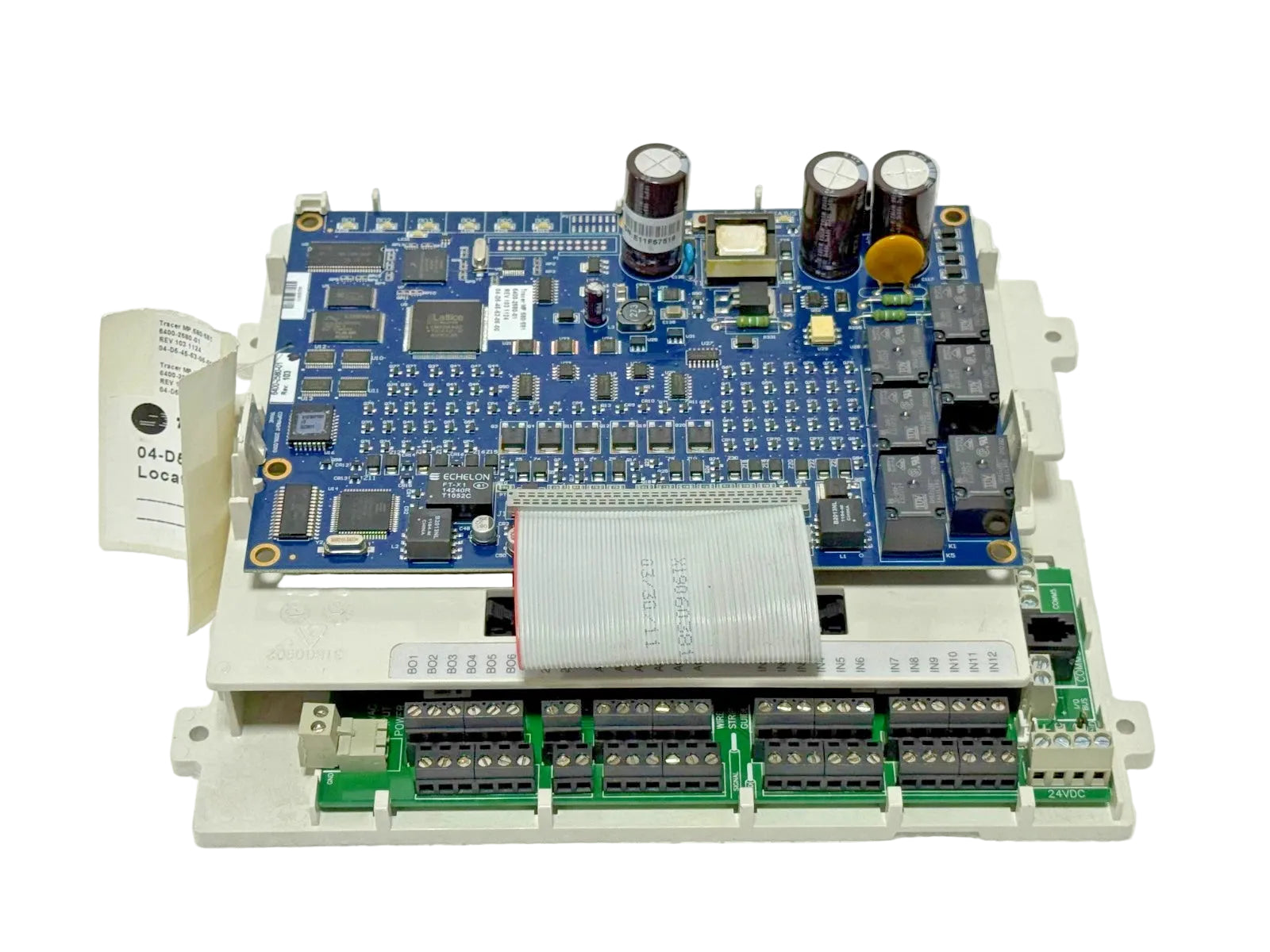

Trane 6400-2580-01 PC Board Assembly for Tracer MP581 Programmable Controller HVAC Automation
- Regular price
- $1,112.00
- Sale price
- $1,112.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: 6400-2580-01
Description
The Trane 6400-2580-01 is a programmable controller PC board assembly designed for the Tracer MP581 building automation controller platform. Manufactured by Trane (Ingersoll Rand), the 6400-2580-01 provides the processing and control functions required for HVAC equipment automation, enabling reliable monitoring, sequencing, and system control in commercial facilities. It serves as a replacement or upgrade board for compatible Tracer MP580 and MP581 programmable controllers.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | PLCs/Machine Control |
| Part Number | 6400-2580-01 |
| Subcategory | PC Board PLC/Add-On Board |
| Manufacturer | Trane (Ingersoll Rand) |
| Product Type | Programmable Controller PC Board Assembly |
| Controller Compatibility | Tracer MP580 / MP581 |
| Application | MP581 Programmable Controller |
| Status | Discontinued by Manufacturer |
| Input Voltage | 98–132 VAC / 196–264 VAC |
| Current Rating | 1 Amp |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Firmware Requirement | Revision 4.00.007 or newer |
| Typical Applications | Commercial HVAC and Building Automation Systems |
| Weight | 0.45 kgs |
Information About 6400-2580-01
The 6400-2580-01 is a discontinued PC board assembly developed for the Trane Tracer MP581 programmable controller used in commercial building automation systems. Designed to operate from either 98–132 VAC or 196–264 VAC single-phase power, the board supports HVAC control applications including air handling units, variable air volume systems, and other mechanical equipment managed through the Tracer platform. It can replace failed MP580/MP581 controller boards or be used to upgrade compatible AH540 and AH541 controllers to MP580/MP581 functionality when used with the appropriate firmware revision. The board integrates directly into the Tracer controller architecture, providing dependable programmable control for energy management and equipment automation.
Key Features:
- MP581 Controller Board: Designed specifically for Tracer MP581 programmable controllers.
- MP580 Compatibility: Supports MP580 and MP581 controller platforms for replacement and upgrades.
- Dual Voltage Input: Operates from either 98–132 VAC or 196–264 VAC power supplies.
- Building Automation Control: Provides programmable control for commercial HVAC equipment.
- Upgrade Capability: Allows compatible AH540 and AH541 controllers to be upgraded to MP580/MP581 systems.
- Single-Phase Operation: Designed for 1-phase, 50/60 Hz electrical systems.
- OEM Replacement Design: Direct replacement board for failed or obsolete MP581 controller assemblies.
- Commercial HVAC Application: Suitable for air handlers, mechanical systems, and building automation installations.
The 6400-2580-01 delivers the reliability and precision required for programmable HVAC control and commercial building automation systems.
