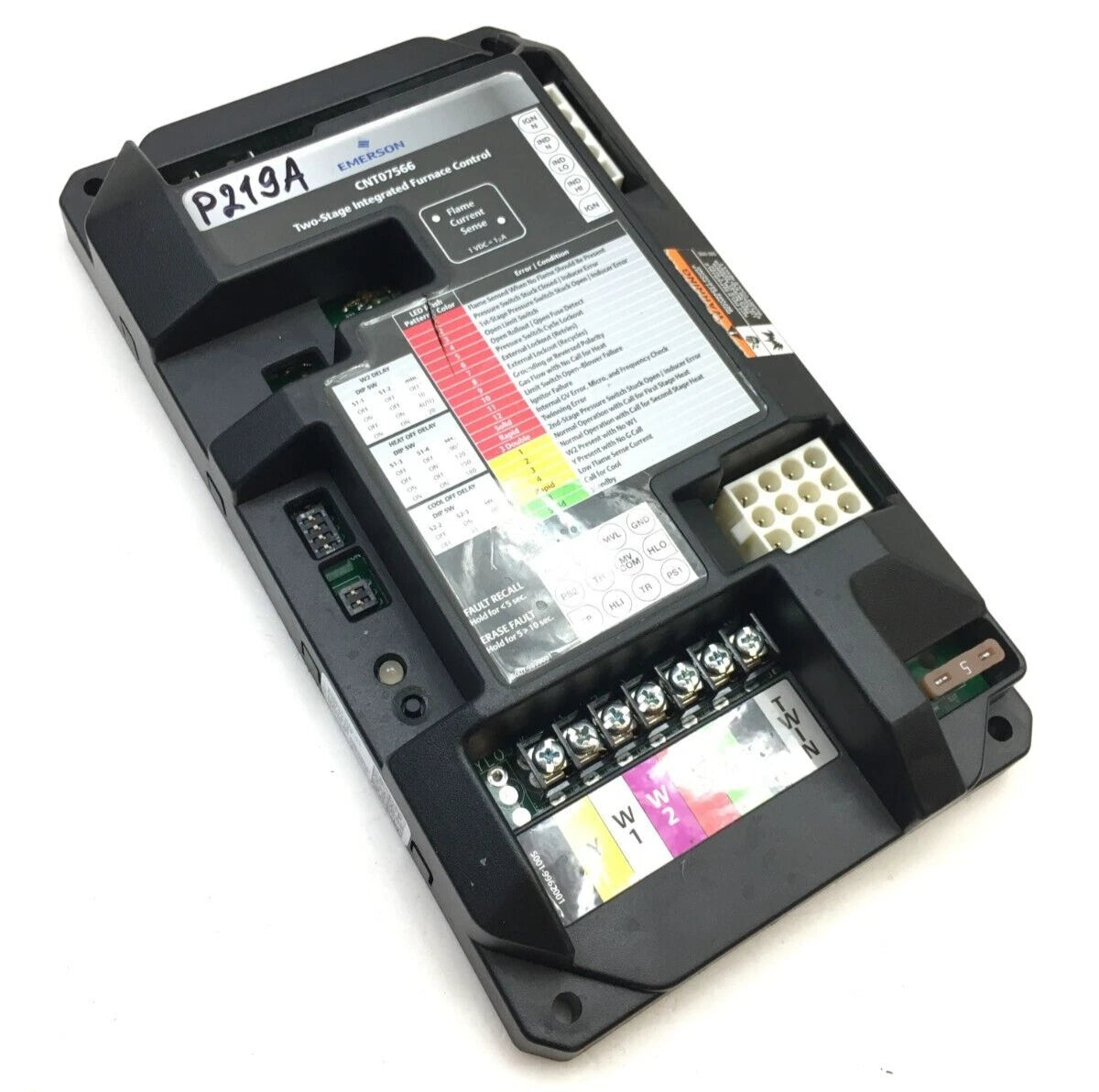

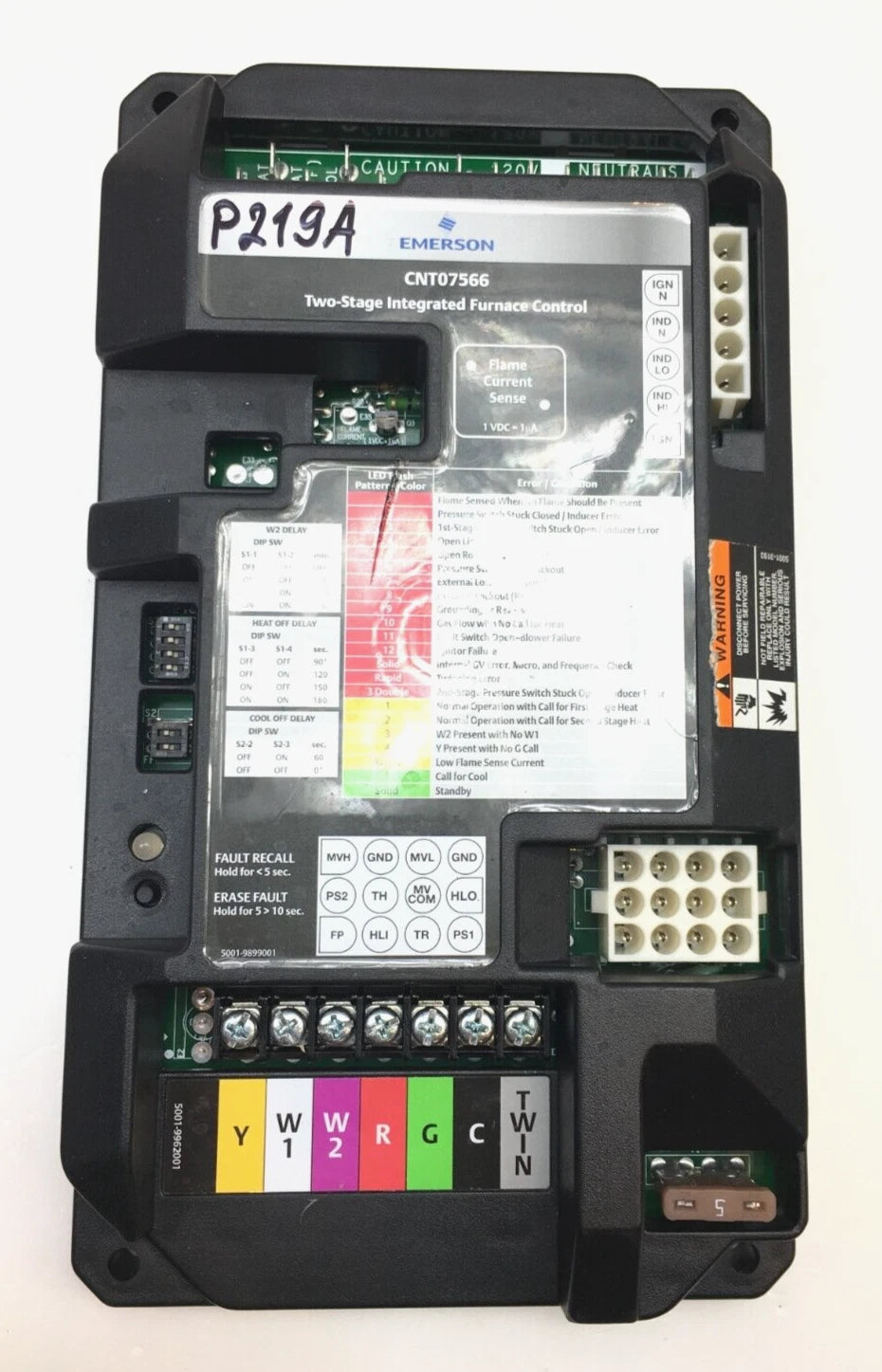

Trane CNT07566 24V 2-Stage HSI Furnace Ignition Control Module
- Regular price
- $434.00
- Sale price
- $434.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: CNT07566
Description
The Trane CNT07566 is a 24V 2-stage integrated HSI (Hot Surface Ignition) control module designed for precise ignition and system control in HVAC equipment. This module utilizes silicon carbide ignition technology to ensure reliable burner startup and efficient operation. It is commonly used in Trane and American Standard heating systems for dependable furnace control performance.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | HVAC Controls |
| Part Number | CNT07566 |
| Subcategory | Ignition Control Modules |
| Control Voltage | 24 VAC |
| Heating Stages | 2-Stage |
| Ignition Type | Hot Surface Ignition (HSI) |
| Igniter Material | Silicon Carbide |
| Compatibility | Trane, American Standard Furnaces |
| Function | Ignition and Furnace Control |
| Safety Features | Flame sensing, fault diagnostics |
| Application | Residential and Light Commercial HVAC |
| Mounting Type | Panel Mount |
| Weight | 0.9 lb |
Information About CNT07566
The CNT07566 is part of Trane’s integrated furnace control solutions, engineered to manage ignition sequences and system safety in modern HVAC units. It features a silicon carbide hot surface igniter, providing fast and consistent ignition under varying operating conditions. Designed for compatibility with Trane and American Standard furnaces, this module supports 2-stage heating for improved energy efficiency and temperature regulation. Its integrated design combines multiple control functions into a single unit, simplifying installation and maintenance in residential and light commercial systems.
Key Features:
- 24V Control Voltage: Operates on standard low-voltage HVAC control systems
- 2-Stage Heating Control: Supports staged operation for improved efficiency and comfort
- Silicon Carbide Ignition: Provides reliable and fast hot surface ignition performance
- Integrated Control Module: Combines ignition, timing, and safety functions in one unit
- OEM Trane Component: Designed to meet original equipment specifications
- System Safety Monitoring: Includes flame sensing and fault detection capabilities
- Wide Compatibility: for Trane and American Standard furnace systems
- Efficient Operation: Enhances fuel efficiency through controlled ignition cycles
- Durable Electronics: Built for long-term operation in HVAC environments
- Simplified Installation: Direct replacement design reduces setup time
- Consistent Performance: Maintains stable operation across varying conditions
The CNT07566 delivers the reliability and precision required for efficient furnace ignition and control in HVAC systems.
