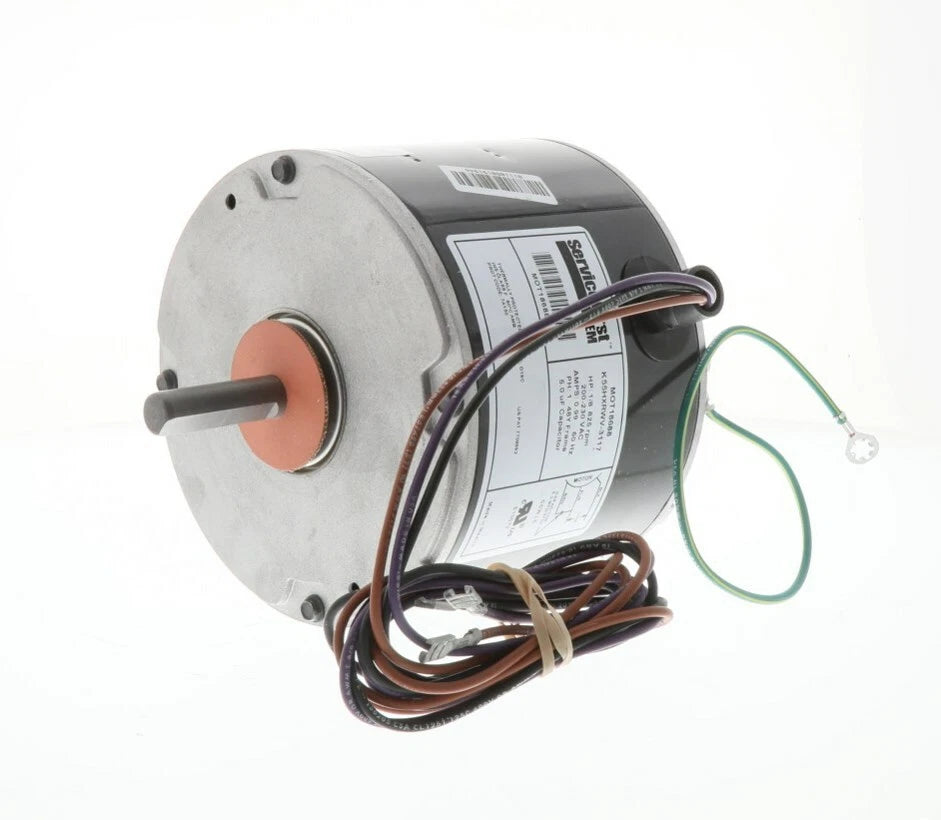

Trane D154504P01 1/8 HP 825 RPM 200-230V Condenser Fan Motor
- Regular price
- $589.00
- Sale price
- $589.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D154504P01
Description
Trane D154504P01 is a 1/8 HP condenser fan motor designed for compatible Trane HVAC equipment. It operates at 200–230 VAC, 60 Hz, and 825 RPM with single-phase power and is identified with motor model 5KCP39GFAB23S and replacement part MOT12215.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | HVAC |
| Part Number | D154504P01 |
| Subcategory | Condenser Fan Motors |
| Motor Model | 5KCP39GFAB23S |
| Replacement Part | MOT12215 |
| Motor Type | PSC |
| Horsepower | 1/8 HP |
| Voltage | 200–230 VAC |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Speed | 825 RPM |
| Bearing Type | Sleeve Bearing |
| Shaft Diameter | 1/2 in |
| Duty | Continuous Air Over |
| Overload Protection | Automatic |
| Weight | 12.4 lb |
Information About D154504P01
The D154504P01 is a permanent split capacitor (PSC) condenser fan motor intended for continuous air-over operation in HVAC systems. It features a 48 frame, sleeve bearings, and a 1/2-inch shaft for compatible condenser fan assemblies. The motor operates at 825 RPM from a 200–230 VAC single-phase supply and is designed with overload protection for fan-duty applications. It is identified as an OEM Trane condenser fan motor with model 5KCP39GFAB23S.
Key Features:
- Condenser Fan Motor: Designed for compatible Trane HVAC condenser fan applications.
- 1/8 HP Rating: Provides 0.125 HP output for compatible condenser equipment.
- 200–230 VAC Operation: Supports a 200–230 VAC single-phase power supply.
- 825 RPM Speed: Provides the specified operating speed for condenser fan applications.
- PSC Motor Design: Uses permanent split capacitor motor construction.
- 48 Frame: Features a standard 48-frame configuration.
- Sleeve Bearings: Uses sleeve bearings suitable for the motor's fan-duty application.
- Air-Over Construction: Designed for continuous air-over condenser fan operation.
The D154504P01 provides dependable condenser fan operation for compatible Trane HVAC equipment requiring a compact 1/8 HP motor.
