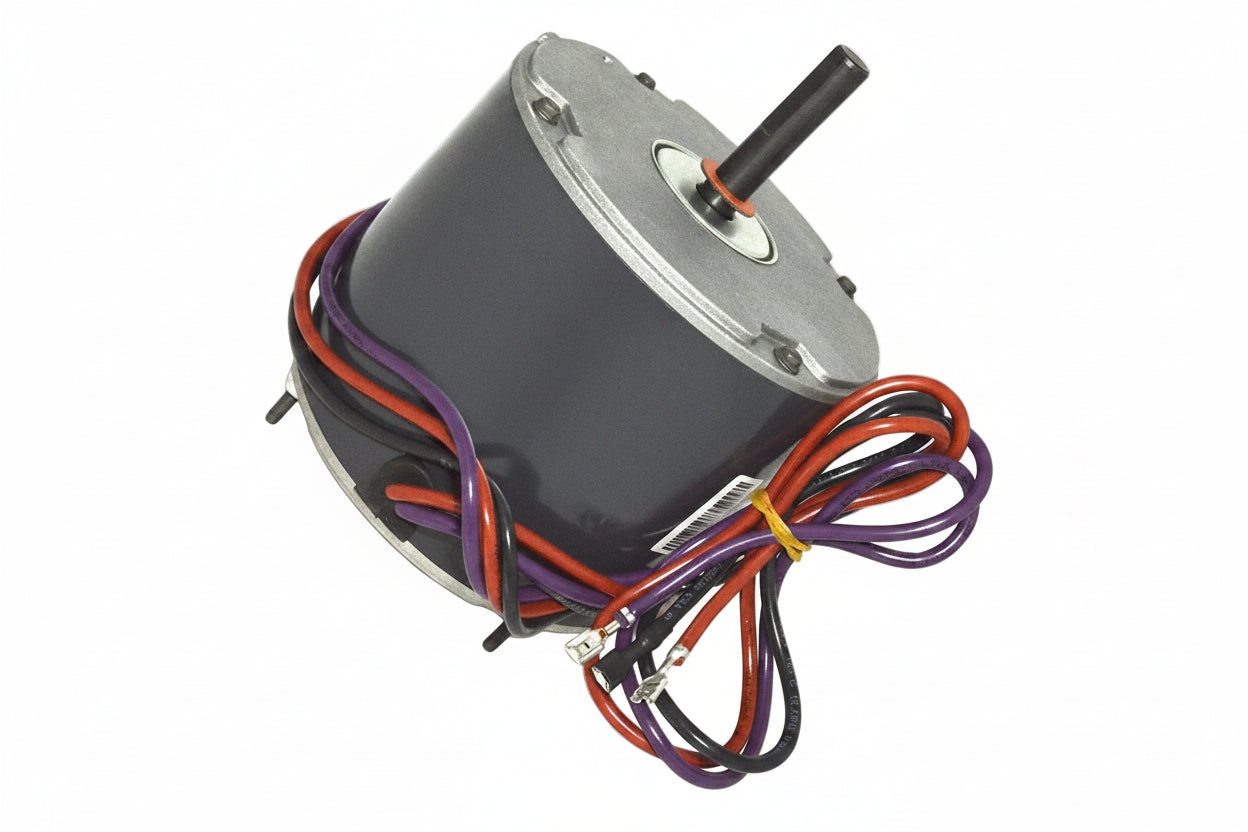

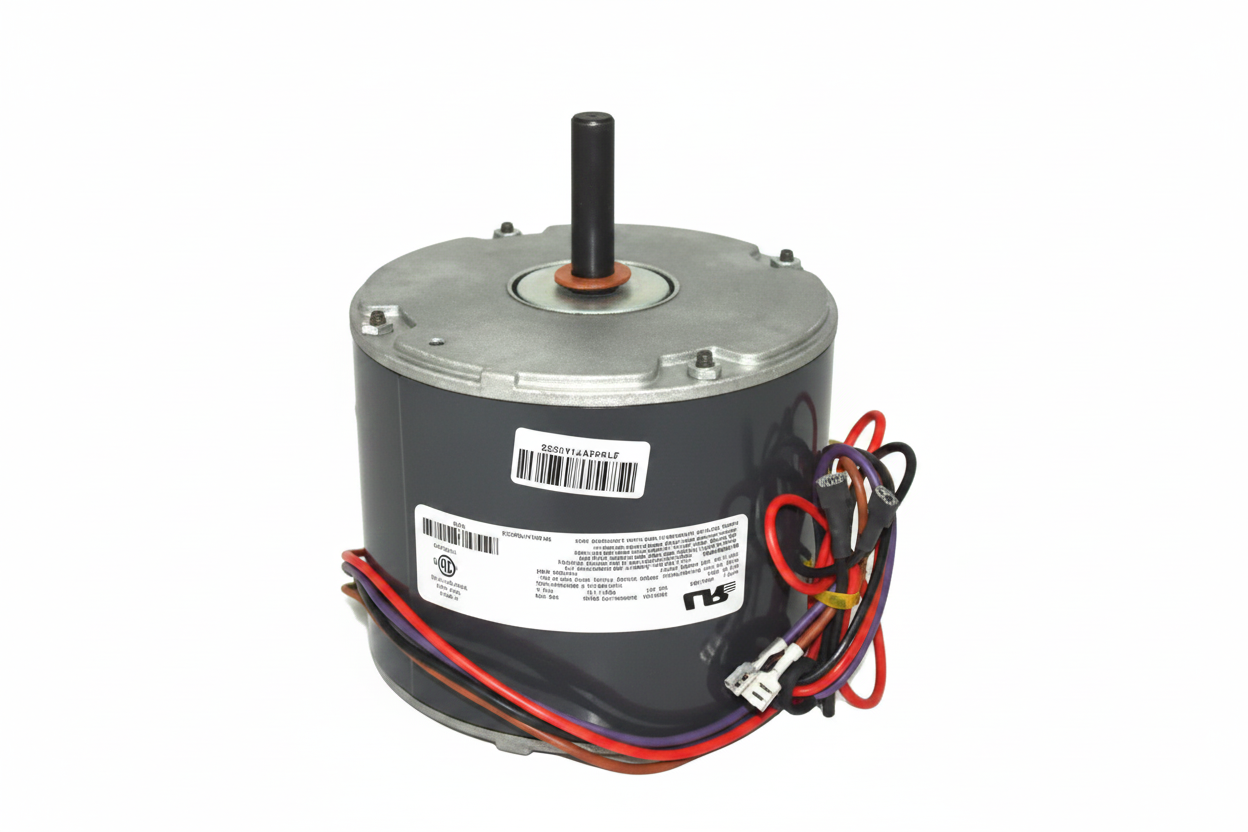

Trane D156744P01 1/5 HP Condenser Fan Motor 200-230V 825 RPM

Description

The Trane D156744P01 is a 1/5 HP condenser fan motor designed for compatible Trane and American Standard air-conditioning equipment. It operates at 200–230V, single phase, and 825 RPM with counterclockwise lead-end rotation, and includes a capacitor for condenser fan applications.

Technical Specifications

Information About D156744P01

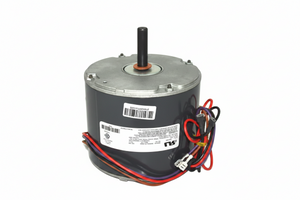

The D156744P01 is identified with the K55HXENU-0114 motor model and is classified as a condenser fan motor. Its PSC design uses a 48Y frame with a 5.6-inch motor diameter and ball bearings for the specified application. The motor is rated for 0.93A, uses a TEAO enclosure, and has a four-hole endshield configuration. It is listed for Trane condenser-fan applications and is cross-referenced with MOT13693 and related motor identifiers.

Key Features:

• Motor Type: Condenser fan motor for compatible HVAC outdoor equipment.
• Horsepower: Rated at 1/5 HP for the specified condenser-fan application.
• Voltage: Designed for 200–230V electrical operation.
• Speed: Provides a rated operating speed of 825 RPM.
• Phase: Uses a single-phase electrical configuration.
• Rotation: Configured for counterclockwise rotation at the lead end (CCWLE).
• Frame: Uses a 48Y frame with a 5.6-inch diameter and four-hole endshield.
• Capacitor: Supplied as a condenser fan motor replacement with capacitor.

The D156744P01 delivers the reliability and precision required for condenser fan operation in compatible Trane and American Standard HVAC equipment.
