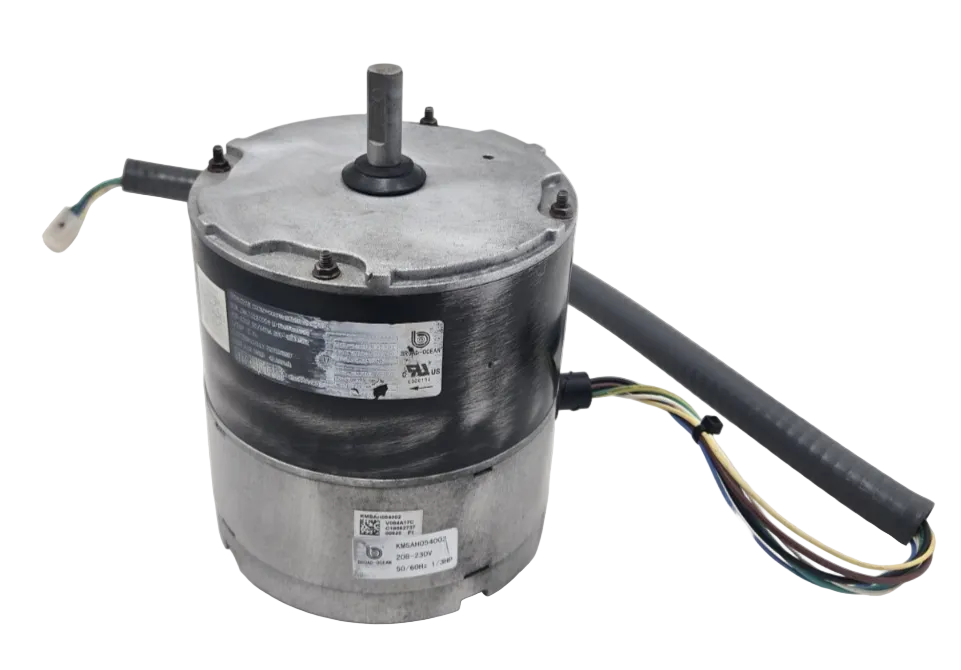

Trane D159882P01 ECM Condenser Fan Motor 208-230V Variable Speed
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D159882P01
Description
The Trane D159882P01 is an electronically commutated motor used for HVAC condenser fan applications. It is cross-referenced with Trane MOT18698 and operates from a 208–230 V supply with variable-speed electronic control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | HVAC Motors |
| Part Number | D159882P01 |
| Subcategory | ECM Condenser Fan Motors |
| Cross-Reference | MOT18698 |
| Motor Type | ECM |
| Voltage | 208–230 V AC |
| Speed Type | Variable Speed |
| Motor Frame | NEMA 48 |
| Enclosure | TEAO |
| Control Signal | PWM |
| Capacitor Required | No |
| Application | Condenser Fan |
| Compatible Equipment | Trane HVAC / Heat Pump Systems |
| Weight | 14.4 lb |
Information About D159882P01BCM-MS/TP
The D159882P01 is an ECM condenser fan motor used in compatible Trane outdoor HVAC equipment. The motor is identified with the MOT18698 model and is designed for variable-speed operation without a conventional run capacitor. Its electrical configuration includes 208–230 V line power and low-voltage control connections for speed and control signals. The motor is used in selected Trane condensing and heat-pump equipment.
Key Features:
- ECM Motor: Uses electronically commutated motor technology for variable-speed operation.
- Voltage: Operates from a 208–230 V AC supply.
- Variable Speed: Provides electronically controlled motor-speed operation.
- Capacitor-Free Design: Does not require a conventional run capacitor.
- Condenser Application: Designed for outdoor condenser fan assemblies.
- Control Input: Uses a low-voltage PWM speed-control signal.
- Motor Cross-Reference: Associated with Trane MOT18698.
- HVAC Compatibility: Used in selected Trane air-conditioning and heat-pump equipment.
The D159882P01 delivers the reliability and precision required for variable-speed HVAC condenser fan applications.
Description
The Trane D159882P01 is an electronically commutated motor used for HVAC condenser fan applications. It is cross-referenced with Trane MOT18698 and operates from a 208–230 V supply with variable-speed electronic control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | HVAC Motors |
| Part Number | D159882P01 |
| Subcategory | ECM Condenser Fan Motors |
| Cross-Reference | MOT18698 |
| Motor Type | ECM |
| Voltage | 208–230 V AC |
| Speed Type | Variable Speed |
| Motor Frame | NEMA 48 |
| Enclosure | TEAO |
| Control Signal | PWM |
| Capacitor Required | No |
| Application | Condenser Fan |
| Compatible Equipment | Trane HVAC / Heat Pump Systems |
| Weight | 14.4 lb |
Information About D159882P01BCM-MS/TP
The D159882P01 is an ECM condenser fan motor used in compatible Trane outdoor HVAC equipment. The motor is identified with the MOT18698 model and is designed for variable-speed operation without a conventional run capacitor. Its electrical configuration includes 208–230 V line power and low-voltage control connections for speed and control signals. The motor is used in selected Trane condensing and heat-pump equipment.
Key Features:
- ECM Motor: Uses electronically commutated motor technology for variable-speed operation.
- Voltage: Operates from a 208–230 V AC supply.
- Variable Speed: Provides electronically controlled motor-speed operation.
- Capacitor-Free Design: Does not require a conventional run capacitor.
- Condenser Application: Designed for outdoor condenser fan assemblies.
- Control Input: Uses a low-voltage PWM speed-control signal.
- Motor Cross-Reference: Associated with Trane MOT18698.
- HVAC Compatibility: Used in selected Trane air-conditioning and heat-pump equipment.
The D159882P01 delivers the reliability and precision required for variable-speed HVAC condenser fan applications.
