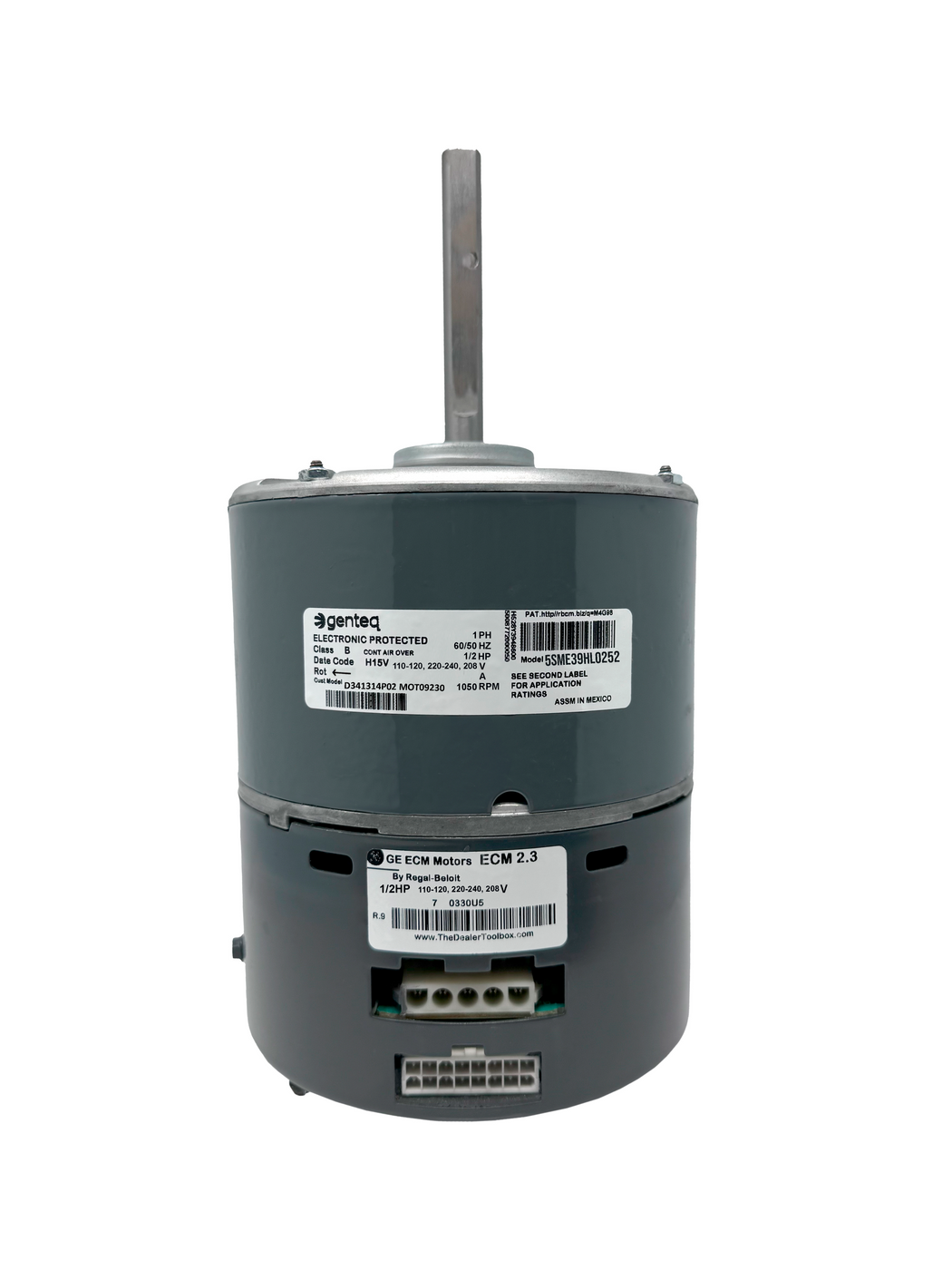

Trane D341314P02 1/2 HP Variable-Speed ECM HVAC Blower Motor
- Regular price
- $1,272.00
- Sale price
- $1,272.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D341314P02
Description
The Trane D341314P02 is a 1/2 HP variable-speed ECM blower motor designed for compatible HVAC furnace and air-handling equipment. It operates on 120/208–240 VAC single-phase power and provides controlled blower operation for air circulation within the system. The motor is associated with the MOT09230 configuration and is intended for compatible Trane and American Standard equipment.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | HVAC Motors |
| Part Number | D341314P02 |
| Subcategory | Blower Motors |
| Motor Type | ECM Variable-Speed Blower Motor |
| Associated Model | MOT09230 |
| Horsepower | 1/2 HP |
| Voltage | 120/208–240 VAC |
| Phase | Single Phase |
| Frequency | 50/60 Hz |
| Nominal Speed | 1050 RPM |
| Frame Size | NEMA 48 |
| Shaft Diameter | 0.5 in |
| Shaft Length | Approx. 4 in |
| Enclosure | Open Dripproof (ODP) |
| Optical Window Material | Polycarbonate |
| Operating Temperature | -10°C to +50°C |
| Weight | 12.8 lb |
Information About D341314P02
The D341314P02 is a Trane blower motor designation associated with the MOT09230 variable-speed ECM motor assembly. It uses electronically commutated motor technology to regulate blower speed according to HVAC operating requirements. The motor features a NEMA 48 frame and operates from a 120/208–240 VAC single-phase supply. Its variable-speed design allows the connected blower assembly to provide controlled airflow in compatible HVAC systems.
Key Features:
- Motor Type: Electronically commutated motor (ECM) designed for variable-speed blower applications.
- Rated Power: Provides 1/2 HP for compatible HVAC blower assemblies.
- Variable-Speed Operation: Allows controlled motor speed for adjustable airflow management.
- Voltage: Supports 120/208–240 VAC single-phase electrical systems.
- Frame Size: Uses a NEMA 48 frame configuration for compatible equipment.
- HVAC Application: Designed for use with compatible Trane and American Standard HVAC equipment.
- Frequency: Supports 50/60 Hz electrical operation.
- Shaft Configuration: Features a 0.5-inch shaft diameter and approximately 4-inch shaft length.
The D341314P02 delivers the reliability and precision required for HVAC blower operation, controlled air circulation, and variable-speed air-handling applications.
