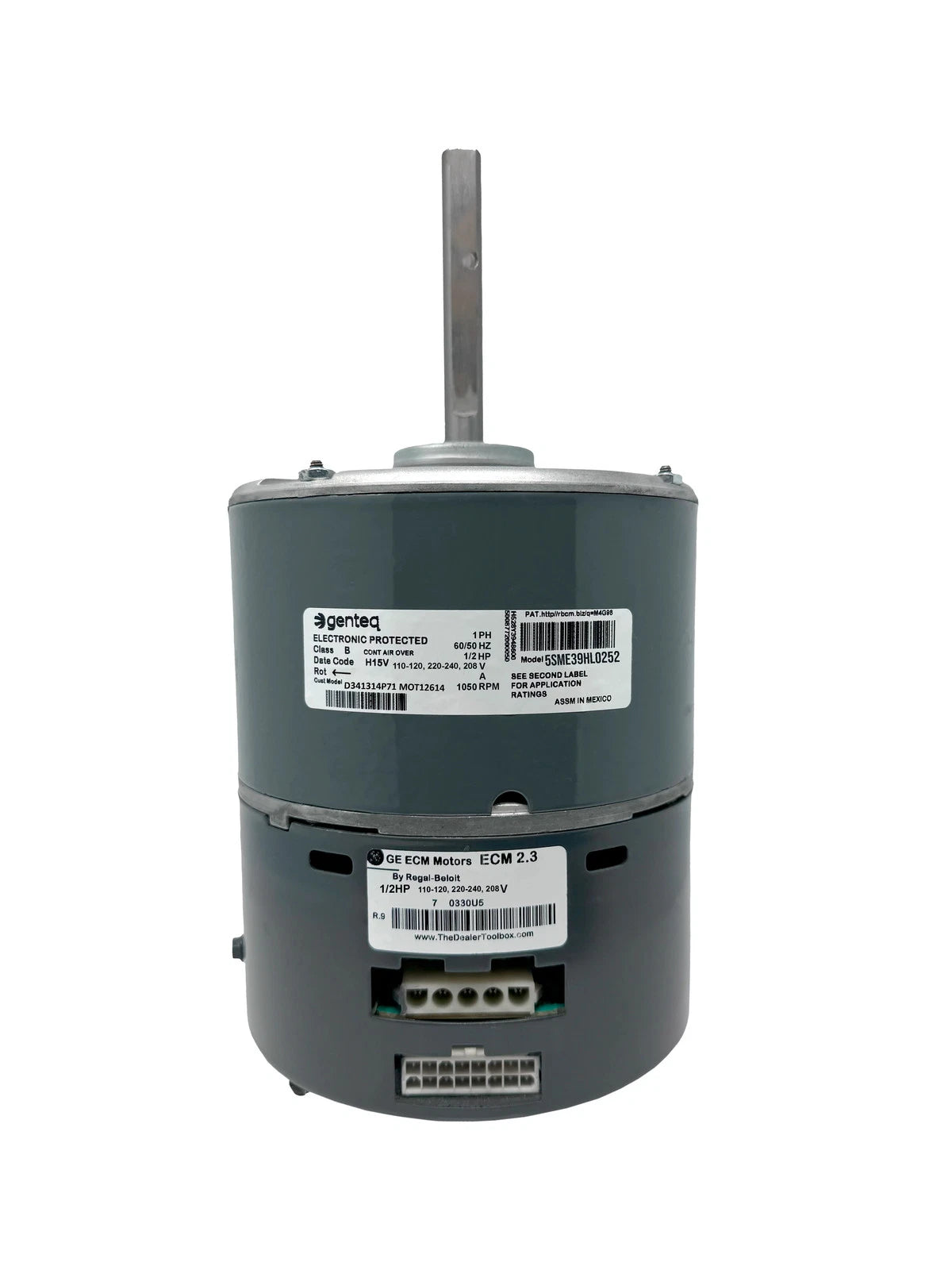

Trane D341314P71 MOT12614 1/2 HP ECM 2.3 Variable Speed Blower Motor
- Regular price
- $1,575.00
- Sale price
- $1,575.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D341314P71
Description
The Trane D341314P71 MOT12614 is a 1/2 HP ECM 2.3 variable-speed blower motor designed for HVAC air-handling applications. It operates across 110–120V, 208V, and 220–240V ranges and provides reversible rotation for flexible installation and airflow control.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | HVAC |
| Part Number | D341314P71 |
| Subcategory | Motors |
| Product Type | ECM 2.3 Blower Motor |
| Model | MOT12614 |
| Motor Type | ECM Variable Speed |
| Power | 1/2 HP |
| Voltage | 110–120V, 208V, 220–240V |
| Mount Type | Shell-Band |
| Bearing Type | Ball |
| Shaft Diameter | 1/2 inch |
| Shaft Length | 4 1/4 inches |
| Enclosure | Open Air Over |
| Programming | 100% Programmed / Plug and Play |
| Weight | 12.00 lb |
Information About D341314P71
The D341314P71 is an ECM 2.3 blower motor engineered for use in compatible Trane HVAC equipment. Its variable-speed operation allows the motor to adjust airflow according to system requirements while supporting efficient HVAC operation. The motor features a 48 NEMA frame, shell-band mounting, ball bearings, and an open air-over enclosure. The 1/2-inch diameter shaft measures 4 1/4 inches in length and the motor provides reversible rotation for installation flexibility.
Key Features:
- ECM 2.3 Technology: Provides electronically commutated variable-speed motor operation for HVAC blower applications.
- 1/2 HP Output: Delivers the power required for compatible residential and light commercial air-handling systems.
- Variable Speed: Allows flexible blower operation and airflow adjustment according to system requirements.
- Multi-Voltage Operation: Designed to operate at 110–120V, 208V, and 220–240V.
- Reversible Rotation: Supports clockwise or counterclockwise operation for installation flexibility.
- Ball Bearings: Provides smooth motor operation and supports long-term mechanical performance.
- 48 NEMA Frame: Uses a standard 48-frame configuration for compatible HVAC equipment.
- Plug-and-Play Design: Supplied fully programmed and ready for installation in compatible applications.
The D341314P71 delivers the reliability and precision required for variable-speed blower operation in compatible Trane HVAC systems.
