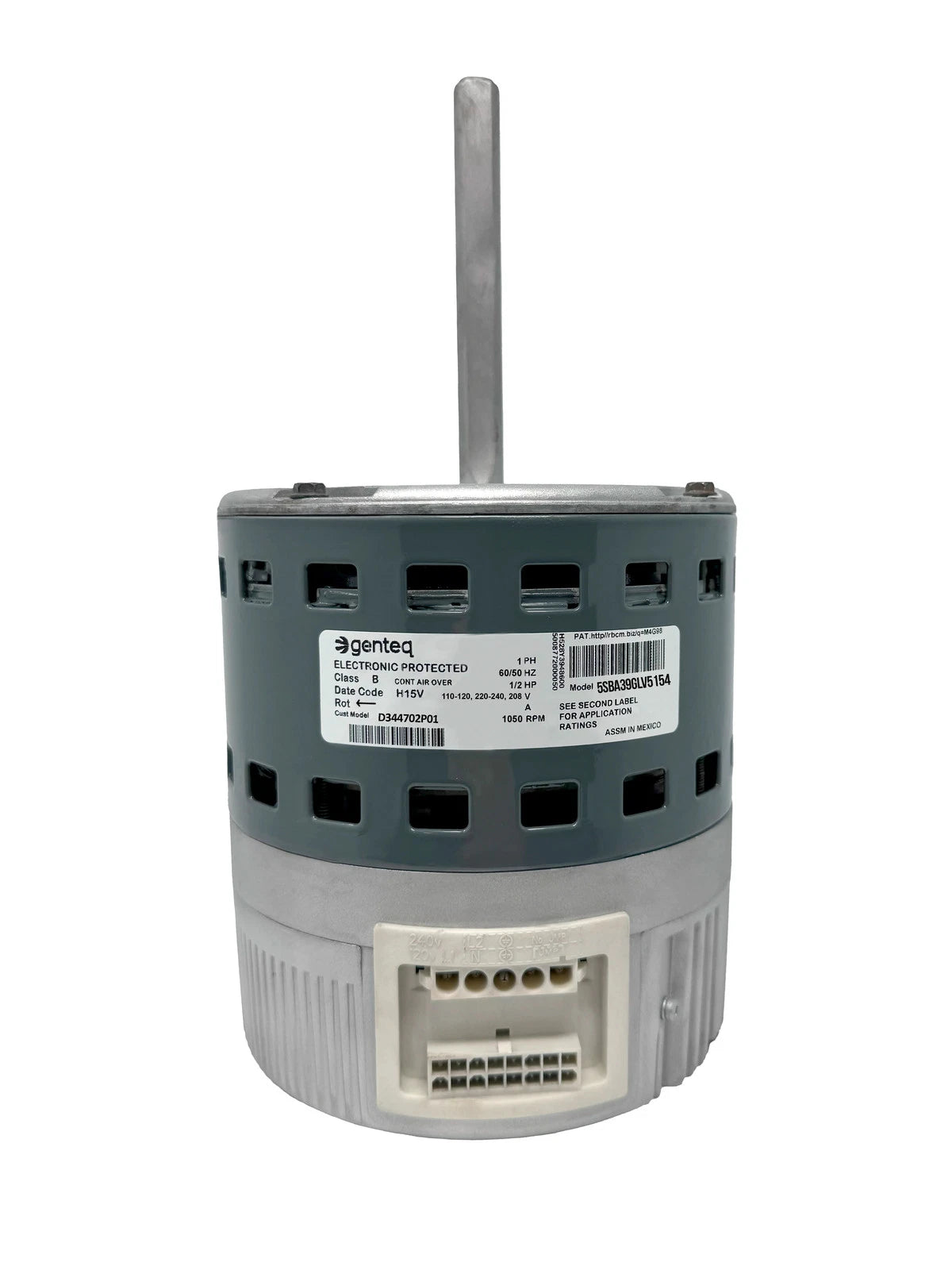

Trane D344702P01 EON ECM Blower Motor
- Regular price
- $929.00
- Sale price
- $929.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D344702P01
Description
The Trane D344702P01 is an EON electronically commutated blower motor that drives air circulation in compatible HVAC equipment. Its 1/2 HP output powers the blower wheel to move air through the heating or cooling section and connected ductwork.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | HVAC Motors |
| Part Number | D344702P01 |
| Subcategory | ECM Blower Motors |
| Product Type | Electric blower motor |
| Series | EON |
| Motor Technology | Electronically commutated motor (ECM) |
| Rated Power | 1/2 HP |
| Listed Voltage | 115/208/230 V |
| Frame | 48Y |
| Enclosure | Open Air Over (OAO) |
| Motor Diameter | 5.6 in |
| Shaft Type | Single |
| Shaft Diameter | 0.5 in |
| Shaft Length | 5 in, per supplied specifications |
| Number of Speeds | Listed as 1 in supplied specifications; confirm control configuration |
| Application | Indoor blower drive in compatible HVAC equipment |
| Weight | 11 lb (4.99 kg) |
Information About D344702P01
The D344702P01 is an EON-series ECM motor built in a 48Y frame with a listed motor diameter of 5.6 inches. Its Open Air Over enclosure requires airflow across the housing to dissipate motor heat. A single shaft provides the mechanical connection to the blower wheel, with a listed diameter of 0.5 inch and length of 5 inches. Installation requires matching the motor’s electrical connections, mounting dimensions, and control configuration to the equipment.
Key Features:
- Blower Drive Function: Powers the blower wheel to circulate air through compatible HVAC equipment.
- ECM Technology: Uses electronic commutation to control motor operation.
- EON Series: Provides the EON motor configuration specified for compatible HVAC equipment.
- Motor Output: Uses a 1/2 HP motor to drive the blower assembly.
- Supply Compatibility: Operates on the listed supply voltages of 115, 208, and 230 V.
- Frame Configuration: Uses a 48Y frame with a listed motor diameter of 5.6 inches.
- Open Air Over Enclosure: Uses airflow across the motor housing for cooling.
- Single-Shaft Design: Provides a 0.5-inch-diameter shaft for connection to the blower wheel.
The D344702P01 delivers the reliability and precision required for blower operation and air circulation in compatible HVAC heating and cooling equipment.
