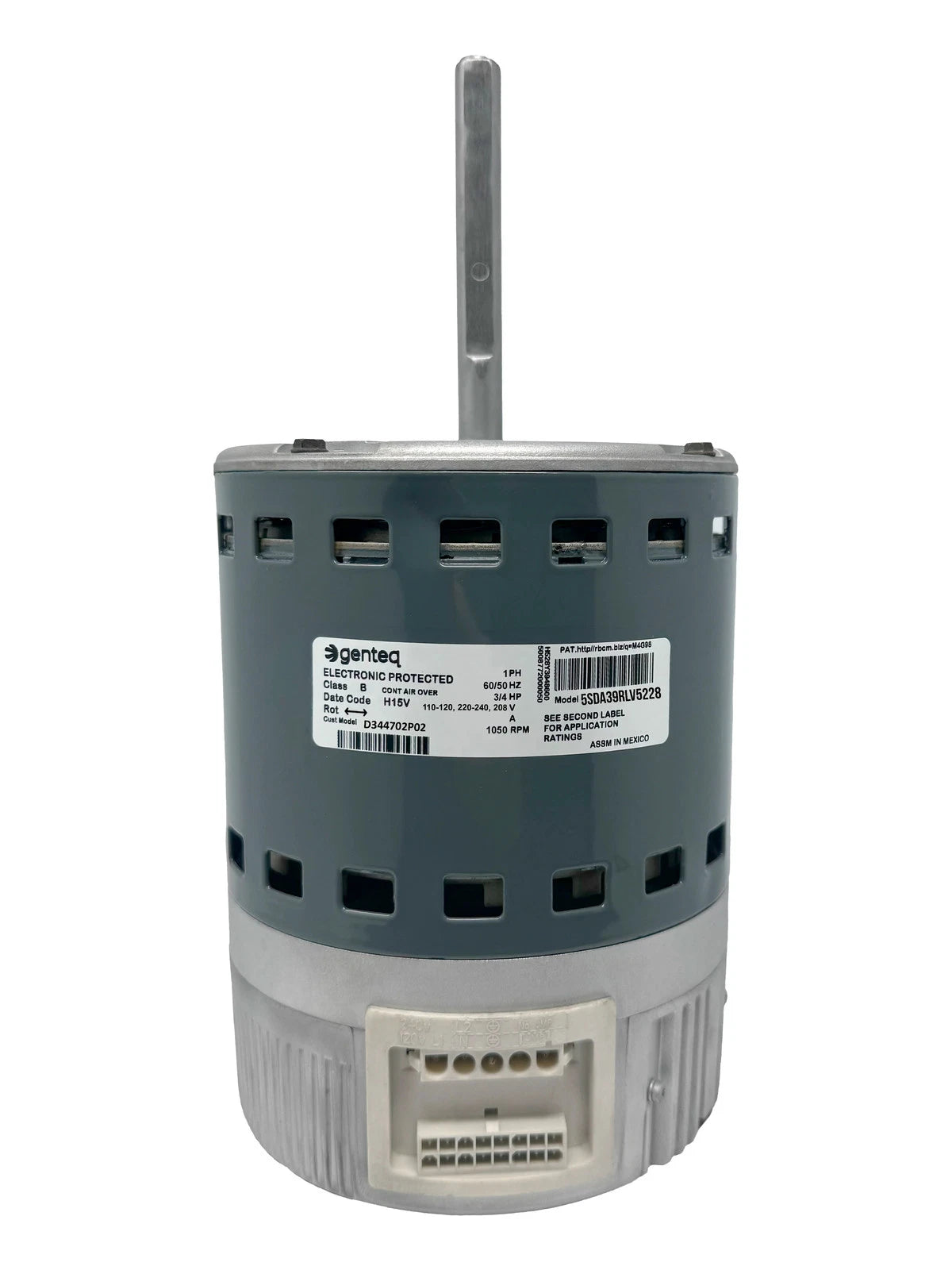

Trane D344702P02 EON ECM Blower Motor
- Regular price
- $999.00
- Sale price
- $999.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: D344702P02
Description
The Trane D344702P02 is an EON electronically commutated blower motor designed to drive the indoor blower in compatible HVAC equipment. Its 3/4 HP output supports air circulation through the equipment’s heat exchanger, coil, and connected duct system.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | HVAC Motors |
| Part Number | D344702P02 |
| Subcategory | ECM Blower Motors |
| Series | EON |
| Motor Technology | Electronically commutated motor (ECM) |
| Rated Power | 3/4 HP |
| Voltage | 120/208–240 V |
| Phase | Single-phase |
| Frame | 48 |
| Enclosure Type | Open Air Over |
| Number of Speeds | 1, per supplied specifications |
| Speed Type | Single speed, per supplied specifications |
| Motor Speed | 1,400 rpm, per supplied specifications |
| Rotation | Counterclockwise, viewed from lead end |
| Shaft Diameter | 1/2 in |
| Shaft Length | 11.65 in, per supplied specifications; verify before installation |
| Shipping Dimensions | 17.20 × 8.40 × 8.20 in (L × W × H) |
| Weight | 8.95 lb (4.06 kg) |
Information About D344702P02
The D344702P02 is an EON-series ECM blower motor with a 48-frame configuration. Its Open Air Over enclosure relies on airflow across the motor for cooling during operation. The supplied specifications identify single-phase power compatibility at 120/208–240 V. Replacement selection requires matching the equipment’s motor designation, electrical connections, control configuration, and mounting arrangement.
Key Features:
- Blower Drive Function: Moves air through the heating or cooling system using the connected blower wheel.
- ECM Technology: Uses electronic commutation to control motor operation.
- EON Series: Provides the EON motor configuration specified for compatible HVAC equipment.
- Motor Output: Uses a 3/4 HP motor to drive the blower assembly.
- Supply Compatibility: Operates on 120/208–240 V single-phase power.
- Frame Configuration: Uses a 48-frame design for the specified mounting arrangement.
- Open Air Over Enclosure: Uses airflow across the motor housing for cooling.
- Rotation Direction: Rotates counterclockwise when viewed from the lead end.
The D344702P02 delivers the reliability and precision required for blower operation and air circulation in compatible HVAC equipment.
