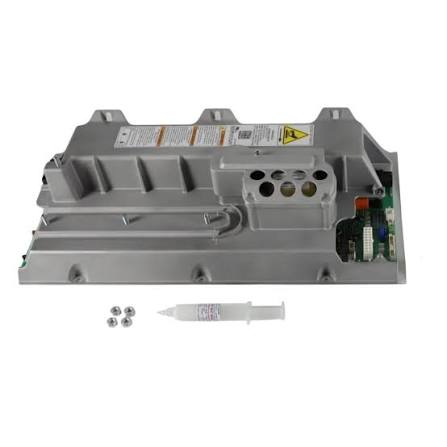

Trane DRV03690 Variable Frequency Drive Kit 6.3 kW 5T Commercial HVAC
- Regular price
- $2,299.00
- Sale price
- $2,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: DRV03690
Description
The Trane DRV03690 drive kit delivers precise power conversion and speed regulation for commercial and industrial HVAC equipment. Operating at a 6.3 kW power capacity for 5-ton cooling systems, this variable frequency drive assembly optimizes compressor and fan performance. Its solid-state inverter architecture reduces system energy consumption and mechanical wear across variable thermal load cycles.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | Drive |
| Part Number | DRV03690 |
| Subcategory | Variable Frequency Drive |
| Kit Component | Complete Drive Kit |
| Power Output | 6.3 kW |
| Equipment Capacity | 5 Ton (5T) |
| Control Type | Variable Frequency Inverter Drive |
| Enclosure Protection | Industrial Sealed Frame |
| Mounting Style | Panel Mount / Enclosure Mount |
| Application | Commercial HVAC Compressor & Fan Drive |
| Weight | 4.08 kgs |
Information About DRV03690
The DRV03690 is engineered within Trane's specialized HVAC variable frequency drive series to manage motor speeds and electrical frequencies in climate control units. The module features integrated heat-sinking and high-grade semiconductor switching circuits designed to withstand electrical noise and thermal stress. It interfaces directly with central HVAC system controllers to process dynamic speed demands and regulate power delivery to connected compressor or blower motors. Built-in diagnostic sensors continuously monitor voltage, current draw, and internal temperatures to shield the drive and motor windings against electrical faults.
Key Features:
-
Power Capacity: Rated at 6.3 kW output to handle the power requirements of 5-ton HVAC system configurations.
-
Variable Speed Regulation: Dynamically modulates electrical frequency to optimize motor speed and reduce energy draw.
-
Integrated Heat Sink: Heavy-duty thermal management assembly maintains optimal internal operating temperatures.
-
Compact Drive Kit: Engineered as a complete drive kit with a 4.08 kg weight profile for straightforward enclosure mounting.
-
Diagnostic Monitoring: Features built-in fault sensing to protect connected equipment from overvoltage and phase imbalance.
-
Solid-State Architecture: Constructed with high-grade industrial inverter components for long-term operational stability.
The DRV03690 delivers the reliability and precision required for critical HVAC variable speed drive and climate control systems.
