Product Description P/N: MOT09262
Description

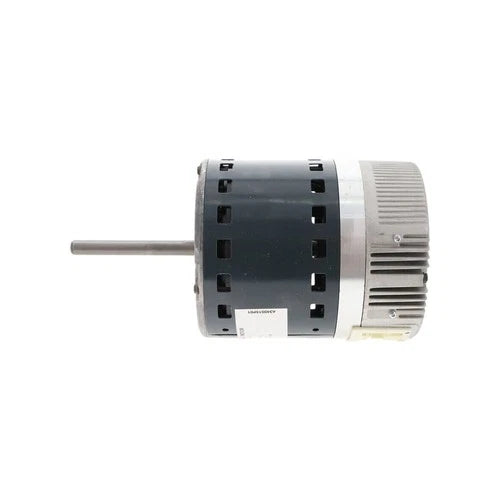

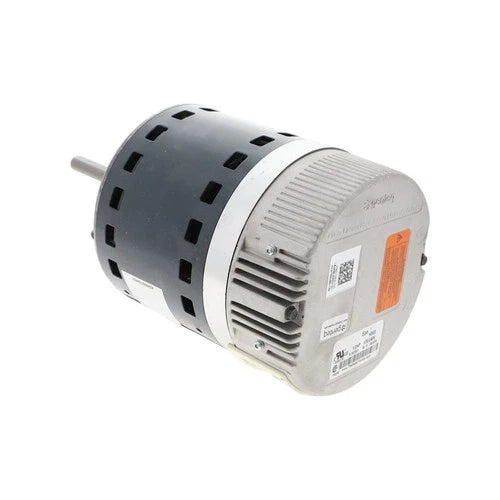

The Trane MOT09262 ECM variable speed motor module set delivers high-efficiency airflow management for modern residential and commercial HVAC units. Operating on 115V or 230V single-phase power with a 1/2 horsepower output, this pre-programmed assembly ensures precise air delivery and quiet operation. Its advanced electronic commutation technology optimizes blower performance across varied static pressure conditions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | Motors/GearBox/Clutch |
| Part Number | MOT09262 |
| Subcategory | Motor |
| Horsepower | 1/2 HP |
| Voltage | 115/230 VAC |
| Motor Type | Electronically Commutated Motor (ECM) / Variable Speed |
| Phase | Single-Phase |
| Frequency | 50/60 Hz |
| Programming | Pre-Programmed |
| Mounting Type | Band / Stud Mount |
| Application | HVAC Blower / Air Handler |
| Weight | 5.44 kgs |
Information About MOT09262
The MOT09262 is engineered as a complete replacement electronic control module and motor set within Trane's energy-efficient HVAC blower motor series. The assembly features an integrated microprocessor-based inverter that dynamically adjusts torque and RPM to maintain constant CFM airflow. It interfaces directly with system thermostats and furnace control boards to execute programmed ramp-up and ramp-down cycles. Rugged internal heat sinking and protective encapsulation shield the sensitive circuitry from moisture and thermal overload in continuous-duty applications.
Key Features:
-
Horsepower Output: Delivers a reliable 1/2 HP rating suited for standard single-phase air handler systems.
-
Voltage Flexibility: Compatible with dual 115V and 230V electrical input configurations for versatile installation.
-
Variable Speed Control: Employs electronic commutation technology for smooth, continuous airflow modulation.
-
Pre-Programmed Firmware: Factory-configured with specific performance profiles tailored for targeted Trane equipment models.
-
Thermal Protection: Integrated circuitry safeguards against overheating, voltage spikes, and locked-rotor conditions.
-
Integrated Module Design: Combines the motor and control inverter into a unified assembly for simplified replacement.
The MOT09262 delivers the reliability and precision required for advanced HVAC variable-speed blower and air handler systems.
