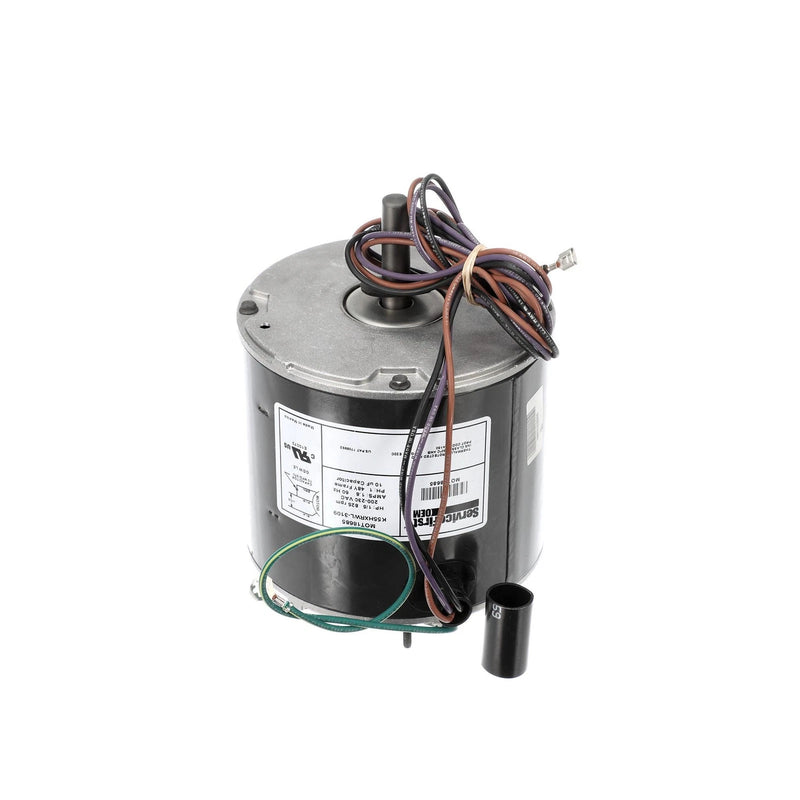

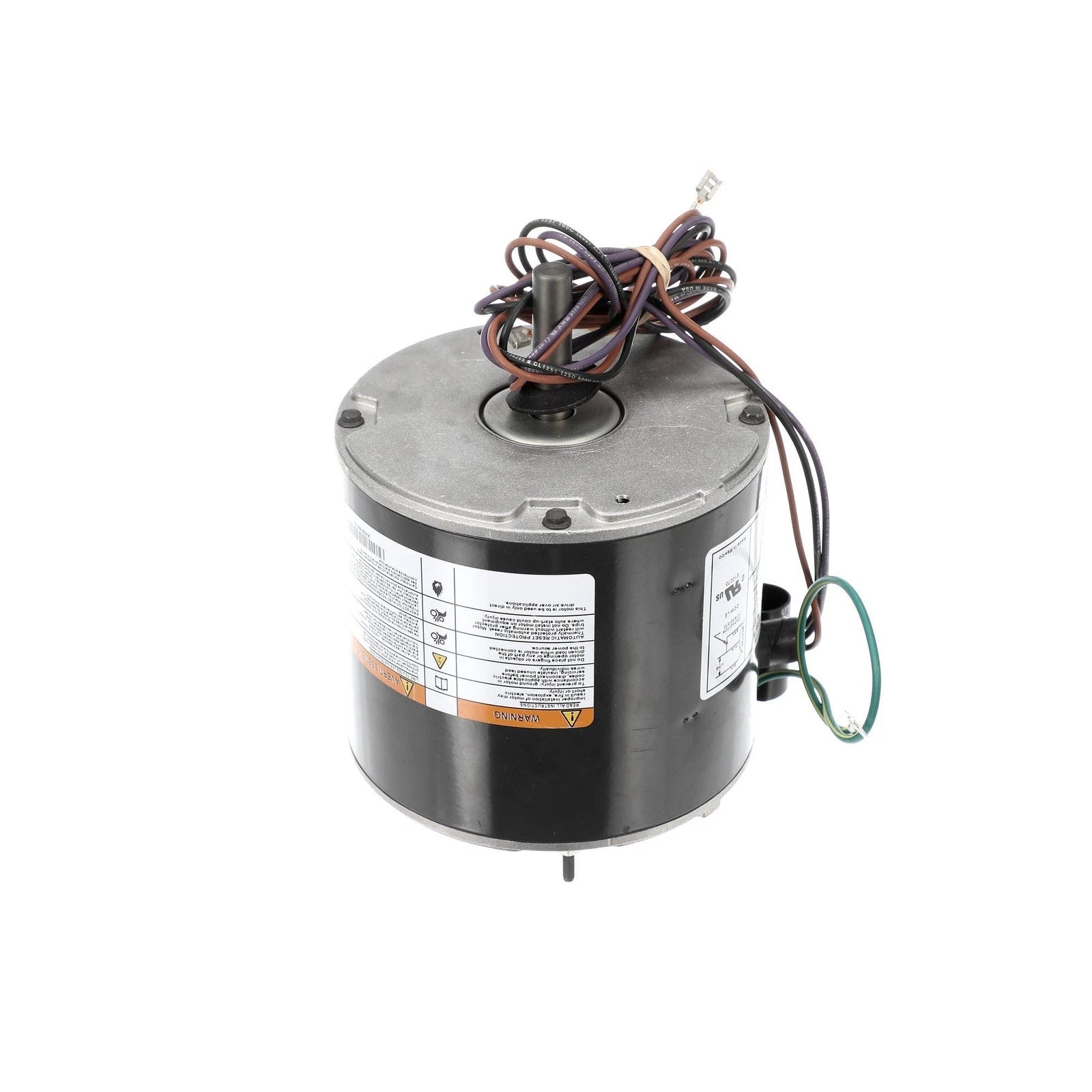

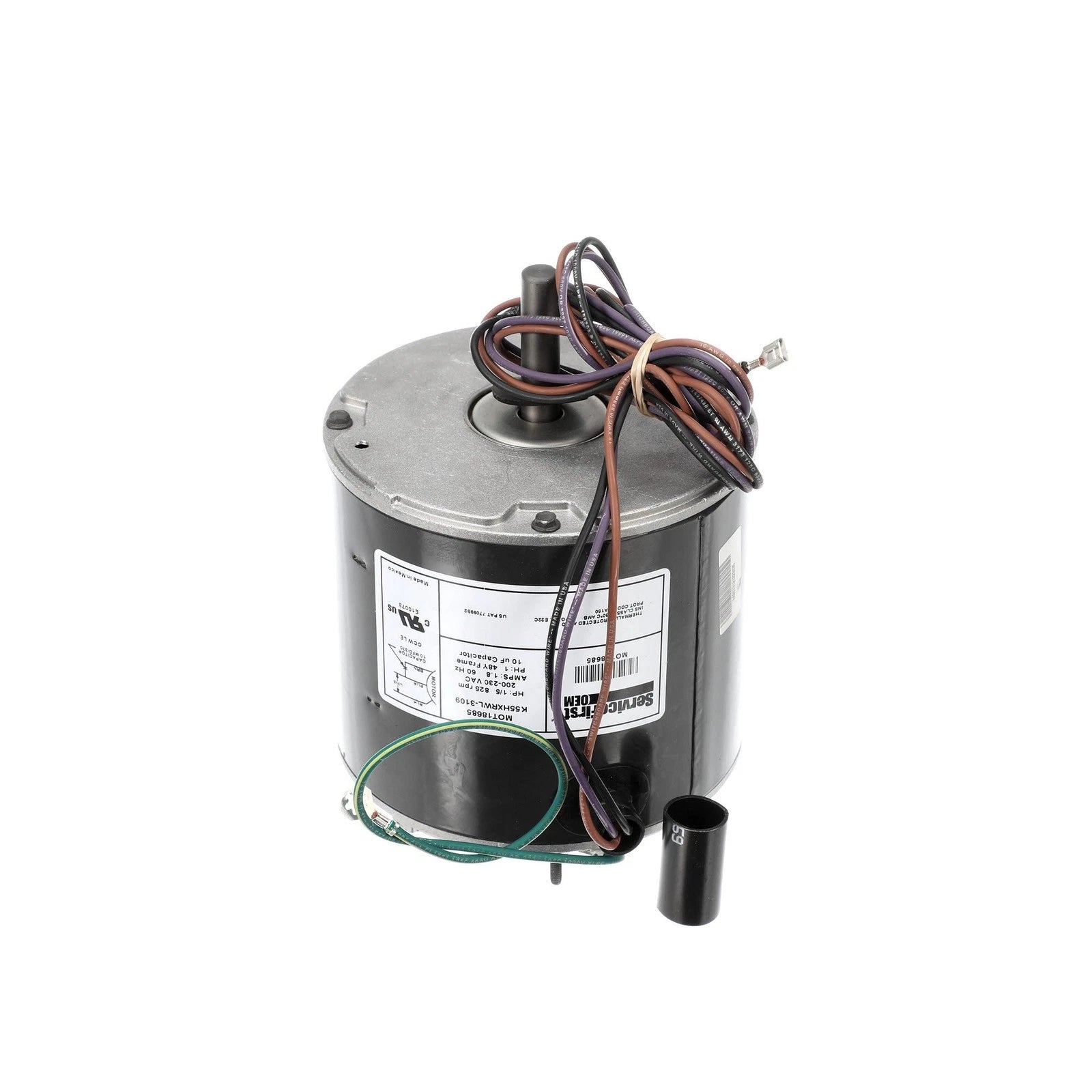

Trane MOT18685 1/5 HP 825 RPM 200-230V Condenser Fan Motor
- Regular price
- $792.00
- Sale price
- $792.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MOT18685
Description
The Trane MOT18685 is a 1/5 HP single-speed condenser fan motor designed for compatible Trane HVAC equipment. It operates at 200–230V and 825 RPM and features a 48 frame with a totally enclosed air-over enclosure for condenser fan applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | HVAC |
| Part Number | MOT18685 |
| Subcategory | Motors |
| Motor Type | Single Speed |
| Voltage | 200–230V AC |
| Frequency | 60 Hz |
| Horsepower | 1/5 HP |
| Phase | 1 Phase |
| Speed | 825 RPM |
| Frame Size | 48 |
| Enclosure Type | Totally Enclosed Air-Over (TEAO) |
| Rotation | CCW Lead End |
| Mounting Type | Belly Band |
| Shaft Diameter | 0.5 in |
| Insulation Class | Class F |
| Replacement For | MOT13693, MOT17917 |
| Weight | 14.40 lbs |
Information About MOT18685
The MOT18685 is a single-phase replacement motor configured for HVAC condenser fan operation. It uses a 48 frame and operates at a single speed of 825 RPM with counter-clockwise rotation at the lead end. The motor has a belly-band mounting configuration, a 0.5-inch diameter shaft, and a 2-inch shaft length. It is listed as a replacement for MOT13693 and MOT17917 where the manufacturer specifies compatibility.
Key Features:
- 1/5 HP Motor: Provides the specified power rating for compatible condenser fan applications.
- 200–230V Operation: Designed for 200–230V AC electrical systems at 60 Hz.
- 825 RPM Speed: Provides single-speed operation at the specified rotational speed.
- 48 Frame: Uses a standard 48-frame configuration for compatible HVAC equipment.
- TEAO Enclosure: Features a totally enclosed air-over design for condenser fan applications.
- Single Phase: Designed for single-phase electrical operation.
- CCW Rotation: Rotates counter-clockwise when viewed from the lead end.
- Belly-Band Mounting: Uses a belly-band mounting configuration for installation in compatible equipment.
The MOT18685 delivers the reliable motor operation required for compatible Trane HVAC condenser fan applications.
