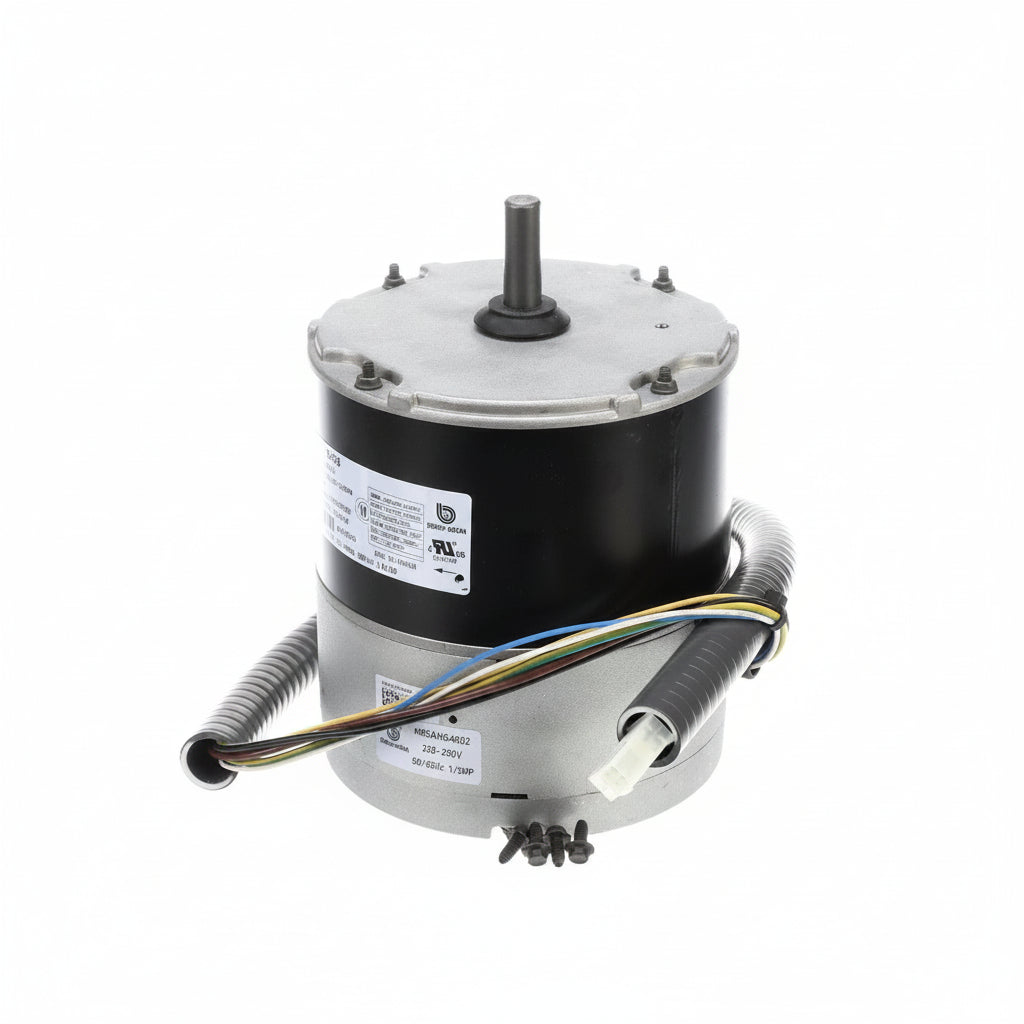

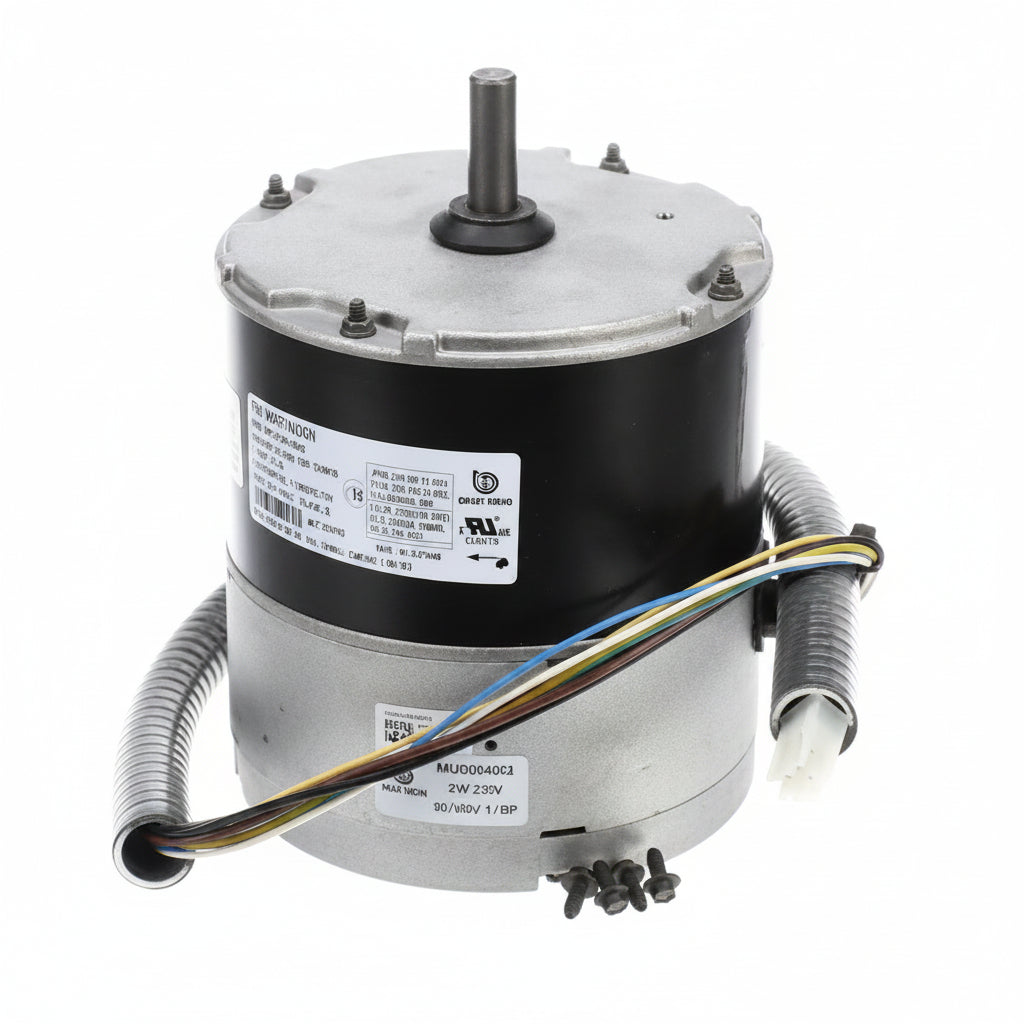

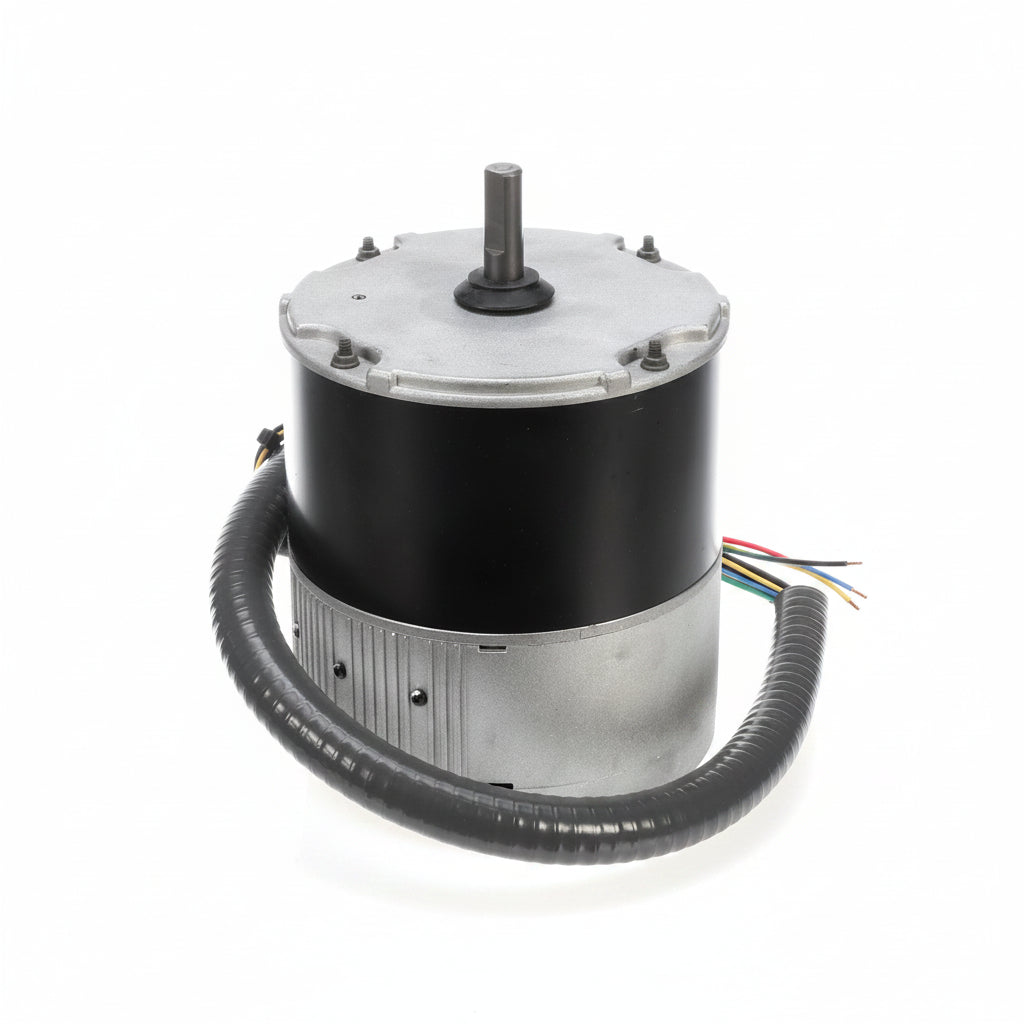

Trane MOT18698 1/3 HP 208–230V ECM Outdoor Condenser Fan Motor
- Regular price
- $1,021.00
- Sale price
- $1,021.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MOT18698
Description
Trane MOT18698 is a 1/3 HP electronically commutated motor (ECM) and module assembly designed for outdoor condenser fan applications in compatible Trane HVAC equipment. It operates on a 208–230 VAC supply and provides variable-speed operation, with published specifications indicating a range of approximately 200–1,200 RPM.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | HVAC Motors |
| Part Number | MOT18698 |
| Subcategory | ECM Condenser Fan Motors |
| Motor Type | Electronically Commutated Motor (ECM) |
| Motor Application | Outdoor condenser fan |
| Horsepower | 1/3 HP |
| Voltage | 208–230 VAC |
| Frequency | 50/60 Hz |
| Phase | 1 Phase |
| Speed Range | Approximately 200–1,200 RPM |
| Number of Speeds | 2 |
| Rotation | CCW / Lead End |
| Shaft Diameter | 0.5 in. |
| Shaft Length | Approximately 2.5 in. |
| Enclosure | Totally Enclosed Air-Over (TEAO) |
| Related Replacement Numbers | MOT12005, MOT13402, MOT13793, MOT14018, MOT14342 |
| Weight | 11.69 lbs |
Information About MOT18698
The MOT18698 is a Trane OEM outdoor ECM motor used in air-conditioning and heat-pump equipment. The assembly combines the motor with its electronic control module for variable-speed condenser-fan operation. It is listed as a replacement for several earlier Trane motor numbers, including MOT12005, MOT13402, MOT13793, MOT14018, and MOT14342. Compatibility is model-specific, and Trane documentation notes that some replacement applications may also require a compatible fan blade.
Key Features:
- Motor Type: Electronically commutated motor (ECM) with integrated electronic control module.
- Power Rating: 1/3 HP for outdoor condenser-fan applications.
- Voltage: Designed for 208–230 VAC operation.
- Speed Range: Variable operation from approximately 200 to 1,200 RPM.
- Frequency: Rated for 50/60 Hz operation.
- Rotation: Counter-clockwise lead-end (CCWLE) rotation.
- Shaft: 0.5-inch shaft diameter for compatible fan assemblies.
- Replacement Use: Supersedes multiple earlier Trane outdoor motor part numbers.
The MOT18698 delivers the reliability and precision required for variable-speed condenser fan control in compatible HVAC equipment.
