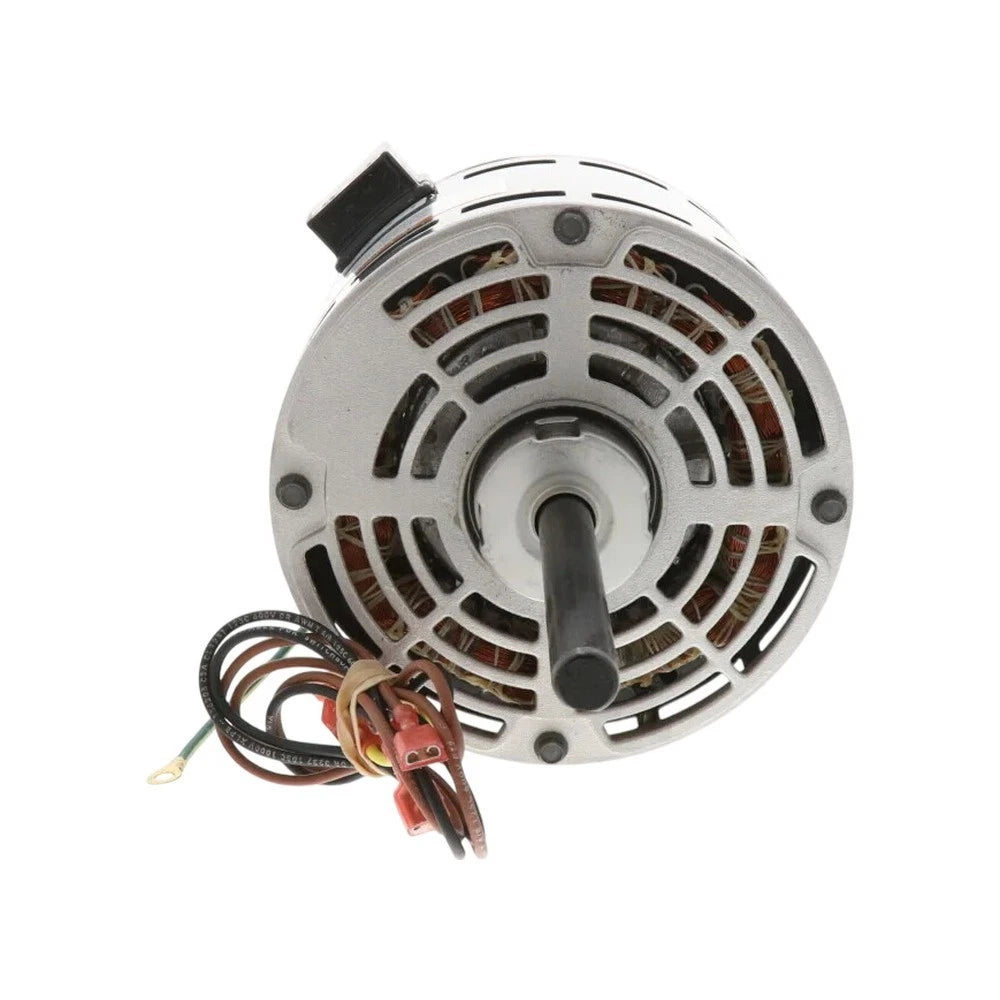

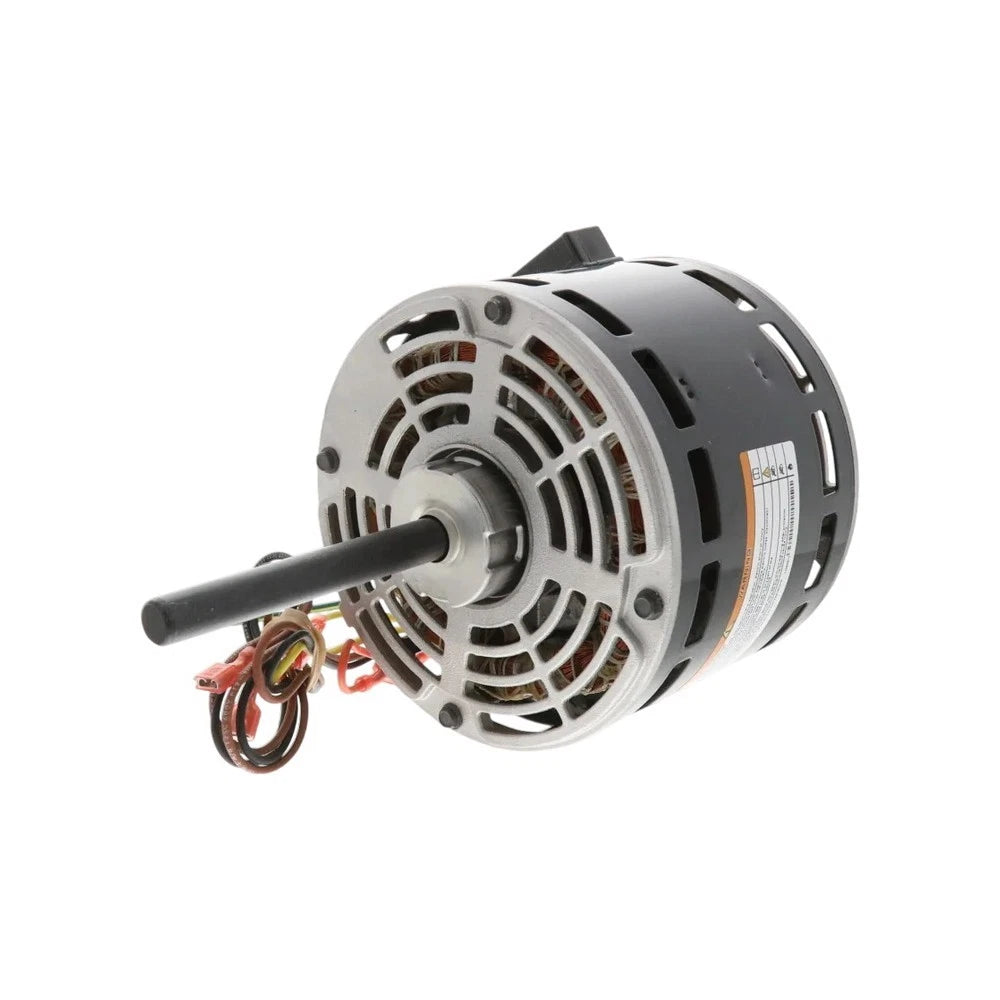

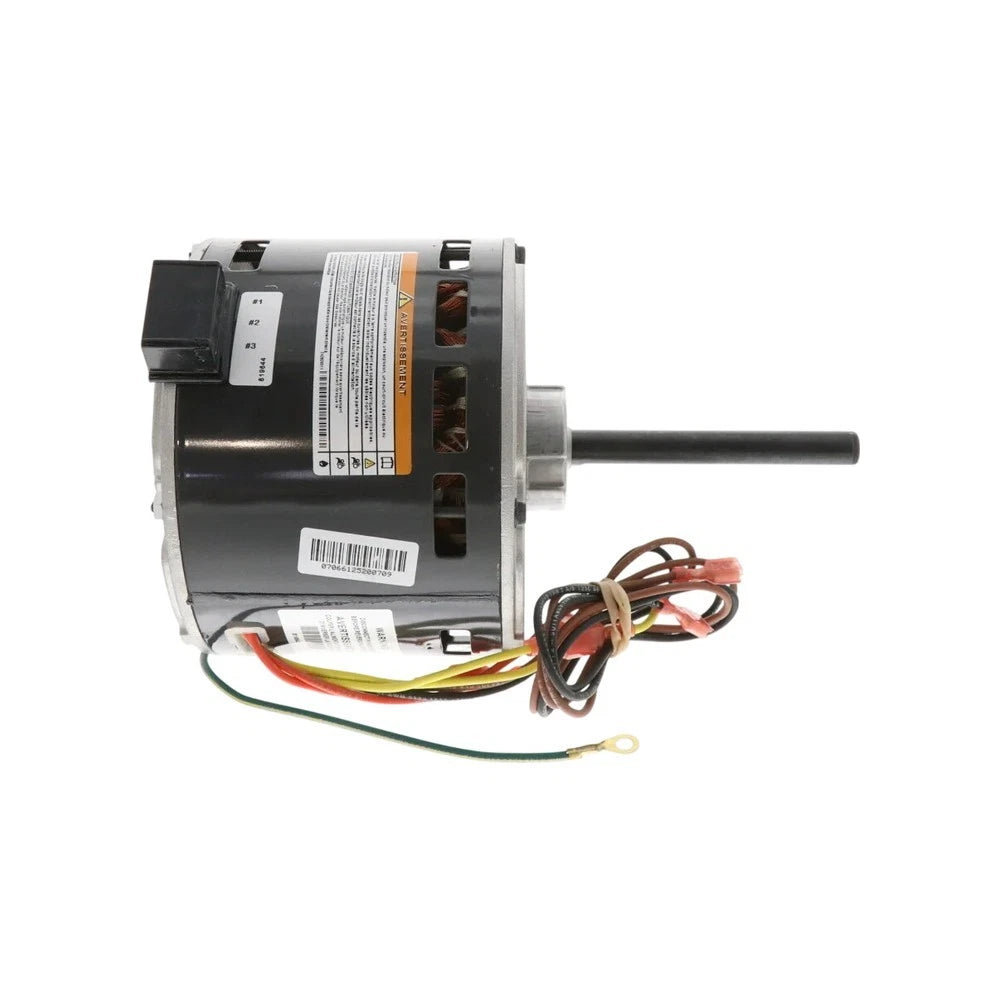

Trane MOT18956 Direct Drive Blower Motor
- Regular price
- $702.00
- Sale price
- $702.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MOT18956
Description
The Trane MOT18956 is a direct drive blower motor designed to circulate air through compatible HVAC heating and cooling equipment. It provides 1/3 HP output on 200–230 V single-phase power, with three selectable speeds for matching the equipment’s airflow requirements.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | HVAC Motors |
| Part Number | MOT18956 |
| Subcategory | Direct Drive Blower Motors |
| Rated Power | 1/3 HP |
| Supply Voltage | 200–230 V AC |
| Phase | Single-phase |
| Frame | 48 |
| Enclosure Type | Open Air Over |
| Number of Speeds | 3 |
| Speed Type | Multiple speed |
| Motor Speed | 1,075 rpm in Trane technical data; 1,080 rpm in product description |
| Rotation | Counterclockwise viewed from lead end; reversible |
| Mounting Orientation | Vertical or horizontal |
| Run Capacitor Requirement | 7.5 µF |
| Shaft Diameter | 1/2 in |
| Shaft Length | 3.94 in |
| Thermal Protector | Included |
| Shipping Dimensions | 13.20 × 7.10 × 6.90 in (L × W × H) |
| Weight | 11.65 lb (5.28 kg) |
Information About MOT18956
The MOT18956 is a 48-frame motor intended for direct connection to a compatible blower wheel. Its Open Air Over enclosure uses surrounding airflow to remove heat from the motor housing. The construction supports vertical or horizontal mounting and incorporates a 1/2-inch-diameter shaft. Reversible rotation, a specified 7.5 µF run capacitor, and an integrated thermal protector define its principal operating and installation requirements.
Key Features:
- Blower Drive Function: Drives the blower wheel to move air through compatible HVAC equipment.
- Motor Output: Provides 1/3 HP for the connected blower load.
- Supply Compatibility: Operates on 200–230 V single-phase power.
- Three-Speed Operation: Provides three selectable speeds to match the equipment’s airflow requirements.
- Reversible Rotation: Uses counterclockwise rotation viewed from the lead end, with provision for reversing direction.
- Mounting Flexibility: Supports vertical or horizontal installation in the specified blower assembly.
- Open Air Over Enclosure: Uses airflow across the motor housing for cooling.
- Thermal Protection: Includes a thermal protector to help protect the motor against overheating.
The MOT18956 delivers the reliability and precision required for blower operation and air circulation in compatible HVAC heating and cooling equipment.
