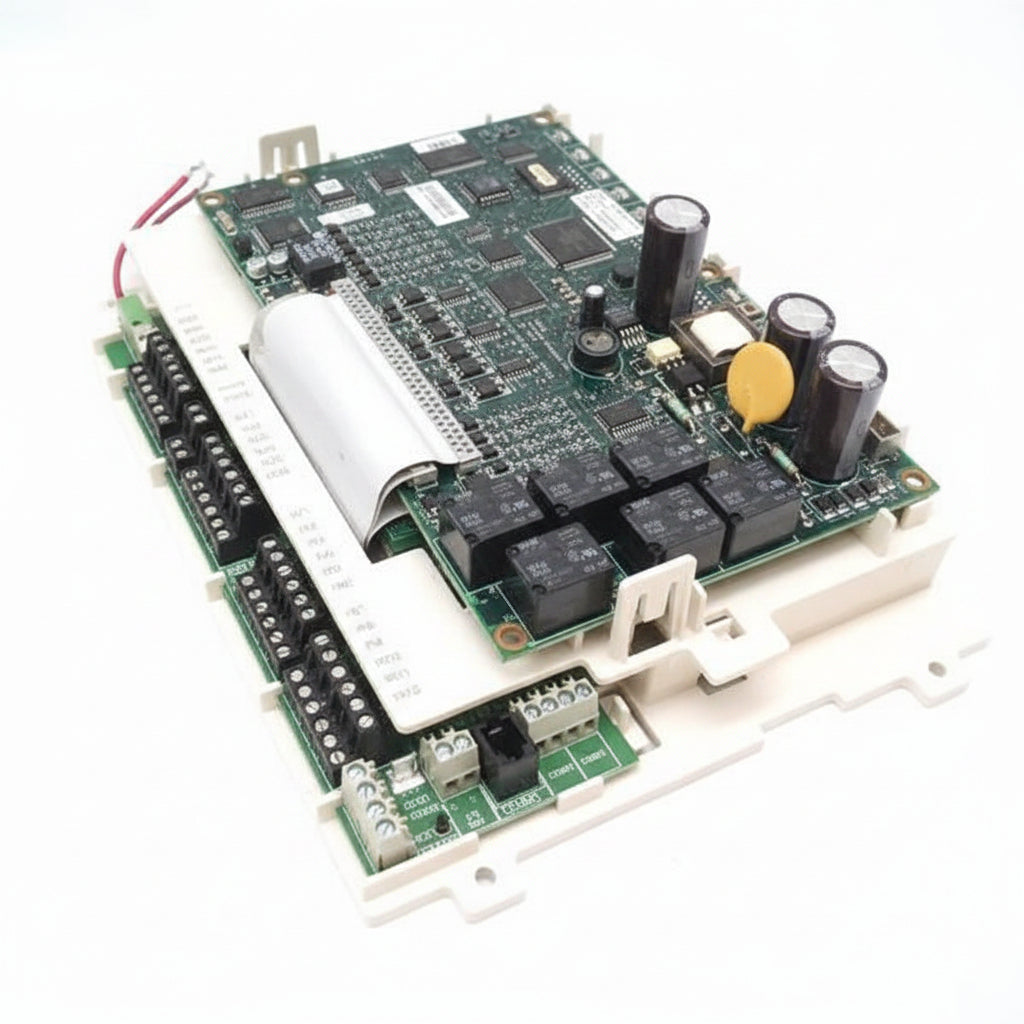

Trane MP580/581 Tracer Programmable HVAC Controller for Building Automation Systems
- Regular price
- $1,222.00
- Sale price
- $1,222.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: MP580/581
Description
Trane MP580/581 Tracer is a programmable direct digital HVAC controller designed for building automation and equipment-level control applications. It supports air handlers, mechanical-room equipment, pumps, boilers, cooling towers, heat exchangers, and supervisory HVAC control while integrating with Trane LonTalk building automation networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | Building Automation |
| Part Number | MP580/581 |
| Subcategory | Programmable HVAC Controllers |
| Product Type | Programmable Controller |
| Application | Commercial HVAC and Building Automation |
| Universal Inputs | 12 |
| Binary Outputs | 6 |
| Analog Outputs | 6 |
| Static Pressure Input | 1 dedicated input |
| Universal Input Signals | Dry contact, 0–20 mA, 0–10 VDC, resistance, thermistor |
| Analog Output Signals | 0–10 VDC or 0–20 mA |
| Communication Protocol | LonTalk |
| Control Profiles | LonMark DAC and SCC |
| Programming | Tracer Graphical Programming |
| Configuration Tool | Trane Rover Service Tool |
| Processor | Motorola MC68332, 20 MHz |
| ADC Resolution | 12-bit |
| DAC Resolution | 12-bit |
| Memory | 512 KB RAM, 2 MB Flash ROM, 256 KB EEPROM |
| Power Supply | 24 VAC or 120/230 VAC depending on configuration |
| Weight | 1 kg |
Information About MP580/581
The MP580/581 is part of Trane’s Tracer programmable controller family, with the MP580 typically factory-installed on compatible Climate Changer air handlers and the MP581 designed for field installation. The controller provides 12 universal inputs, six binary outputs, six analog outputs, and a dedicated static-pressure input for compatible Trane sensors. Its control architecture supports Tracer Graphical Programming as well as LonMark Discharge Air Controller and Space Comfort Controller profiles. Configuration and service are performed through the Trane Rover service tool and the dedicated MP580/581 plug-in.
Key Features:
- Programmable Control: Provides direct digital control for a broad range of commercial HVAC equipment.
- Universal Inputs: Includes 12 inputs configurable for dry contacts, pulse accumulation, 0–20 mA, 0–10 VDC, resistance, or thermistor signals.
- Binary Outputs: Provides six binary outputs with relay contacts rated for compatible 24 VAC loads.
- Analog Outputs: Includes six outputs configurable for 0–10 VDC or 0–20 mA control signals.
- Static Pressure Input: Provides a dedicated input for compatible Trane differential-pressure sensors.
- LonTalk Communication: Supports LonTalk-based networking and LonMark-compatible control profiles.
- Graphical Programming: Supports customized Tracer Graphical Programming for application-specific control sequences.
- Service Interface: Uses the Trane Rover service tool for configuration, programming, and controller access.
The MP580/581 delivers the reliability and precision required for commercial HVAC control, air-handler management, and distributed building automation applications.
