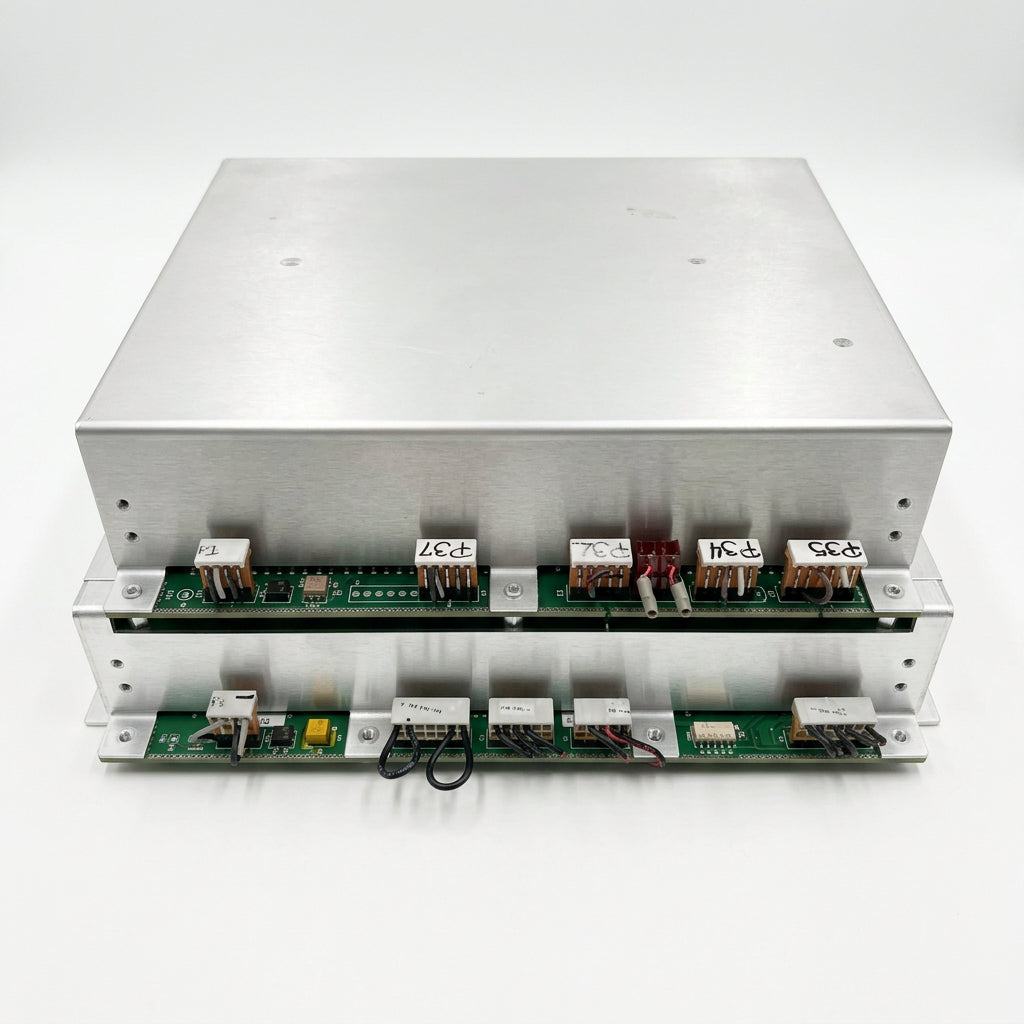

Trane X13650477-13 HVAC Terminal Control Module Board Aluminum Housing

Description

The Trane X13650477-13 control module board governs critical processing and signal management functions within commercial HVAC system architectures. Housed in a heavy-duty aluminum enclosure with integrated terminal connections, this control assembly facilitates precise data exchange across climate control networks. Its rugged structural design protects sensitive processing components against environmental degradation and operational vibration.

Technical Specifications

Information About X13650477-13

The X13650477-13 is part of Trane's industrial HVAC control module series, engineered to deliver stable system regulation across large-scale heating and cooling units. The circuit assembly is enclosed within a high-grade aluminum housing that acts as a natural heat sink while shielding internal electronics from dust and mechanical impact. It connects directly to sensor inputs, actuator drivers, and communication buses through dedicated multi-pin terminal blocks. Built-in circuit protection safeguards processing logic against voltage fluctuations and electrical noise typical of industrial mechanical rooms.

Key Features:

• Aluminum Housing: Built with a rugged aluminum enclosure that provides thermal dissipation and physical protection.

• Terminal Integration: Equipped with accessible terminal connections for clean wiring harness routing and signal stability.

• Processing Reliability: Manages multi-point HVAC data streams to ensure accurate system sequencing and setpoint control.

• Circuit Protection: Features internal electrical isolation to shield sensitive logic components from power surges.

• Compact Mounting Profile: Designed for straightforward installation within primary electrical sub-panels and enclosures.

• Industrial Durability: Weighed at 1.22 kg with solid-state construction designed to endure continuous mechanical vibration.

The X13650477-13 delivers the reliability and precision required for demanding HVAC control system board applications.
