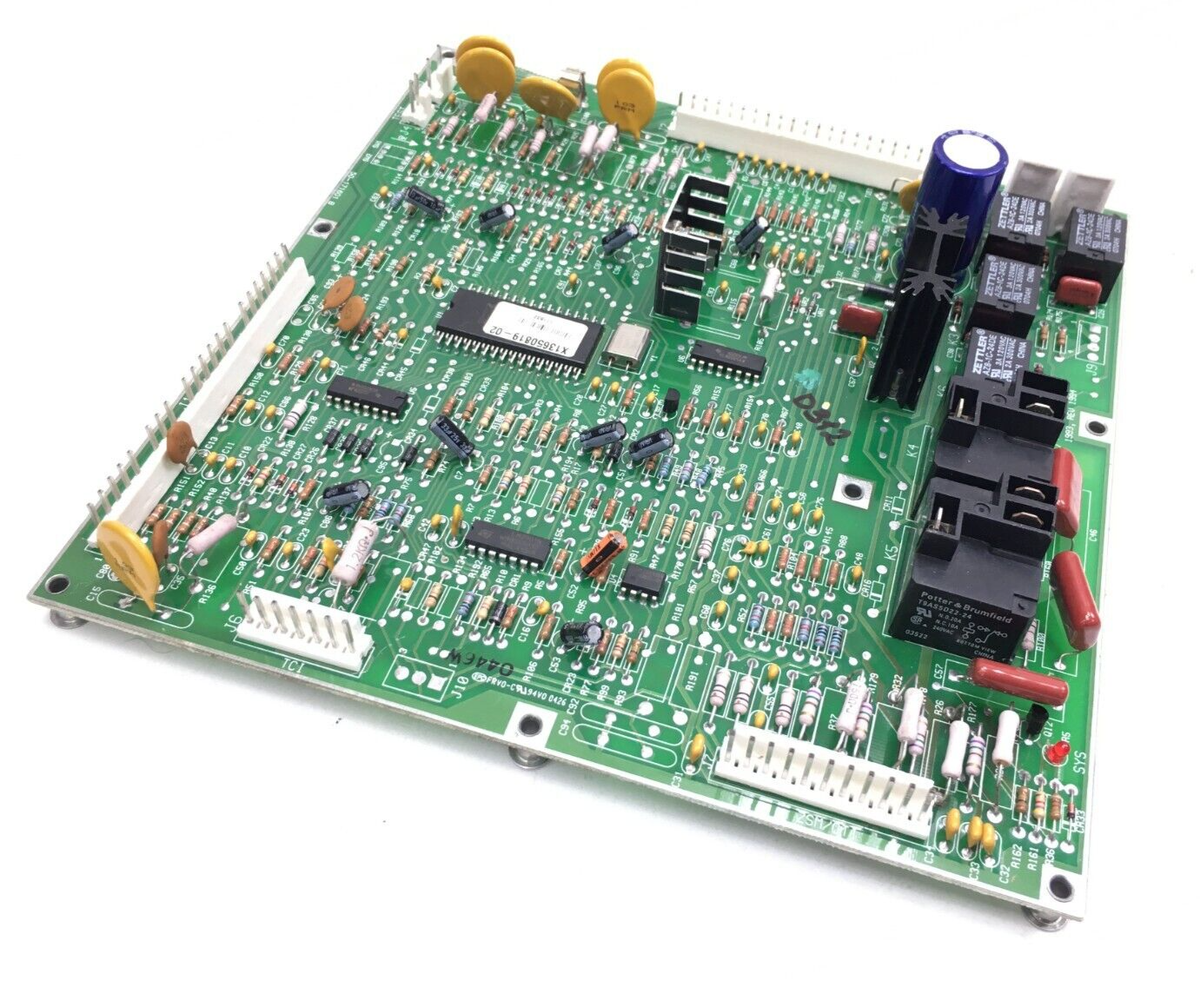

Trane X13650617-02 HVAC Control Circuit Board 6400-0882-01 for RTU Systems
- Regular price
- $285.00
- Sale price
- $285.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: X13650617-02
Description
The Trane X13650617-02 is an HVAC control circuit board used in compatible Trane and American Standard packaged and rooftop equipment. It is associated with the 6400-0882-01 control board and provides control functions for heating, cooling, fan operation, and system monitoring.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Trane |
| Category | HVAC Controls |
| Part Number | X13650617-02 |
| Subcategory | HVAC Control Boards |
| Board Number | 6400-0882-01 Rev E |
| Assembly Number | 6400-0883-02 |
| Application | Packaged / Rooftop HVAC |
| Control Functions | Heating, Cooling, Fan |
| Sensor Inputs | Onboard and Remote Temperature Sensors |
| Outputs | Relay-Controlled Outputs |
| Configuration | Adjustable DIP Switches |
| Diagnostics | Test and Startup Modes |
| Protection | Fuses and Fault LEDs |
| Compatible Brands | Trane / American Standard |
| Weight |
0.99 lb |
Information About X13650617-02BCM-MS/TP
The X13650617-02 is a primary HVAC control board designed for integration into compatible Trane equipment. Available references identify it with Trane board number 6400-0882-01 and assembly number 6400-0883-02. The board provides relay-controlled outputs for furnace, compressor, blower fan, and auxiliary equipment. It also supports temperature-sensor inputs, configurable DIP switches, diagnostic functions, fuses, and fault indication LEDs.
Key Features:
- HVAC Control Board: Provides centralized control for compatible HVAC equipment.
- Heating Control: Supports control of heating system operation.
- Cooling Control: Provides control functions for cooling operation.
- Fan Control: Controls blower fan operation through relay outputs.
- Sensor Inputs: Supports onboard and remote temperature-sensor connections.
- Diagnostics: Includes test and startup functions for system troubleshooting.
- DIP Switches: Provides adjustable configuration for setpoints and system parameters.
- Fault Indication: Includes circuit protection and fault-indication LEDs.
The X13650617-02 delivers the reliability and precision required for HVAC heating, cooling, fan, and system-control applications.
